Dvodelna žaga

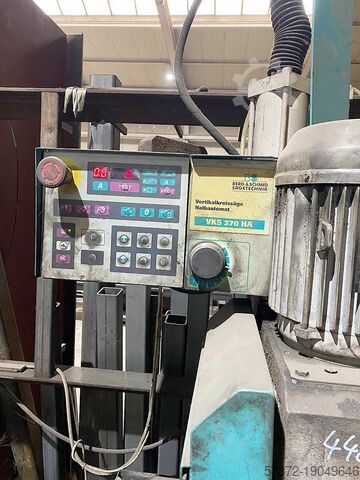

Berg & Schmid VKS 370 HA

Stanje: novo, Saw blade diameter: 370 mm Cutting capacity at 90° (round): 120 mm Cutting capacity at 90° (square): 100 mm Cutting capacity at 90° (rectangular): 180 x 100 mm Working height: 925 mm Saw blade speeds: 15+30 or 30+60 rpm Total power requirement: 1.8 / 2.2 kW Machine weight: approx. 0.44 t Space requirement: approx. 0.8 x 1.1 x 2.1 m SPECIAL PRICE!!! High-performance vertical circular saw, hydropneumatic semi-automatic (20185/20188) · Mitre cuts: left 60° / right 45° · Vise with double clamping arm · Robust prism guide for saw head, dovetail guide adjustable · Chip brush · Automatic cooling · Metal tension wheel for high power transmission · Heavy-duty, robust cast iron table Semi-automatic operation: 1. Clamp material 2. Start saw 3. Fast lowering to material start or cut directly in series mode Codpod Iin Isfx Agtorh 4. Saw band off 5. Raise frame slightly above material 6. Open vise MPS control: · Storage of cut start/end · Display of power consumption, piece count, cutting time, etc. · Adjustable water cooling · Cutting pressure regulator PLEASE NOTE: Price does not include saw blade! (Saw blade price: €204)

Stanje: dober (rabljeno), Leto izdelave: 2002, številka stroja/vozila: 022885001, Offer 24342 Technical Data: - Fully automatic saw with hydropneumatic feed and MPS control - Pre-programmable work cycles with infinitely variable speed regulation - Especially suitable for stainless steel cutting - Workpiece clamping in pneumatic machine vice - Saw blade diameter: 370 mm - Cutting speeds steplessly adjustable: 15 – 70 rpm - Mitre adjustment: right up to 45°, left up to 45° – 60° - Cutting capacity at 90°: round 130 mm, rectangle 180 x 100 mm, square 120 x 110 mm - Mitre cutting at 45°: round 130 mm, rectangle 120 x 100 mm - Maximum opening width of pneumatic machine vice: 160 mm Crsdpfx Agjt N Rk Njteh - Drive: 400 V / 3 kW - Pneumatic connection: 6 – 8 bar - Coolant equipment - Infeed roller conveyor: 1000 mm - Outfeed roller conveyor with stop and digital measuring device: 4000 mm - Required space approx.: W 7500 x H 2050 x D 1100 mm - Weight approx.: 1200 kg

Stanje: dober (rabljeno), Leto izdelave: 2011, From company liquidation: Berg und Schmid VKS 370 HA Year of manufacture: 2011 Semi-automatic 4-meter roller conveyors on both left and right sides Left side stop with digital length measuring system, adjustable via handwheel Cutting capacities with 370mm saw blade: Round: 120mm – Square: 100mm – Rectangle: 180x100mm at 90° At 60°: Round: 110mm – Square: 90mm – Rectangle: 90x100mm Mitre cuts: left up to 60°, right up to 45° Saw blade mount: 40mm Saw blade speed: 15-70 rpm 380 Volts Coolant pump Credowa Ecqspfx Agtsh Semi-automatic operation: 1. Clamp material 2. Start saw 3. Lower frame in rapid feed mode to material start, or for series cuts begin cutting immediately 4. Stop saw band 5. Raise frame just above the material 6. Release the vise
