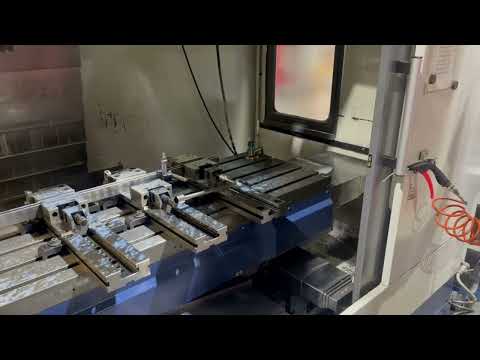

Vertikalni obdelovalni center CNC

YCM Xv 1250 A

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2007, potovalna razdalja osi X: 510 mm, pomik osi Y: 510 mm, pomik po osi Z: 460 mm, proizvajalec krmilnikov: MAZATROL, model krmilnika: Matrix, širina mize: 400 mm, dolžina mize: 500 mm, največja hitrost vretena: 12.000 obr/min, moč vretenovega motorja: 22.000 W, število mest v zalogovniku orodij: 40, število osi: 5, Ta 5-osni Mazak Variaxis 500-5X II je bil izdelan leta 2007. Idealen za kompleksna in natančna obdelovalna opravila, to vertikalno obdelovalno središče ponuja vsestranskost in zanesljivost. Če iščete visoko kakovostne možnosti rezkanja, priporočamo, da razmislite o stroju Mazak Variaxis 500-5X II, ki je na voljo za prodajo. Za več informacij nas kontaktirajte. Pgedpfxsyalk Ho Andjn Dodatna oprema • Transporter za ostružke Prednosti stroja Tehnične prednosti stroja • Os A: -120° / +30° • Os C: 360° Dodatne informacije Stroj je še vedno priključen na elektriko

Stanje: rabljeno, Leto izdelave: 2005, obratovalne ure: 18.950 h, potovalna razdalja osi X: 350 mm, pomik osi Y: 220 mm, pomik po osi Z: 220 mm, Premer žice: 0,1–0,3 mm Samodejno ponovno vdevanje Vodna kopel Obratovalne ure: 18.950 h Hodi osi: X 350 mm, Y 220 mm, Z 220 mm, U 350 mm, V 220 mm Krmiljenje Millenium Leto izdelave: 2005 Pgjdpfx Ajwzyvhendsn

Stanje: dober (rabljeno), TECHNICAL DATA AXES Rapid traverse X, Y: 15,000 mm/min Rapid traverse A, B: 15,000 mm/min Rapid traverse Z1, Z2, E: 18,000 mm/min Rapid traverse C: 90,000°/min Minimum input increment: 0.001 mm Minimum input increment, C-axis: 0.001° MACHINING CAPACITY Max. turning diameter: 20 mm Max. spindle stroke: 205 mm Max. drilling capacity: Stationary: 14 mm; Driven: 8 mm Max. tapping capacity: Stationary: M10 x P1.5; Driven: M6 x P1.0 MAIN SPINDLE Spindle speed: 500 – 10,000 rpm Drive: Spindle drive Main spindle motor: 3.7 / 5.5 kW Main spindle bore: 26 mm SUB SPINDLE Max. clamping diameter: 20 mm Max. part length for forward ejection: 150 mm Max. unclamping length: 75 mm Spindle speed: 500 – 10,000 rpm Sub spindle motor: 2.2 / 3.7 kW Indexing angle: 1°, 15° CONFIGURATION Operating mode: Right-handed Dimensions: 2,700 x 1,400 x 2,400 mm Weight: 3,400 kg SCOPE OF DELIVERY Includes (not exhaustive): Control: Fanuc Fire extinguishing system: Siemens Oil mist separator: Donaldson Transformer Hydraulic unit Pgjdpfxju Uic Tj Andsn Parts conveyor Chip conveyor Bar feeder: LNS Tool holder Exact scope of delivery as per photos We do not guarantee the correctness, completeness or currentness of the information provided.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2005, A Hennecke HK135 high-pressure polyurethane foaming system with four 25,000-liter mixing tanks, one casting robot, and two release agent robots is available. Performance: 225 t/24h, mold carriers: 42, mixing positions for additive blending: 10, mixing head type: MQ, max. working pressure: 180 bar, pressure vessel: 330 bar. Foam types: rigid foam, rigid integral foam, semi-rigid integral foam, semi-rigid fill foam, cold-curing flexible foam, hot-curing flexible foam. Multiple mold foaming is possible. Complete documentation available. On-site inspection is possible. Pgjdpettbd Njfx Andjn

Stanje: rabljeno, Leto izdelave: 1987, x-travel: 500 mm y-travel: 380 mm z-travel: 300 mm Control: FANUC Total connected load: 12 kW Machine weight approx.: 2,300 kg Space requirements approx.: m S T A M A (FANUC) Vertical 3-axis CNC machining center Model: MC 010 Year of manufacture: 1987 # KMH 010 1110 Working area: Longitudinal travel X-axis: 500 mm Vertical travel Z-axis: 300 mm Cross travel Y-axis: 380 mm Table size / working area: 650 x 380 mm Table load capacity approx.: 200 kg Installation height between table/spindle: 240–540 mm Distance to spindle center approx.: 350 mm Tool holder: SK 30 Spindle speeds: 1,500 – 6,000 rpm Feed rates / rapid traverse max.: up to 1,000–4,000 mm / 15 m/min Drilling/milling capacity in steel: 20 mm / 130 cm³ Milling capacity in aluminum: 500 cm³ AC main drive: approx. 3.7 / 5.5 kW Total drive power: approx. 12 kW – 380 V – 50 Hz Weight: approx. 2,300 kg Accessories / special equipment: • Original FANUC control with monitor, all modern subprograms, fault diagnostics, electronic handwheel, RS 232, easy and quick to program directly at the machine, and much more. • Vertical turret head with 10 tool stations, ISO 40, fast tool changeover time approx. 7 seconds chip-to-chip • Programmable rotary table mounted on the machine table (not an additional CNC axis), excellently suited as an indexing table, hydraulic, type RST 2 Pgodpfot Hw H Eox Andsn • Separate coolant unit • Various tool holders, some with tools Ideal machine for productive drilling, tapping and milling in steel and aluminum. Condition: Good to very good – demonstration under power possible Delivery: Immediately from stock, loaded free onto truck Payment: Net – upon receipt of invoice We look forward to your order. We constantly stock a wide range of CNC machining centers of all types – please inquire for alternatives!

Stanje: dober (rabljeno), Leto izdelave: 1998, Max. pitch circle diameter external gearing: 300 mm Max. pitch circle diameter internal gearing: 300 mm Max. outside diameter of workpiece (fixture): 450 mm Module - max.: 6 Max. gear width: 100 mm Max. helix angle (with tool Ø 125 mm): +/- 45° Stroke rate - infinitely variable: 130 - 1300 strokes/min Workpiece weight: 1000 kg Minimum distance table surface - tool spindle: -55 / +300 mm Maximum distance table surface - tool spindle: 200 mm Maximal distance table surface - tool spindle: 350 mm Manual column lateral displacement: +/- 25 mm Manual swivel angle of the tool spindle: +/- 0.5° Max. tool speed: 15 rpm Max. workpiece speed: 27 rpm Max. tool diameter: 7 in Voltage: 400 V Frequency: 50 Hz Max. mains current: 70 A Total power requirement: 48 kW Machine weight approx.: 11 t Space requirements approx.: 4.27 x 3.11 x 2.87 m Main spindle taper: SK 45 Table bore: 40 mm Control: Siemens Sinumerik 840 C Gear shaping machine: Gleason PFAUTER Mod. PSA 300 Pedpfxovu E Nus Andegn CNC modular gear cutting machine with shaping cutter for the machining of external and internal cylindrical gears, with straight or helical involute gearing as well as any other profile achievable via generating or form shaping processes. The machining cycle is controlled by a CNC unit, equipped with dedicated gear cutting software. Application scope --> The PSA 300 is designed for manufacturing: - Gears with straight external toothing - Gears with straight internal toothing - Gears with external helical gearing - Gears with internal helical gearing

Stanje: rabljeno, Leto izdelave: 1995, TORNADO 200, letnik 1995 Krmilni sistem: GE FANUC Series O-T Podpfx Asua Uyujndegn Maksimalni premer obdelave: 254 mm Maksimalna dolžina struženja: 400 mm Pomiki osi X: 215 mm, Z: 400 mm Maksimalna hitrost vretena: 3500 obr./min Moč vretenskega motorja: 18,5 kW Konjiček Orodni sistem: VDI 40 Orodna glava: 12 pozicij Dimenzije stroja dolžina: 2455 mm širina: 1420 mm teža: 3000 kg

Stanje: novo, - Shaft diameter 50 mm - The upper roller is hydraulically operated - Three driven rolls - Digital display - Can be used horizontally / vertically - Foot switch Pgedpfx Aogg N Twenden - Emergency stop - Documentation - 400V

Stanje: zelo dobro (rabljeno), Leto izdelave: 2008, potovalna razdalja osi X: 3.000 mm, pomik osi Y: 825 mm, pomik po osi Z: 1.100 mm, hitro pomikanje X-os: 48.000 m/min, hitri pomik os Y: 80.000 m/min, hitri pomik na osi Z: 48.000 m/min, širina mize: 835 mm, dolžina mize: 3.500 mm, obremenitev mize: 3.500 kg, 3-Axis Machining Center MATEC - 40 HV MACH-ID 9178 Manufacturer: MATEC Model: 40 HV Control: Heidenhain iTNC530 Year of manufacture: 2008 X-axis travel: 3000 mm Y-axis travel: 825 mm Z-axis travel: 1100 mm B-axis: -3° to +105° Psdpfx Anewyv Nzodogn Table length: 3500 mm Table width: 835 mm Table load capacity: 3500 kg X-axis feed rate: 48,000 mm/min Y-axis feed rate: 80,000 mm/min Z-axis feed rate: 48,000 mm/min Tool holder: HSK 100 ISO/BT/MK Spindle power: 37 kW Spindle speed: 8,000 rpm Tool changer: 40 positions Internal coolant supply: 25 bar Number of controlled axes: 4 Chip conveyor: Yes Coolant system: Yes Length: 8,000 mm Width: 3,800 mm Height: 3,800 mm

Stanje: dober (rabljeno), Leto izdelave: 2014, Technische Daten sind auf den Fotos ersichtlich. Die per Hand gezeigten Teile sind nicht im Lieferumfang enthalten. Pgodpfxoufp Svo Andsn
