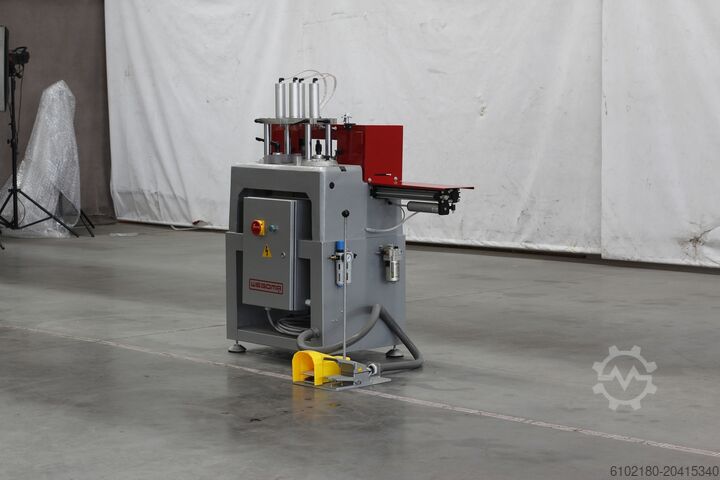

Stroj za čelno rezkanje

Wegoma AKF125P

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2006, Power: 1.5 kW, materials: plastic/aluminium, intended use: welding and processing operations, operating pressure: 7 bar, machine dimensions (X/Y/Z): approx. 1500 mm / 1500 mm / 1800 mm, weight: approx. 150 kg. Accessories included. On-site inspection possible. Fgsdpfxsukhz Io Abtsc

Stanje: novo, Leto izdelave: 2024, Système automatique de mesure de longueur et de positionnement pour toutes les scies à tronçonner STROMAB ainsi que pour toutes les machines similaires d’autres fabricants. Il sert à la fois de butée et au positionnement des pièces. Composé de: Profilé en aluminium 105 x 90 mm, anodisé Entraînement par courroie crantée 32 mm, renforcée avec fil d’acier Moteur pas à pas 6 Nm, multi-tension 115-230 V – 50/60 Hz Précision de répétition +/- 0,1 mm Vitesse de positionnement 60 m/min. Commande Type SMART 7 avec écran tactile 7 pouces Mode d’usinage absolu et incrémental Fsdpjxraucjfx Abtegc 8 valeurs standards préréglées 2 versions logicielles avec différents niveaux d’optimisation optionnellement disponibles. ZM 415 – Longueur de travail utile 4.500 mm ZA333 – Table à rouleaux 4.500 x 280 mm, diamètre rouleaux 32 mm ZA341 – Support frontal 4.500 x 260 mm ZA373 – Câble de verrouillage pour scie à tronçonner existante

Leto izdelave: 2012, stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, - Leistung (kW): KFB 353 = 1,5 - Spannung (V): 400 - Luftdruck (bar): 7 - Luftverbrauch (l/min): mind. 250 - Drehzahl der Welle (min⁻¹): KFB 353 = 12.000 - Maximale Werkstückquerschnitt WxH (mm): 190 x 111 - Fräsbereich L x B (mm): 300 x 130 - Frästiefe (mm): 200 Fjdpewzivdsfx Abtogc - Maschinenabmessungen L x T x H (mm): 3.500 x 820 x 1.650 - Gewicht (kg): ca. 420 - Bearbeitbares Material: KFB 353 = PVC- und Aluminiumprofile

Stanje: rabljeno, Leto izdelave: 2022, Double Electronic Mitre Saw – PERTICI 500TS / 500TS-22 Double-head electronic mitre saw by PERTICI INDUSTRIES, engineered for high-precision cutting of PVC profiles and light alloys. The machine features a fixed left head and an automatically positioned right head with electronically controlled linear and angular movement. Ideal for professional production of windows and door frames. Key features - Fully automatic double head - Movable right head with automatic positioning - Automatic head rotation: - 90° / 45° (500TS) - 90° / 22.5° (500TS/22) - Programmable electronic control - 15” TFT Touch Screen Monitor - USB and Ethernet ports - Windows CE / Windows Embedded operating system - Cutting list optimization - Automatic profile height correction - Option to operate with a single head - Full pneumatic safety guards - Two-hand safety control for cutting Processable materials - PVC - Plastics Fsdoy Rl Syspfx Abtsgc - Light alloys / aluminium Cutting capacity Available lengths: - 4,000 mm - 5,000 mm - 6,000 mm Maximum cutting length: - up to 6,100 mm - Blade Ø 500 mm (optional Ø 520 mm) Automatic cutting angles: - 90° - 45° - 22.5° (TS/22 version) Technical data - Number of blades: 2 - Motor power: 4.4 kW each - Blade speed: 2,800 rpm - Power supply: 400 V three-phase - Air pressure: 6.5 – 8 bar Weight: - approx. 1,670 to 1,910 kg Blade peripheral speed: - up to 76.2 m/s Equipment - Pneumatic horizontal and vertical clamps - Side roller supports - Full cutting area guards - Label printer configuration - 15” touch screen on Windows platform - Profile thickness gauge (electronic profile thickness detection device) – see photo #7 - Central anti-deflection profile support – see photo #8

Stanje: zelo dobro (rabljeno), Complete PVC Production Line – URBAN AKS 3900 Two-Head Automatic Welder + URBAN SV 305 Automatic Corner Cleaner – Year 2006 Professional URBAN line consisting of the AKS 3900 two-head automatic welder and SV 305 automatic corner cleaner, ideal for manufacturing PVC window and door frames. --> URBAN AKS 3900 Two-Head Automatic Welder Year: 2006 Professional automatic welder designed for high-precision welding of PVC profiles, with angular processing from 30° to 180°. The machine ensures precise welds with limited bead size and excellent operational reliability. Thanks to automatic head approach and fully adjustable processing parameters, it enables fast and efficient production cycles. Main Features - 2 automatic welding heads - Angular welding from 30° to 180° - Automatic head movement system - Electronic temperature adjustment - Welding time and pressure control - Two-hand operation with integrated safety systems - Adjustable profile supports - Independent thermostats - Controlled heating elements - CE-compliant safety devices Fgedpfjy R Tvysx Abtec - User manual available Processing Capacity - Profile height: 30 – 130 mm - Maximum profile width: 140 mm - Useful welding length: 440 – 2500 mm - Production capacity: approx. 200 welds / 8 hours Technical Data - Installed power: 3 kW - Power supply: 230/400 V – 50/60 Hz - Working pressure: 8 bar - Air consumption: approx. 36 l/cycle - Weight: approx. 550 kg - Sound level: 67 dB(A) --> URBAN SV 305 Automatic PVC Corner Cleaner Year: 2006 Automatic PVC corner cleaner – URBAN SV 305 Automatic machine for cleaning and finishing weld seams on PVC frames and profiles. The URBAN SV 305 enables complete processing of welded profiles, including cleaning of surfaces, outer corners, inner folds, and gasket grooves—even on acrylic-coated profiles. With its automatic profile recognition system and intuitive SPS control, the machine ensures high precision and ease of use. Main Operations - Trimming of top and bottom weld seams - External corner milling using carbide cutters - Cleaning of top and bottom inner folds - Processing of internal and external gaskets - Drilling of gasket grooves - Beveling operations Equipment - Turret for 3 tool groups - Cleaning knives - Adjustable milling unit - Top and bottom drills - Adjustable pneumatic system - SPS operator panel - Soft start and electronic motor brake - User manual available Processing Capacity - Profile height: 30 – 150 mm - Profile width: 40 – 145 mm - Minimum window size: approx. 210 mm Technical Data - Spindle/milling speed: 2800 rpm - Installed power: 1.7 / 2 kW - Power supply: 230/400 V – 50/60 Hz - Working pressure: 7 – 8 bar - Machine weight: approx. 530 – 550 kg - Sound level: 78 dB(A) Operative line, ideal for manufacturers of PVC frames seeking a complete, reliable, and ready-to-use solution.

Stanje: novo, Leto izdelave: 2025, Funkcionalnost: popolnoma funkcionalen, izvrtina žagine plošče: 40 mm, Oprema: dokumentacija / priročnik, Krožna žaga za vzdolžne in poševne reze Tip: ZS 170N Motor: 400 V / 2,0 kW Hitrost vrtenja: 3500 obr/min Dolžina reza: 410 mm (pri 90°) Višina reza: 170 mm (pri 90°) Območje poševnih rezov - horizontalno: 45°-90°-25° Območje poševnih rezov - vertikalno: 90°-45° (levo) Premer žaginega lista: 420 mm Premer odsesovalnega nastavka: 100 mm Teža: 120 kg Fgjdpfxjypwhpj Abtec

Stanje: zelo dobro (rabljeno), Leto izdelave: 2001, največja hitrost vretena: 12.000 obr/min, Copy router Power (kW): 1.5 Voltage (V): 400 Operating pressure (bar): 7 Spindle speed (min⁻¹): 12,000 Max. workpiece cross-section W x H (mm): 200 x 100 Milling area L x W (mm): 315 x 130 Plunge depth (mm): 200 Machine dimensions L x W x H (mm) KF 347: 1,260 x 820 x 1,650 Weight (kg): approx. 350 Fodpetqytiofx Abtogc

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2000, Klopka za kljuke, vrtalni stroj za okenske kljuke, kopirni stroj Fedpeynwbtsfx Abtogc

Stanje: dober (rabljeno), Leto izdelave: 2009, številka stroja/vozila: 9155, Offer 24245 Technical Data: - Pneumatic feed of the milling unit - Working table height adjustable via handwheel - Horizontal and vertical material clamping Fodpfstq Takex Abtegc - Cutter diameter up to 300 mm - Max. profile height: 190 mm - Max. milling depth: 110 mm - Max. milling length: 400 mm - Angle-adjustable fence, left and right: 20° – 90° – 20° - Milling spindle speed: 2,800 rpm - Drive: 400 V / 2.2 kW - Compressed air connection: 6 – 8 bar - Air consumption per working cycle: approx. 10 l - Digital display (ELGO) for material cross stop - Pneumatic profile clamping - Spray system - Footprint: approx. W 1100 x H 1500 x D 700 mm - Weight: approx. 300 kg

Leto izdelave: 2004, stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Elumatec AKS 134 Notching Saw 2004 – Visoko precizno zabrtvljivanje za fasadne stijene, krovne prozore i zimske vrtove Proizvođač: Elumatec Model: AKS 134 Godina: 2004 Stanje: Vrlo dobro Dostupno odmah: Elumatec AKS 134 stroj za zabrtvljivanje aluminijskih profila, proizveden 2004. godine, u odličnoj kondiciji. Ovaj robusni, njemački stroj specijalno je konstruiran za precizno zabrtvljivanje aluminijskih profila i namijenjen je proizvodnji fasadnih stijena, zimskih vrtova, krovnih prozora, kao i zahtjevnih arhitektonskih aluminijskih sustava. Model AKS 134 koristi sustav s dva lista pile — vertikalni i horizontalni — što omogućuje izuzetnu fleksibilnost, precizne kutove i sigurnost u radu. U kombinaciji s digitalnim prikazom kuta, hidro-pneumatskim napajanjem i automatskim ciklusom rezanja, ovaj stroj je vrhunski izbor za profesionalne prerađivače aluminija. 🛠️ Glavne tehničke specifikacije: 🔻 Donja vertikalna jedinica pile: Promjer lista pile: 550 mm Raspon zakretanja: +45° prema naprijed do -60° prema natrag Maksimalna visina reza: 210 mm Snaga motora: 3 kW (s kočnicom motora) Brzina: 2.800 o/min Ručno podešavanje nagiba s digitalnim prikazom 400V, 3~, 50Hz 🔺 Gornja horizontalna jedinica pile: Promjer lista pile: 500 mm Raspon zakretanja: +55° dolje do -60° gore Maksimalna dubina zabrtvljenja: 190 mm Snaga motora: 3 kW (s kočnicom motora) Brzina: 2.800 o/min Putovanja pile: do 830 mm Ručno podešavanje nagiba s digitalnim prikazom 400V, 3~, 50Hz ⚙️ Značajke stroja: Dva lista pile za složene i fleksibilne rezove Obradak je fiksiran – pomiču se samo jedinice pile, što povećava preciznost Istodobno podešavanje visine vertikalnog lista putem ručnog kotača (s analognim očitanjem) Digitalni prikaz kuta za obje pile i zakretnu stražnju vodilicu Ručno podesiv pomoćni stol Pneumatsko stezanje horizontalno i vertikalno Automatski ciklus rezanja na 90° s dvoručnom sigurnosnom kontrolom za rezove pod kutem Hidro-pneumatski pomak pile za ravnomjerno i glatko rezanje Dovod komprimiranog zraka: 7 bara (35–45 L po ciklusu) 📏 Dimenzije & težina stroja: Površina: 3000 × 1420 × 1600 mm Težina: 1.250 kg 🏗️ Idealno za: Proizvođače aluminijskih fasada i stijena Proizvođače krovnih prozora i zimskih vrtova Precizne aplikacije zabrtvljivanja aluminija Radionice koje trebaju višekutno zabrtvljivanje u velikim serijama 🧰 Pouzdan, precizan i robustan, Elumatec AKS 134 je dokazani alat u industriji arhitektonskog aluminija. Elumatec AKS 134 na prodaju Stroj za zabrtvljivanje aluminija Irska Stroj za rezanje zabrtvljenih otvora za fasadne stijene Elumatec pila za fasadne sustave Pila za zabrtvljivanje aluminijskih profila Elumatec AKS 134 tehnički podaci 550 mm pila za zabrtvljivanje Pila za dvostruke rezove Rabljena Elumatec oprema Pila za izradu aluminijskih konstrukcija *Napomena: Tehnički podaci su navedeni u dobroj vjeri, ali nisu jamstvo* Fgjdpfsxyupkox Abtjc
