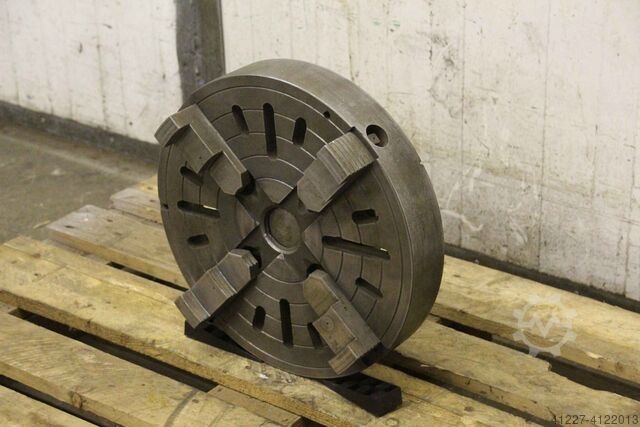

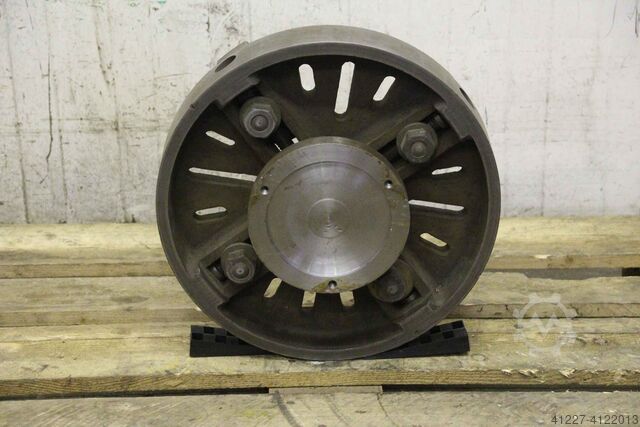

Prednja plošča

unbekannt Ø 415 mm

Leto izdelave: 1990, Stanje: dober (rabljeno), CNC 4th Axis Dsdpfsgabu Usx Aa Hjwf Make: NIKKEN Type: CNC-200 Year: 1990 with tailstock and base plate.

Stanje: rabljeno, številka stroja/vozila: 7979, Table diameter: 400 mm Table with 8 T-slots: 12 mm Overall height: 175 mm Required space: 600 x 450 x 175 mm Weight: approx. 100 kg Dsdpjb Ez R Ujfx Aa Howf

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 1984, Stroj je bil moderniziran leta 2015. Maks. zmogljivost vrtanja: 20 mm Orodni stožec: 2 MK Dodpfegqukfjx Aa Howf Število obratov: 355/710/1400/2800 obr/min Hod vretena: 100 mm Razpon vretena: 210 mm Nastavitev vretenaste glave: 250 mm Maks. razdalja vreteno–miza: 445 mm Velikost mize: 340x280 mm Priključna moč: 1,1 kW Teža: 0,165 t Potrebni prostor DxŠxV: 0,6 x 0,5 x 1,3 m

Leto izdelave: 2021, Stanje: novo, Retrofitting kit for 2-axis digital readout consisting of: FAGOR digital display with scales for Y and Z axes. Matching scale brackets for HF50 Dedpfx Ashcn Efja Howf Bracket for mounting the display behind the machine (see picture)

Stanje: rabljeno, številka stroja/vozila: 053051, Grinding area: 200 x 25 mm Electrical connection: 380 V, 0.5 kW Djdsbfp Ixopfx Aa Hewf Required space: 550 x 450 x 1100 mm Weight: 95 kg

Stanje: rabljeno, Jaw width 160 mm Clamping force 24 kN Machine weight approx. 31 kg Mechanical centric vise, low-profile design With prism jaw and standard jaw, SBO size 4 Dodpsd Ih N Rsfx Aa Hswf Including rotary plate with degree graduation

Stanje: rabljeno, številka stroja/vozila: 2414-0075 bzw. 2314-0703, Table clamping surface: 520 x 1000 mm 6 T-slots: 16 mm Slot spacing: 90 mm Clamping plate can be rotated horizontally to the right and left by: 45° each Tiltable to/from the machine by: 15° each Swivels to the right and left by: 15° each Permissible load, movable: approx. 1000 kg Permissible load, fixed table: approx. 1500 kg Dwjdpfeb Hmbpjx Aa Hjf Weight: 376 kg Suitable for milling machines DECKEL: FP 3 L; FP 3 LG; FP 3 LV

Stanje: kot nova (razstavni stroj), Leto izdelave: 2020, obratovalne ure: 10 h, Compact precision rotary table, suitable for single-part or small-batch production in laser welding and precision mechanics. Both horizontal and vertical configurations are possible. - Made in Germany - It is particularly suitable as a 4th axis on engraving and milling machines for engraving, laser processing, drilling, slotting, keyway milling, or for use on a tool or surface grinding machine. Precision worm gear with 50:1 reduction ratio. The worm and worm wheel are manufactured in-house, ensuring maximum adjustment precision. The set is fitted with four ball bearings, is backlash-free, yet adjustable. The robust drive spindle is equipped with a faceplate, diameter 108 mm, with an internal taper MK1, and a through-bore of 10.5 mm or optional M12 internal thread. Electronic control is supplied as a handy module with foot switch for forward/reverse operation, including power supply and emergency stop. The speed can be set between 0–50 rpm according to the scale. Speed can be adjusted on the fly during operation. The direction of rotation is selected with the foot switch: the right switch rotates clockwise, the left switch rotates counterclockwise. Pressing the foot switch accelerates the axis to the set speed; releasing the switch slows the axis back down. Ideal for laser welding with Hermle, Trumpf, Haas, Maho, Deckel FP1, G1 or Gravograph machines. We can offer standard clamping tools for your applications and can also produce special fixtures quickly and cost-effectively. Dodpfxob Nbpwj Aa Hewf Optional accessories: # 600010 Three-jaw chuck 80 mm: €125 # 600011 Three-jaw chuck 100 mm with 1 adapter plate (increases center height to 80 mm): €300 # 600021 Tailstock, height-adjustable 60 mm: €125 # 600030 ER16 collet chuck with nut: €125 Technical data: Overall height - Vertical setup: 145 mm - Horizontal setup: 70 mm Center height: 60 mm Faceplate diameter: 108 mm, maximum flatness deviation 0.020 mm Centering flange diameter: 55 h7 mm, concentricity 0.020 mm Internal taper MK1 with through-bore 10.5 mm, MK1 runout max. 0.020 mm Lightweight: 5 kg, load capacity: 20 kg workpiece weight Each with 4 mounting holes, 7 mm diameter, 150 mm apart Supplied with 6 months warranty - 800 rotary axis systems sold worldwide since 2006 -

Stanje: novo, Table diameter: 690 mm Table load capacity: 0.5/0.25 t Swivel range: 0 - 90° motorized Rotational speed: 0.2 - 2.5 rpm Spindle bore: 100 mm Torque: 375 Nm Welding current: 500 Amps Supply voltage: 230 Volt Djdpfjfv Aykjx Aa Hjwf Weight: 290 kg Dimensions (LxWxH): 800 x 750 x 750 mm Welding positioner with: - Foot switch - Motorized tilting - Infinitely variable speed control - 500 Amp welding current transmission

Stanje: zelo dobro (rabljeno), Jaw width: 103 mm Jaw height: 37 mm Clamping range: 175 mm Required space: 600 x 180 x 150 mm Weight: 27 kg Dodpfxofgx R Uo Aa Howf
