Rising falling Incline belt conveyor with...

Transnorm 29000 (25000+4000)-1000-900

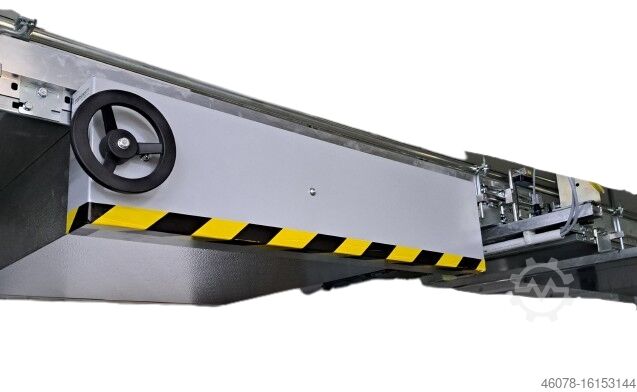

Transnorm Rising falling Incline belt conveyor with leading belt GF 25000+4000-1000-900

Csdpfjtp Tv Eox Afweri
RA2288

Technical data:

Conveyor length (NL): 29000 mm ( 25000 mm riser segment + 4000 mm forerun)
frame width (NB): 1000 mm, 1100 mm with motor
belt width (GuB): 900 mm
Overall height (BH): 80 mm, 430 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): 0,2
Drive: SEW gear motor,
Electrical data: 50Hz V380-500, kW2,2 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
