Vpenjala za rezkalnike, 57 kosov

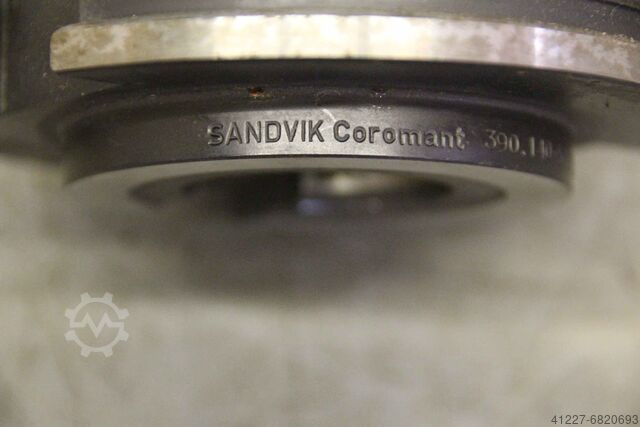

Sandvik Coromant SK50 verschiedene Ausführungen

Stanje: zelo dobro (rabljeno), Leto izdelave: 2000, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 663015, Walter Helitronic Mini Power Production 5-Achs CNC Werkzeug- und Schneidwerkzeugschleifmaschine Universelle Werkzeug- und Schneidwerkzeugschleifmaschine (CNC-gesteuert) Hersteller: Walter, Modell Helitronic Mini Power Production, Seriennummer 663015, Baujahr 2000 Beschreibung: Geeignet zur Herstellung und Nachschärfung von Metall- und Holzbearbeitungswerkzeugen aller Art. Ausgestattet mit 1-Mikron-Filtersystem, daher sehr sauberer Maschinenzustand. Technische Daten: • Längsverfahrweg (X-Achse): 350 mm • Vertikalverfahrweg (Y-Achse): 200 mm • Quertraverse (Z-Achse): 470 mm • Drehtisch Schwenkbereich (C-Achse): +/- 200° • Arbeitsspindel ISO 50, Spitzenhöhe (mit/ohne Arbeitstisch): 145 / 190 mm • Max. Werkstückdurchmesser: 100 mm • Max. Werkstücklänge: 270 mm • Max. Schleifscheibendurchmesser: 150 mm • Spitzenleistung 11,5 kW, Schleifspindelmotor 9 kW, Drehzahl 0–9500 U/min • Anschlussleistung ca. 25 kW (460 V, 3 Phasen, 60 Hz) • Abmessungen (B x T x H): 2600 x 2550 x 1970 mm, Gewicht ca. 3.950 kg, Farbe: Grau RAL 7035 / Grau RAL 7043 Zubehör: • Steuerung HMC 500, Windows XP Upgrade • Inklusive: 2021 Ebbco Filtration & Chiller Einheit Modell PMF-MWF5-623-P-40K (geeignet zur Filtration und Kühlung von bis zu 2 Schleifmaschinen; 40.000 BTU Chiller, Filtration bis 1 Mikron) • Booster-Box-Upgrade-Option sowie eine zusätzliche Booster-Box als Ersatz oder für bis zu 3 weitere Walter-Maschinen (Wert je Booster Box ca. 10.000 USD) • Stufenlose Drehzahlregelung, Messeinrichtung, pneumatische Werkstückspannung • Feuerlöschsystem • Nebelabscheider • Ölauffangwanne, 2 Schleifscheibenflansche • Vollständiger Satz Betriebsanleitungen Nwedpfx Agju Ez Huj Tec Software: • Tool Studio Version 2.1 Standard & Steptools • WWM Software Zustand: • Neuer Y-Achsen-Motor & Kugelgewindetrieb 2021 installiert • Neue Spindel 2021 installiert • Neue Schaltschrank-Klimaanlage 2021 installiert • Neue Encoder- & Motorkabel für A-, C-, X-, Y- & Z-Achse 2021 installiert • Die Maschine befindet sich aktuell im Produktionseinsatz und fertigt sehr präzise & wiederholgenaue Werkzeuge; sie kann unter Strom besichtigt werden • Alle Transportsicherungen sind vorhanden, so dass ein sicherer Versand möglich ist • Verladung auf einen Tieflader für 900 US-Dollar möglich. Gerne erstellen wir auch ein Angebot für Versand & Verpackung.

Stanje: novo, Instead of €14,874 gross RRP, now only €9,499 net (€11,304 gross incl. 19% VAT). Save 24% off RRP! 150-ton straightening press with electric motor and additional manual hand operation via a hand lever pump—perfect for precision tasks. Available versions: 30t 60t Nodpfx Aef Sqckog Tewc 100t 150t 200t >200t: upon request Special-purpose machines: upon request Brand new machine! We can also build a custom press tailored to your specifications. High-quality hydraulic workshop press with a maximum pressing force of 150 tonnes. The press can be operated either fully electrically using a lever, or manually for fine adjustments using the hand pump (ideal for jobs like pressing bearings, straightening, etc.), allowing precise manual force control. The ram cylinder is mounted on a traversing carriage, enabling side-to-side movement and maximum utilisation of the frame’s passage width. Features: - 150 tonnes maximum pressing force - Pressure gauge with manometer - Two operation modes: electric or manual - Two independent hydraulic pumps - Control cabinet with motor protection monitoring and safety devices - Adjustable working height - Pull chains for easy adjustment of bed height - Robust machine frame - Side-adjustable cylinder (mounted on carriage) The press can be tested onsite under power. ----- Many more workshop presses available in various designs, sizes, and with optional extras! 30, 60, 100, 150, 180, 200 tonnes. ----- Simply contact us—we’ll be happy to provide non-binding, expert advice. Price stated is net, plus 19% VAT. All information subject to change and non-binding. Europe-wide delivery possible! ----- The European Commission provides an online platform for out-of-court dispute resolution (OS platform). This listing solely serves as an online presentation of our goods. Contracts are negotiated via telecommunications (email, fax, phone, messaging portal): we will first send you a non-binding offer, including our terms and conditions and cancellation policy with legal notice, before any purchase/contract is finalised.

Stanje: dober (rabljeno), Leto izdelave: 1989, obratovalne ure: 64.136 h, Centre height: 350 mm Turning length: 1000 mm Max. swing diameter over bed/ways cover: 600 mm Max. swing diameter over cross slide: 360 mm Spindle bore: 107 mm Speed range: 16 – 3,150 rpm Feed range, longitudinal and facing: 0.5 – 5,000 mm/min Rapid traverse, longitudinal + facing: 9 m/min Main drive: 30 kW Machine dimensions with chip conveyor (L x W x H): 5,400 x 2,200 x 2,000 mm Weight: 6,400 kg Accessories / Special Features: • CNC control GILDEMEISTER EPL 2 with TFT screen General Description: CNC manual input control system with program input via function and numeric keypad. All information is entered in dialogue with the screen. Integrated menu navigation and plain text display of all functions. Control keyboard, screen, and handwheel are housed in a separate chip protection cover. The EPL control offers the following features: Programs can be entered and edited directly by the operator via the EPL control without manual program preparation. NC programs in ISO/EIA format can be entered, output, or directly input manually via the serial interface RS 232. Machining cycles: Turning cycles for longitudinal, facing, and contour turning, including stock allowance. Thread cutting. Undercuts as per DIN 509 Form E and F and DIN 76, grinding allowance programmable. Axial and radial grooves according to DIN 471 and 472, including bottom finishing. Radii 90° and chamfers 45°. Automatic cutter radius compensation for cycles, undercuts, grooves, radius, and chamfering. Programming: Block-oriented, metric/inch, diameter in absolute input, radius in incremental input, full circle programming, subprogram technique, skip levels for program sections. Zero offset. Operating mode selection via menu. Program input and output: Menu-guided dialogue with operator prompts or direct dialogue. • Hydraulic 3-jaw chuck Ø 315 mm with hollow spindle Ø 80 mm • Hinged belt chip conveyor • 12-station VDI 40 turret, 6 standard tool stations + 6 driven tool stations • Coolant system • RS 232 interface • Electronic handwheel • Electric footswitch for 3-jaw chuck and tailstock quill • Lighting • 12 pcs. various standard tool holders (details to be discussed on site) Overhauled servo drive for main spindle, 06/2025 Siegfried Volz Werkzeugmaschinen Nsdpfx Agovr Eh Ee Tswc Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Stanje: dober (rabljeno), Leto izdelave: 1956, Težki stružni stroj, stružnica, stružna klop, stružnica z vodilnim in gnanimi vreteni -Proizvajalec: Meuser, stružnica z vodilno in vijačno gredjo tip M3A -Dolžina struženja: 1400 mm -Premer struženja nad posteljo: 550 mm -Premer struženja brez postelje: 800 mm -Premer struženja nad suportom: 300 mm -Premer vretena: Ø 58 mm -Število vrtljajev vretena: 15 - 810 obr/min -Tričeljustna vpenjalna glava: Röhm Ø 250 mm Nwsdpeh Uuzyefx Ag Tec -Čelna plošča: 500 mm -Dodatki: vključno z nosilcem orodij/orodji glej slike -Konus konjička: MK5 -Dimenzije: 2770/1160/V1310 mm

Stanje: zelo dobro (rabljeno), 16 end mills with indexable inserts Manufacturer: Walter Nwjdpfx Agedx D Tve Tec Weight: 9.5 kg

Stanje: dober (rabljeno), Leto izdelave: 1997, TBT ML 200-2-850 Deep Hole Drilling Machine TECHNICAL DATA Type: M200-2-850 Number of spindles: 2 Drilling slide stroke: 850 mm Drilling method: Single-lip drilling Drilling depth with: Plunge spindle: 120 mm Sealing housing: 400 mm Sealing housing with steady rest: 350 mm Spindle drive Power: 2 / 3.5 / 1.5 kW Voltage: 140 / 350 / 350 V Speed: 14 / 11 / 6 / A Feed – self-driven Feed rate: 20 – 500 mm/min Rapid traverse NC operation: 12 m/min Nwedpfovca Rcex Ag Tjc Feed force: 1.5 kN Motor torque: 2.2 Nm at 3000 rpm Tailstock Motor power: 0.75 kW at 1000 rpm Spindle speed: 500 rpm Max. stroke: 200 mm Main dimensions L x W x H: 4600 x 2500 x 2100 mm Transport weight: 3200 kg Control system: Sinumerik 805 M No guarantee is provided regarding the accuracy, completeness, or currency of the information given.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2015, Funkcionalnost: popolnoma funkcionalen, CNC brusilni stroj za orodje Walter Helitronic Power FH, letnik 2015, upravljanje Fanuc, s paletnim nakladalcem za valjaste obdelovance, palete od 4 mm do 25 mm, menjalec brusnih plošč za 8 pozicij, elektrostatični filter za dim, protipožarna naprava, programska oprema Walter-Window-Mode in Toolstudio, programski paketi: 001,002,003,016,017,026,090,091,098,099,032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard, s predpripravo za hidravlično enoto (luneta), brusilno vreteno (eno-vreteno) je neposredno gnano in opremljeno z oljnim hladilnikom. Motor s votlo gredjo za os A ima obrate 0-750 1/min. Osi C, X, Z in A so bile leta 2022 obnovljene. Njdpfoyh Dl Nex Ag Tewc

Stanje: zelo dobro (rabljeno), SK 50 tool holders (28627) various manufacturers: - Bilz Nwedpowl U Tcefx Ag Tjc - Kelch - Sandvik - Clarkson Approx. 90 pieces

Stanje: dober (rabljeno), Tailstock Quill size: MT 2 Quill stroke: 30 mm Njdsdlp Txepfx Ag Tswc Height adjustable Centre height: 250 – 285 mm Adjustable tilt: -5° to +15° Base dimensions: 230 x 155 mm Weight: 27 kg

Stanje: rabljeno, Leto izdelave: 2013, The machine was completely rebuilt by the manufacturer in 2013, including the retrofit of a new HMC 600 control system. Description: Suitable for regrinding and manufacturing new woodworking and metalworking tools of all types. Accessories: - Software Package 1 (cylindrical tools, sharp edge, corner and full radius) - Software Package 2 (tapered-spiral tools, sharp edge, corner and full radius) - Software Package 3 (drills and step drills) - Software Package 4 (step tools) - Software Package 6 (woodworking tools) - Software Package 16 (warm-up program) - Software Package 27 (free programming) - Heli-Flute & Cone (chip space calculation program for cylindrical and conical milling cutters) Nedpfxex H Nqlo Ag Tewc - Infinitely variable speed control - Pneumatic workpiece clamping - Measuring probe - Automatic fire extinguishing system - Electrostatic extraction system - Oil drip tray - Automatic central lubrication X-axis longitudinal travel: 400 mm Y-axis vertical travel: 250 mm Z-axis cross travel: 580 mm C-axis rotary table: swiveling range +/- 200° Workpiece holder: ISO 50 Max. workpiece diameter: 260 mm Max. workpiece length: 270 mm Max. grinding wheel diameter: 200 mm Grinding spindle drive power: 10.0 kW Continuously variable grinding spindle speed: 0 - 9500 rpm Connected load: 15 kVA (400 V / 50 Hz) Dimensions (W x D x H): 2000 x 2010 x 2150 mm Weight: approx. 3200 kg Color: grey RAL 7035/7043
