PVC Trojni stroj za odvajanje vode

PLASTMAK PVC ALÜMİNYUM İŞLEME MAKİNELERİ SÇ 521

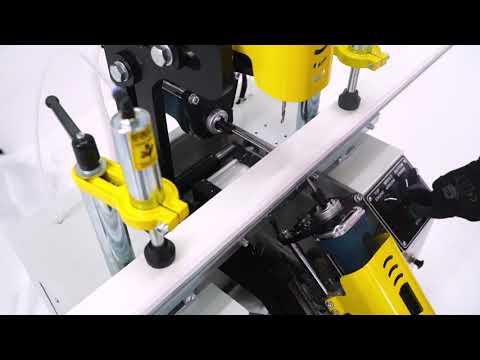

Stanje: novo, Leto izdelave: 2025, številka stroja/vozila: SÇ 521 S ÜÇLÜ SU TAHLİYE MAKİNESİ YÜKSEK FREKANS MOTORLU, • Possibility to mill water drainage channels in PVC and aluminum profiles • Independent operation of three separate groups • Capability to work in angled positions for the drainage system • Pneumatic profile clamping system Codpfx Agjra Nrqoqogw • Fully automatic operation • More efficient and long-lasting operation with high-frequency motors (18,000 rpm) • Vibration-free and higher quality channel milling due to high-frequency motor

Stanje: novo, Leto izdelave: 2026, številka stroja/vozila: SÇ 551 PORTATİF KOPYA FREZE MAKİNESİ, Funkcionalnost: popolnoma funkcionalen, • Used for milling lock handle slots, hinge and espagnolettes slots, as well as channels of desired dimensions on aluminum and plastic profiles • Copy routing unit designed according to the specific operation to be performed • Ability to open various channels independently from the copy template by means of the adjustable stop OPTIONS Cgsdpfxercm D Ds Agqsw • Lower cabinet system • Pneumatic system

Stanje: novo, Leto izdelave: 2025, številka stroja/vozila: SÇ 502 S Alüminyum Pvc 3'lü kol yeri delme su tahliye makinesi yüksek frekans motorlu, • Complies with CE standards. Cgsdpfx Aoramz Hsgqjw • Enables the machining of lock slots, hinge openings, handle holes, and water drainage channels on aluminum and PVC profiles. • Copy head operates on the vertical axis. • Triple drilling system operates on the horizontal axis. • Water drainage system can operate at an angled position. • Universal template offers the option to create custom templates as required. • Triple drilling, copy routing, or slotting system can be operated independently. • High-frequency motor (18,000 rpm). • Right conveyor system (1 meter).

Stanje: rabljeno, Leto izdelave: 1995, Cutting width: 375 mm Cutting height: 150 mm Saw blade dimensions: 500 x 30 mm Motor power: 2 x 3 kW Cutting length: 5100 mm Rotational speed: 2800 rpm Air pressure: 6 bar Machine weight: approx. 700 kg Space requirement: approx. 6100 x 1450 x 1450 mm * Profile support plate made of steel * Robust cast construction of the saw unit * Large cutting area, allowing simultaneous cutting of 2 profiles * Easy adjustment of the movable unit via roller guide * Double bearing of the swivel mechanism * Safe clamping via dual-pressure system * Double guide for saw feed * Hydropneumatic saw feed * Correction scale for external dimensions * Left saw unit fixed * Swivel range 45°-90° Cgsdpfstv Rgrex Agqjw * Including extraction unit (without piping), ALKO Mobil-Jet 100, year of manufacture 2002

Stanje: novo, Leto izdelave: 2026, številka stroja/vozila: SÇ 402 Alttan Çıkma Kesim Makinası, Funkcionalnost: popolnoma funkcionalen, • Ustreznost CE standardom. • Uporablja se za rezanje aluminijastih in PVC profilov Csdpfxerahzgj Agqegw • Hidro-pnevmatsko rezanje • Nastavitev hitrosti rezanja glede na profil • Možnost rezanja pod fiksnimi koti levo in desno: -60, -45, -30, -22,5, -15, 0, +15, +22,5, +30, +45, +60 stopinj • Pnevmatska navpična in vodoravna stiskalnica • Aluminijasta žaga s diamantno konico premera Ø550 mm • Na voljo je valjčni transporter (3 metre desno in levo) • Sistem za pršenje olja • Natančne reze omogoča 3 kW motor in sistem Hydro-check • Uporablja se z digitalnim merilnikom.

Stanje: rabljeno, Leto izdelave: 1994, Tehnični podatki: Premer žaginega lista: 450 mm Število vrtljajev: 2820 min⁻¹ Največja dolžina reza: 5000 mm Najmanjša dolžina reza: 240 mm Potreben zračni tlak: 6-8 bar Premer izvrtine žaginega lista: 32 mm Kot reza v obe smeri: 45+90° Priključek za stisnjen zrak: 6–8 bar Skupna priključna moč: pribl. 4,6 kW Teža stroja pribl.: 1,1 t Dimenzije stroja (D x Š x V): pribl. 6,05 x 1,49 x 1,79 m Dodatne značilnosti stroja: Cgedpfx Aeu Nigkogqew - Vpenjalna naprava: pnevmatska, vertikalna in horizontalna - Pnevmatska naprava za meglenje - Višinsko nastavljive noge stroja - Materialne podpore pomične skupaj z žago - Dvoročno upravljanje - Števec kosov Premer reza v skladu s tabelo reznim diagramom, saj je odvisen od hitrosti in žaginega lista. Hitrost rezanja pri 2820 obr./min in premeru lista Ø = 66 m/sec. Oprema: - 2 rezervna žagina lista

Leto izdelave: 2012, stanje: pripravljen za uporabo (rabljen), A Schüco profile workbench for sash hardware assembly is available. Assembly capacity: approx. 6–8 sashes/day, hardware: Schüco AvanTec, minimum pressure: 0.7 MPa, maximum air flow rate: 20 l/min, machine weight: approx. 1200 kg. An on-site inspection is possible. Cgedpowwlk Nefx Agqew

Stanje: novo, Cutting Range: round 0°: 270 mm Cedpfjiqt Rljx Agqegw square 0°: 260 x 260 mm flat 0°: 320 x 260 mm round 45° right: 230 mm square 45° right: 220 x 220 mm flat 45° right: 230 x 150 mm round 60° right: 140 mm square 60° right: 140 x 140 mm round 45° left: 200 mm square 45° left: 175 x 175 mm flat 45° left: 220 x 150 mm Cutting Speed: 40 / 80 m/min Saw Blade: 2925 x 27 x 0.9 mm Working Height: 975 mm Coolant Pump: 100 W Saw Motor: 1.9 kW Voltage: 400 V Dimensions LxWxH, approx.: 2000 x 1300 x 2000 mm Weight, approx.: 550 kg Features: - Double miter bandsaw with swiveling saw bow from left -45° to right +60° - Ideal for cutting pipes, profile material, and solid stock made of stainless steel, iron, etc., for industrial/commercial use - Generously sized cast saw arm for low-vibration operation - Two blade speeds for optimal adjustment to the workpiece - Hydraulic lowering cylinder - Quick-release vise for fast and easy clamping of the workpiece - Precise, adjustable blade guides for optimal cutting results - CE/IEC compliant, German documentation and German service Scope of Delivery: - Bi-metal saw blade 2925 x 27 x 0.9 mm - Blade tension adjustable via pressure gauge - Carbide blade guides - Quick-release vise - Material stop - Coolant system with pump - Hydraulic lowering cylinder - Motor protection switch - Automatic shutdown at end of cut - Base frame

Stanje: rabljeno, Leto izdelave: 2000, številka stroja/vozila: 25019, Funkcionalnost: popolnoma funkcionalen, Rezkalno in obdelovalno središče STUERTZ STBAZ-IPT 40000-S-V Rabljeno, letnik 2000 Popolnoma avtomatsko CNC žagalno in obdelovalno središče za PVC plastične profile, mehansko v zelo dobrem stanju glede na starost. Operacije: žaganje, obdelava, avtomatsko vijačenje ojačitev, vrtanje čez jeklene ojačitve, tiskanje nalepk. Baza podatkov z Gealan, Rehau in Aluplast profili. Na voljo dokumentacija, dodatne fotografije in video posnetek. Csdpfxew Edyfo Agqsgw Opravljamo montažo in zagon stroja.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2011, Funkcionalnost: popolnoma funkcionalen, Stürtz popolnoma avtomatska varilna linija (2 stroja x 4 glave) in linija za čiščenje kotov z dvojnimi glavami - 1 x varilec VSM40/26 - 1 x varilec VSM30/26 - 1 x sistem za manipulacijo z vertikalnim transportnim sistemom Codpfxovkdubs Agqogw - 1 x nagibna miza - 1 x stroj za čiščenje kotov z 2 glavama s svedri - 1 x izhodna miza prilagojeno za profile Rehau Brillant/Euro70, Synego in Geneo linija je še vedno v proizvodnji in jo je mogoče pregledati med delovanjem popolnoma delujoča, v zelo dobrem stanju
