Komponenta

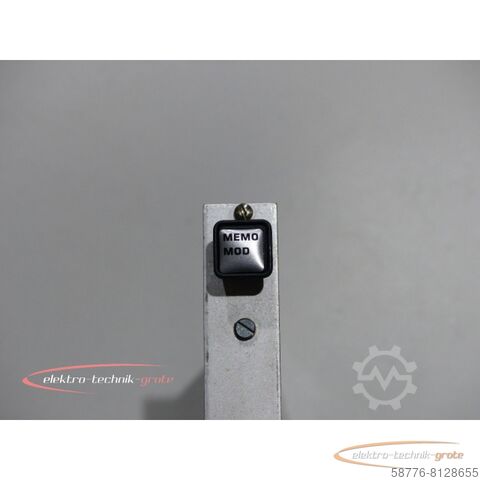

Philips 4022 226 3330 MEMO MOD Karte

Stanje: zelo dobro (rabljeno), Leto izdelave: 1997, Grinding diameter: 80 - 250 mm Grinding length: 600 mm Centre height: 175 mm Longitudinal travel: 750 mm Workpiece speed: 6 - 600 rpm Grinding spindle speed: 1500 - 3600 rpm Cross travel - automatic and manual: 320 mm Iiodpju D I Tlofx Ah Aek Control: Kelco 80 Total power requirement: kW Machine weight approx. 4.4 t Space requirements approx. 3.1 x 2.1 x 2.0 m

Stanje: rabljeno, Leto izdelave: 2010, Technical Details: X-axis travel: 800 mm Y-axis travel: 685 mm Z-axis travel: 630 mm C-axis: 360° (faceplate table) Control: Siemens 840D Power Line Spindle speed: 20 - 10,500 rpm Spindle torque: 180 Nm Tool holder: HSK-A63 DIN 69893 Tool magazine with: 40 slots Number of tables: 2 Swivel range per table +/-: 120° (A-axis) Clamping surface of table: 280 x 275 mm Table load capacity: 320 kg Interface: RS232 Spindle operating hours: 38,700 h Total power requirement: 37 kW Machine dimensions approx. LxWxH: 4.0 x 4.4 x 3.0 m Dimensions LxWxH: Chip conveyor: 2.1 x 1.05 x 1.5 m Dimensions L x W x H: Cooling lubricant system: 1.3 x 1.6 x 1.95 m CNC Machining Centre - 5-Axis Machining Centre Clamping table for 4th and 5th axis (swiveling 120° left/right at 50 rpm and rotating with faceplate Ø 280 mm at 200 rpm) Max. workpiece size 940 x 650 mm for/on table Including chip conveyor, manufacturer Knoll, 750 K-1/150; year 2009 Coolant system by Bürener with paper band filter, band width 700 mm; year 2009 Both control cabinets equipped with Rittal cooler Various accessories such as different clamping fixtures by HILMA and Chick, etc., can be offered exclusively on request. i.D. Iijdpfxou Idgpe Ah Ajk

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 3 - Center height: 175 mm - Distance between centers: 1000 mm LINEAR AXES - Grinding length: 500 mm - Travel X x Z: 267 x 650 mm GRINDING SPINDLE HEADSTOCK - Continuous orientation: +/-8.5° - External grinding wheel dimensions: 500 x 80 x 203 mm - Grinding spindle headstock drive power: 7.5 kW - Cutting speed: 44 m/s WORKPIECE SPINDLE HEADSTOCK - Taper type: MT5 - C-axis: +/-0.5° - Drive power: 1 kW - Rotational speed: 30-1,000 rpm TAILSTOCK - Taper type: MT3 - Quill stroke: 35 mm - Quill diameter: 50 mm Iiedpfx Aheuhbyde Ajk - Max. workpiece weight between centers: 130 kg ELECTRICAL SUPPLY - Supply voltage: 400V 50 Hz - Machine dimensions: 2700 x 2350 x H. 2100 mm - Weight: 4,000 kg TOTAL OPERATING HOURS - Operating hours: 17,775 h ACCESSORIES - CNC FANUC 16i-TA control - Pictogramming - Studer RELEASE C - Remote control with electronic handwheel - SENSITRON - Dynamic balancing device Hydrobalance HBA 40000-1 - Automatic length measuring arm MOVOMATIC C25 - In-process external diameter measuring arm MOVOMATIC - Grinding wheel guard with automatic tilting - Fixed diamond dressing device on workpiece spindle headstock - Coolant tank: 375 l - Paper filter - Oil mist extraction - Grinding wheel holder flanges

Stanje: dober (rabljeno), Leto izdelave: 2000, 20.000 U/min, Iijder Urm Sspfx Ah Aok Werkzeugvermessung auf dem Tisch wird geliefert, Die von Hand gezeigten Teile werden nicht mitgeliefert.

Stanje: rabljeno, Grinding diameter: 350 mm Grinding length: 1000 mm Centre height: 175 mm Grinding wheel diameter: 400 mm Grinding wheel width: 50 mm Bore: 127 mm Workpiece spindle taper: MK5 Workpiece spindle speed: 20–400 rpm Workpiece headstock swivelling: 360° Iiodpfxsuxfups Ah Aek Grinding head swivelling: 180° ± Grinding spindle speed: 1500, 1700, 2200 rpm Infeed per stroke: 0–9.99 mm/Ø Continuous infeed: 0–9.99 mm/Ø Table swivelling: ±8° Table longitudinal travel: 1100 mm Table speed: 0.02–6 m/min Workpiece weight between centres: 130 kg Cross travel max.: 270 mm Workpiece weight max. (fly): 130 kg including clamping Internal spindle mounting: 80 mm Tailstock quill taper: MK3 Quill stroke: 30 mm Total power requirement: 6.5 kW Machine weight approx.: 3.05 t Space requirement approx.: 4 x 2 m Overhauled according to Kellenberger guidelines including new, modern, and future-proof control system. Picture of a previously delivered machine. - Operation via touch panel is extremely simple. - The symbols on the control panel are nearly identical to the original system, so no extensive retraining required. - Diagnostic function with display of PLC messages and digital I/Os. - Dressing function can be expanded or modified per customer request. - Oriented spindle stop for workpiece spindle available on request. - New maximum infeed amount: 40 mm (can be optionally increased). - Digital readout on 2 axes. X-axis resolution: 0.5 μm Options: - Rotary encoder with digital display in workpiece headstock - Rotary encoder with digital display in grinding spindle headstock (no height adjustment with spindle possible) - New robust internal grinding attachment, diameter 80 mm or 100 mm - Increased centre height up to max. 225 mm - Speed control for the grinding spindle Included: - Operating tools - Collet tube for chuck Further accessories available on request. The machine is equipped with an electronically controlled infeed system (X-axis) with stepper motor drive. Hydraulic table traverse and rapid feed. Versatile application in production for external and internal cylindrical grinding, or for combined external, face, and internal grinding in a single setup for individual parts. Possible options: - Semi-automatic dressing cycles for external and internal grinding - Automatic dressing compensation - Measurement control system The machine tool does not currently meet the fundamental safety and protection requirements as specified in BetrSichV 2015. An assessment of the required minimum safety targets must be determined by a risk assessment according to BetrSichV.

Stanje: rabljeno, Leto izdelave: 2000, Grinding diameter: 360 mm Grinding length: 1600 mm Centre height: 180 mm Internal diameter: 0 mm Grinding depth: 0 mm Swing diameter: 0 mm Iodpfx Ahet Hw Rds Aoik Total power requirement: 40 kW Machine weight approx.: 10,000 kg Space requirement approx.: m KARSTENS Universal "CNC" External, Internal and Face Grinding Machine with capabilities for multi-sided, non-circular, polygon, and thread grinding BWO CNC control Type 900 C, Type K 51-1500 Year of manufacture: 2000 Serial no. 99 033 _____ Centre height: 180 mm Centre distance / Grinding length: 1,700/1,600 mm Max. workpiece weight between centres: 250 kg External grinding: Grinding diameter approx.: 5 - 360 mm Grinding wheel size (diameter x width x bore): 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s): 1,900 / 2,200 rpm Drive power external/face/internal: 7.5 / 7.5 / 4.0 kW Grinding spindle head: 3 positions B-axis swivel range: 240 / 17.5 ° X-axis / Cross slide stroke: 360 mm Grinding slide feed rate: 0.001 – 125 mm/min Workpiece spindle speeds, steplessly adjustable: 1 – 1,000 rpm C-axis spindle mount / Bore, 24 mm MK 4 Table feed (Z-axis): 0.01 – 10 m/min Total drive power: 40 kW - 400 V - 50 Hz Weight approx.: 10,000 kg Accessories / Special features: Universal CNC cylindrical grinding machine for almost all grinding tasks, suitable particularly for non-circular grinding / eccentric & cam profile grinding, polygonal grinding, as well as face grinding of multi-sided workpieces and even thread grinding with corresponding grinding wheel profiles. Freely programmable BWO CNC controller with numerous subprograms and easy parameter input. Grinding of multiple diameters in a single clamping possible. - B-axis with three grinding spindles, one with MOVOMATIC touch probe - MOVOMATIC pneumatic diameter gauge CR 60 for mounting on the grinding table, control unit type ES 400 - MPM grinding wheel balancing unit, straight dresser with diamond fleece mounted on table, powered diamond wheel dressing device - Workpiece spindle head pneumatically movable, hydraulic tailstock with adjustable quill - Various further accessories, but without coolant equipment Condition: good to very good – demonstration possible under power Ideal machine for spindle manufacturing, etc. Delivery: ex-stock – as inspected Payment: strictly net – upon receipt of invoice

Stanje: rabljeno, Leto izdelave: 1992, Technical details: Grinding diameter: 50 mm Grinding length: 100 mm Centre height: 100 mm Centre distance: 200 mm Iedpor R Ek Ssfx Ah Aeik

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 5 - Distance between centers: 400 mm - Usable diameter: 180 mm LINEAR AXES - Travel X1 and X2 x Z: 220 mm - Travel Z: 850 mm - Resolution X x Z: 0.0001 mm TURRET: - Number of fixed positions: 12 - Tool holder: VDI30 GRINDING WHEEL HEADSTOCK - External grinding right: * Grinding wheel dimensions (Ø x width x bore): 400 x 50 x 127 mm * Drive power: 6.8 kW WORKPIECE SPINDLE STOCK - Max. spindle speed: 7,500 rpm - Synchronous speed: 1 - 5,000 rpm - Taper type: MT4 - Drive power: 10.5 kW - C-axis: 0.001° SYNCHRONIZED COUNTER SPINDLE STOCK - Max. spindle speed: 7,500 rpm - Synchronous speed: 1 - 5,000 rpm - C-axis: 0.001° - Internal taper: MT4 - Micrometric adjustment: +/- 40 micron - Drive power: 10.5 kW POWER SUPPLY - Capacity: 45 KVA DIMENSIONS - Space requirement: 2,800 x 3,960 mm Ijdsvxw A Uopfx Ah Aeik - Machine weight: 7,600 kg OPERATING HOURS - Power-on hours: 57,000 h ACCESSORIES - CN FANUC 310i-modelA - StuderWIN software - RS232 / USB interface - Remote electronic handwheel - Turret head with automatic length calibration Renishaw LP2 - Marposs diameter probe (multi-range) + Z4-axis for positioning - Semi-automatic balancing of the grinding wheel MPM.3 BMT100 M.24 - Coolant tank 480 L * with paper filter * with magnetic filter - Chip conveyor - Mist extraction - Cooling unit for grinding wheel motor - Electronic contact detection Dittel AE6000 - Stationary dressing device on the workpiece spindle stock - Control cabinet air conditioning - Balancing shaft - Interface for automatic loading system

Leto izdelave: 2012, Stanje: skoraj kot novo (rabljeno), Deli, prikazani na fotografijah z roko, niso vključeni. Z mlinom/pripravami pridejo držala orodij SK 40. Iiedpfx Aelpcdwsh Aok

Stanje: rabljeno, TECHNICAL DATA - Distance between centres: 200 mm - Centre height: 100 mm - Travel (X/Z): 130 / 170 mm GRINDING WHEEL HOLDER SPINDLE HEADSTOCK - Wheel dimensions: 400 x 63 x 127 mm - Peripheral speed: 45 m/sec - Power: 3 kW - Orientation: 30° WORKPIECE HOLDER SPINDLE HEADSTOCK - Taper: MT4 - Speeds: 600 - 3000 rpm - Power: 0.5 kW - C axis indexing accuracy: +/- 0.5° TAILSTOCK - Taper: MT2 - Quill stroke: 30 mm ELECTRICAL SUPPLY - Voltage: 400 V - Frequency: 50 Hz - Installed power: 19 kVA Iijdpfx Asuhbxmeh Aok DIMENSIONS - Space requirement: 1760 x 2180 mm - Height: 2630 mm - Weight: 4,000 kg MACHINE HOURS - Hours under power: 46,943 h - Operating hours: 21,529 h ACCESSORIES - CNC FANUC 16TB - Options: Studer Release B, Pictogramming - Interface: RS232C - Electronic offset levers - Direct measuring systems on X and Z axes - Tailstock with fine concentricity adjustment - Hydraulic retraction of tailstock quill - Swivelling dressing wheel on table: FISCHER AES-72x230/3 - Grinding wheel dynamic balancing: DITTEL HBA 4000 - Diameter measuring device: MOVOMATIC ES400 - Loading/unloading robot system: FELSOMAT - Automatic front door - Coolant system - Electrostatic extraction: ELOSTA BF2000 - Pneumatic collet chuck - 1 grinding wheel holder - 1 grinding wheel - Support arm for zero-G grinding wheel change - 1 balancing shaft
