CNC-glava za obračanje šivalnega stroja

PFAFF-KSL KSL110 - CNC-Drehkopf Nähanlage 2500x800

The KSL110-Headbag CNC Rotary Head Sewing System is in excellent condition and has approximately 2,000 operating hours.

Application areas:
Demanding safety, functional, and decorative seams

Features:
- Sewing machine X-axis driven, template Y-axis driven
- 360° rotary head with alternating double transport for perfect seams—optimal stitching results in multidirectional sewing processes
- Intermittent transport (transport pauses as the needle pierces the material)
- Switchable needle feed (on/off) for continuous sewing with top seam quality
- Sewing head, pneumatically liftable (75 mm) for direct access to any seam position
- Two 26 mm bobbins and hooks
- Excellent stitch quality through a vertical hook system
- Upper thread tension electronically/pneumatically adjustable via Eltex unit through menu
- Thread break monitoring
- Bobbin thread monitoring via stitch counter
- Electromagnetic thread cutter for top and bottom thread
- Mobile electronic bobbin winder (freely positionable)
- The touchscreen control panel ensures intuitive operation and features a modern, clearly arranged interface. The seam can be monitored in real time on the display.

Highlights:
- Automatic identification of workpiece holder/sewing program via handheld scanner and barcode for increased process reliability
- The working area is protected by safety light barriers (CE compliant)
- Pneumatic presser foot height adjustment

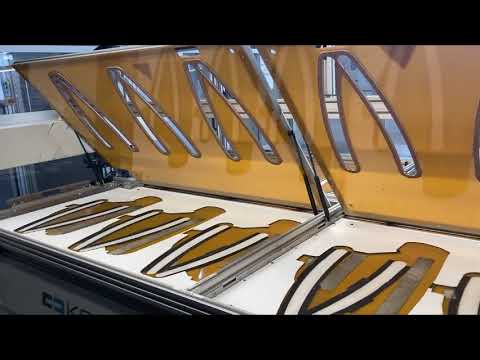

- Clamping device for securing two workpiece templates in the sewing envelope

Technical specifications of the KSL110-Headbag CNC Rotary Head Sewing System:
- Overall length and width: 3495 mm x 4276 mm
- Height: 1685 mm
- Weight: 2000 kg
- Max. sewing area: 2500 mm x 800 mm
- Stitch type: 2-needle/double lockstitch
- Max. material thickness: 10 mm
- Max. sewing speed: 2,800 stitches per minute
- Max. stitch length: 12 mm
Nwedpfxsyxnl Sj Ah Iod
- Operating voltage: 3P+N+PE / 400 VAC / 50-60 Hz
- Power consumption: 16 A, 5 KW
- Operating pressure (min. - max.): 6 bar
- Year of manufacture: 05/2017
- Operating hours: approx. 2,000 h
- Operator interface: Touchscreen monitor with computer (Windows)

The KSL110-Headbag CNC Rotary Head Sewing System is a high-performance industrial sewing solution designed for demanding safety, functional, and decorative stitching. Built in 2017, this model is characterized by its robust construction. The system is housed in a grey and white aluminum enclosure that is clean and well-maintained, indicating careful use.

This advanced CNC sewing unit offers a working area of 2500 mm x 800 mm and operates with a 2-needle double lockstitch system. It supports a maximum sewing speed of 2,800 stitches per minute and a maximum stitch length of 12 mm. The sewing head can be pneumatically lifted by 75 mm, allowing direct access to any seam position, and features a 360° rotatable head with alternating double feed for flawless seam results during multidirectional sewing operations.

It is particularly suitable for demanding and industrial sewing applications where high precision and reliability are required.
