Težkovratna sejalnica / scalper

Kleemann MOBISCREEN MSS 802i EVO

Mobile heavy-duty screening plant / scalper, 2-deck screen
Year of manufacture: 2022
Operating hours (diesel engine): approx. 1,700 h
Theoretical feed capacity: up to 500 t/h
Edge lengths up to approx. 800x500x300 mm
Hopper unit extended, 9.1 m³ with wear lining
Feed conveyor belt: smooth
Screen box with spacer frame, screen inclination: 15.4 - 20 degrees
Transport inclination: 12.5 degrees
Vibration amplitude: 8 - 9.5 mm
Width: 1,550 mm
Length: 4,880 mm (top deck),
Length: 4,500 mm (bottom deck)
Drive: hydraulic motor 86 cc
Screen material brake: 1 unit, mounted above the screen
Screening media top deck: 1x punched plate LW 40 mm, remainder: wire mesh MLW 40 mm
Screening media bottom deck: wire mesh QM 20 mm
Side discharge conveyor, undersize (fine material) to the right: smooth belt
Side discharge conveyor, oversize to the left: chevron belt

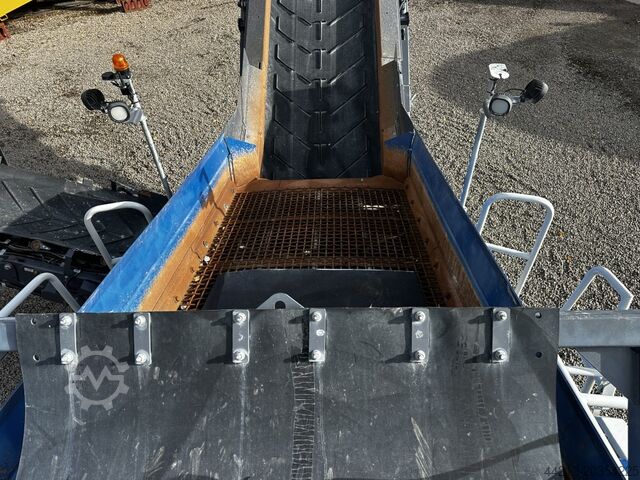

Main discharge conveyor: chevron belt
Undercarriage B3HD, wheelbase: 3,320 mm
Track width: 400 mm
Engine unit: John Deere (Stage V)
Power: 97.6 kW at 1,800 rpm, water-cooled
Fuel tank approx. 330 litres
Spray system including pump (for dust suppression)
Radio remote control
Knsdjxqggvjpfx Ah Dsc
Premium lighting

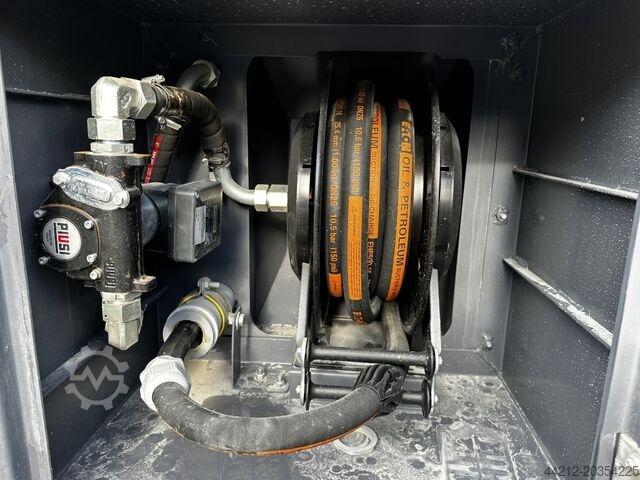

Diesel refuelling pump
MobiScreen line coupling
WITOS FleetView
Transport dimensions (LxWxH): 18,310×3,200×3,400 mm
Machine weight: 34,000 kg
