Cilindrični brusilni stroj

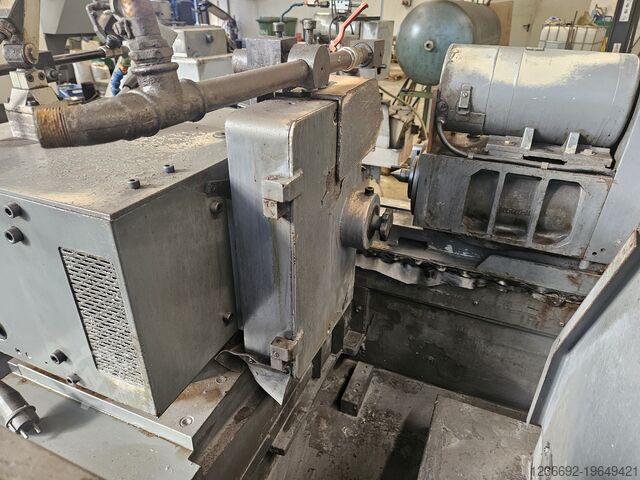

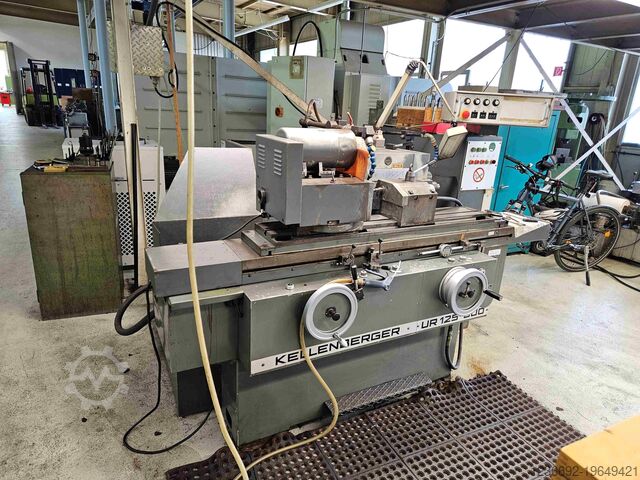

KELLENBERGER Rundschleimaschine UR125-600

Stanje: zelo dobro (rabljeno), Leto izdelave: 2009, obratovalne ure: 29.000 h, Funkcionalnost: popolnoma funkcionalen, Oprema: dokumentacija / priročnik, The INDEX C200 – year of manufacture 2009 – is a high-performance CNC production turning machine equipped with a FANUC 31i control, main spindle and counter spindle, and a 65 mm bar capacity. The machine features a premium three-turret configuration: Turrets 1 and 2 each offer X, Z, and Y axes, while Turret 3 is dedicated to operations on the counter spindle. All three disk turrets are fitted with 10 stations each and support driven tools up to 6,000 rpm, allowing for highly flexible complete machining operations. With a gantry loader, conveyor belt, C-axis on both main and counter spindles, and powerful spindle drives, this machine is especially suitable for productive series manufacturing of complex turned and milled parts. Control: FANUC 31i Configuration: Machine with 3 tool carriers / 3 disk turrets Bar capacity: 65 mm Machine bed: vertically arranged grey cast iron bed Main spindle: Spindle 4 Counter spindle: Spindle 5 with Z-axis Spindles Main spindle Bar capacity: 65 mm Front bearing spindle diameter: 110 mm Spindle nose: ISO 702/1, size 140 cylindrical Chuck diameter: 160 mm Power: 25 kW at 100% duty cycle / 33 kW at 40% duty cycle Torque: 112 Nm at 100% duty cycle / 150 Nm at 40% duty cycle Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Bar capacity: 65 mm Bdjdpfxsy Tmhzj Aiqjh Front bearing spindle diameter: 110 mm Spindle nose: ISO 702/1, size 140 cylindrical Chuck diameter: 160 mm Power: 25 kW at 100% duty cycle / 33 kW at 40% duty cycle Torque: 112 Nm at 100% duty cycle / 150 Nm at 40% duty cycle Speed: 5,000 rpm C-axis: Resolution 0.001° Z-axis (counter spindle): 700 mm travel Rapid traverse Z-axis: 50 m/min Tool carriers / Turrets Equipped with 3 disk turrets, each with 10 stations. Tool system for 10 stations: DIN 69880 cylindrical shank – Ø30 x 55 mm. Tool carrier 1 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 320 / 550 mm (as per documentation) Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool carrier 2 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 550 mm Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool carrier 3 X-axis 10 stations Dedicated exclusively for machining on the counter spindle X-axis: 180 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Further technical equipment as per documentation: - Gantry loader system with numerically controlled Z-axis - Workpiece unloading from main or counter spindle to conveyor belt - Remnant part removal from the main spindle into remnant container Gantry loader: Traverse speed: 100 m/min Traverse range: 70 mm Max. workpiece diameter: 90 mm Max. workpiece length: 250 mm Max. remnant length: 250 mm Max. workpiece weight: 3.5 kg Hydraulic system: Delivery rate: 19 l/min System pressure: 90 bar Hydraulic tank: 40 l Cooling circuit: Delivery rate: 19 l/min Cooling unit power: 13 kW Coolant system: Pump output: 80 l/min / 8 bar Tank capacity: 300 l Chip conveyor: Chip discharge height: 1,250 mm

Stanje: rabljeno, Technical Details: Bodpfx Aieu Ng Dtjqedh Grinding diameter: 260 mm Grinding length: 1000 mm Centre height: 130 mm Clamping length: 1000 mm Feed: manual Headstock adjustment: 280 mm, manual Total power requirement: approx. 6.0 kW Machine weight approx.: 1.5 t Machine dimensions approx. LxWxH: 2580 x 1750 x 1630 mm Non-circular grinding machine – (Crankshaft grinding machine) Intended for grinding crankshafts, camshafts, etc. Machine table: - Swivable right/left: 6° each - Clamping surface (workpiece): 1240 x 156 mm Grinding spindle stock: - Spindle stock adjustment 150 mm towards workpiece axis - Swivable right/left 90° in two planes - Manual infeed, hand-operated, 280 mm - Grinding wheel/specimen: 350 x 32 x 127 mm Internal grinding spindle type Fortuna SJ 60 x 250L Workpiece spindle stock: - Speeds: 25 - 65 - 155 - 400 rpm - Swivable manually, +/- 90° - Centre height: 130 mm Equipment: Tailstock fitted with dressing device, rapid clamping quill with centre Machine can be demonstrated on request.

Stanje: rabljeno, TECHNICAL DATA - Centre height: 100 [mm] - Distance between centres: 650 [mm] - Max. table swivelling: [degrees] - Travel: 650 [mm] - Feed rate: 100 - 3500 [mm/min] GRINDING WHEEL HEADSTOCK - Swivel range: [degrees] - T1 grinding wheel dimensions: 350 x 32 x 127 [mm] - Power: 3 [kW] - Speed: 1600 - 2200 [rpm] Bedpoyn R I Hofx Aiqjdh - Peripheral speed: [m/s] WORKPIECE HEADSTOCK - Spindle speed: - 1200 [rpm] - Power: 0.5 [kW] - Taper type: MT4 (Morse Taper 4) - Max. workpiece weight: 20 [kg] - Swivel range: 0 - 90 [degrees] ELECTRICAL SUPPLY - Supply voltage: 400 [V] - Power: 8 [kVA] WEIGHT AND DIMENSIONS - Footprint: 00 x 00 [mm] - Machine height: 1650 [mm] - Machine weight: 1900 [kg] OPERATING HOURS - Hours under power: 01 [h] ACCESSORIES - Sony LG20-2 display unit - Automatic contact detection: SENSITRON 6 - 1 tailstock with fine adjustment - 1 internal grinding spindle - Fixed dressing device - Coolant tank - 1 steady rest with three supports

Stanje: dober (rabljeno), Leto izdelave: 2003, Ref. No.: 10618 Manufacturer: KELLENBERGER Model: 600 U No. 33 Year of Manufacture: 2003 Control Type: Conventional Control System: n/a Location: Halberstadt Country of Origin: Switzerland Distance Between Centres: 600 mm Centre Height (standard): 125 mm Centre Height with Elevated Work Blocks on Headstock and Tailstock: 175 - 250 mm Swing Diameter with Lifting Blocks max.: 350 - 500 mm Table Swivel / Each Side: 10° Dwell Time for Table Reversal: 0 - 5 seconds Diameter / Width / Bore: 250 x 13 x 76 mm Grinding Wheel Spindle Speeds: 1500 / 1700 / 2200 / 3600 rpm Grinding Head Swivels: 360° Bedpfx Aisya Dageqsdh Cross Travel of Grinding Head: 285 mm Rapid Traverse of Wheel Head: 40 mm Intermittent Feed per Table Reversal: 0.001 - 0.03 mm/diameter Micro Feed Dial Graduation: 0.001 mm / Ø Infinitely Variable Work Speeds (normal / special): 20-400 / 10-400 Max. Grinding Length: 900 mm Additional Information: The machine can be inspected under power.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2009, obratovalne ure: 1.000 h, največja hitrost vretena: 2.600 obr/min, potovalna razdalja osi X: 360 mm, pomik osi Y: 120 mm, pomik po osi Z: 980 mm, moč vretenovega motorja: 22.000 W, skupna masa: 7.000 kg, proizvajalec krmilnikov: SIEMENS, model krmilnika: 840D Solution Line, število osi: 4, Ta 4-osna stružnica tipa SPINNER TC800 je bila izdelana leta 2009. Opremljena je z radialnim orodjarnikom in nadzorno enoto Siemens, ki zagotavlja zanesljivo delovanje. S približno 1.000 urami delovanja je bila ta naprava komaj uporabljena. Če iščete visokokakovostne strojne zmogljivosti, razmislite o horizontalni stružnici SPINNER TC800, ki jo ponujamo v prodajo. Za več informacij nas kontaktirajte. • Nadzorna enota: Siemens 840D Solution Line • Hitri premik osi X: približno 18 m/min • Hitri premik osi Z: približno 24 m/min • Hitrost glavnega vretena: do približno 4000 vrt/min • Moč glavnega vretena: približno 24 kW (100 %) • Moč glavnega vretena: približno 33 kW (40 %) • Vretenčni konus: A11 Bdodpfoyv Epvox Aiqjh • Premer obdelovanca: približno 77 mm • Pomnoževalno vreteno: Da • Hitrost pomnoževalnega vretena: do približno 5000 vrt/min • Moč pomnoževalnega vretena: približno 15 kW • Konus pomnoževalnega vretena: A6 • Premer obdelovanca pomnoževalnega vretena: približno 52 mm • Tip orodjarnega sistema: VDI 50 • Število orodjarnih mest: 12 • Pogonska orodja: Da • Število pogonskih orodij: do 12 • Hitrost pogonskih orodij: do približno 4000 vrt/min • Največji premer obdelovanca: približno 500 mm • Največji premer obdelovanca nad posteljo: približno 800 mm • Največja dolžina obdelovanca: približno 800 mm • Podpira: Da • Konus podpira: MK4 • Gib podpira: približno 100 mm • Moč podpira: približno 8500 N • Napetost: 400 V • Frekvenca: 50/60 Hz • Nadzorna napetost: 24 V DC • Tlak stisnjenega zraka: približno 6–10 bar • Hidravlični tlak: približno 70 bar • Odstranjevalec струžine: Da • Sistem za hlajenje: Da • Hidravlična enota: Da • Električna omarica: Da • Radialni orodjarni sistem • Brez konusa • Komaj uporabljena, približno 1.000 ur delovanja Tehnične specifikacije Pomnoževalno vreteno: Da Pogonska orodja: Da

Stanje: zelo dobro (rabljeno), Leto izdelave: 1984, Funkcionalnost: popolnoma funkcionalen, premer struženja nad prečnim suportom: 630 mm, izvrtina vretena: 320 mm, premer struženja: 1.200 mm, premer struženja nad ležiščem sani: 930 mm, stružna dolžina: 3.000 mm, Lathe in very good technical condition, has seen very little use and was not utilized for machining pipes. Poręba TPL 90/3m lathe (also listed in market nomenclature as a variant of the TPK 90 series) is a textbook example of an Oil Country Lathe / Hollow Spindle Lathe. This model meets all the specific criteria for machines intended for the Oil & Gas sector: • Huge spindle bore (Big Bore): Machines in this version have a spindle bore diameter of 320 mm (approx. 12.5 inches), which allows for easy passage of thick-walled drill and casing pipes. • Dual chuck system: The headstock construction allows for the installation of two independent lathe chucks (front and rear, typically with a diameter of 28 inches), which clamp and stabilize the pipe at both ends of the spindle. • Optimal working range: The 3m designation defines the turning length between centers (3000 mm), which, combined with the swing over bed of 930 mm (hence the 90 in the model name), enables machining of massive pipeline elements. • Extreme rigidity: FUM POREBA products are renowned for their monolithic, very wide, and heavy cast iron beds, which effectively dampen the significant vibrations generated during thread cutting, especially with tapered threads. In international used machinery catalogs, this specific Poręba model is categorized directly under Oil Field Lathes. TECHNICAL DATA: Geometric parameters and machining ranges • Swing over bed: 930 mm / 36.6" • Swing over cross slide: 630 mm / 24.8" • Swing in gap: 1200 mm / 47.2" • Maximum turning length between centers: 3000 mm / 120" • Bed width: 585 mm / 23.0" Headstock • Spindle bore diameter (Hollow Spindle): 320 mm / 12.6" (classified in US nomenclature as 12.5" version) • Spindle speed range: 5 – 250 rpm or modified versions up to 710 rpm • Number of spindle speed steps: 18 Feed and threading system • Longitudinal feed range: 0.1 – 12.8 mm/rev / 0.004 – 0.504 in/rev • Cross feed range: 0.05 – 6.4 mm/rev / 0.002 – 0.252 in/rev • Types of threads cut: Metric, Inch (Whitworth), Module, Diametral Pitch (DP) Tailstock • Tailstock quill diameter: 130 mm / 5.1" • Tailstock quill stroke: 300 mm / 11.8" • Quill taper: Morse No. 6 (MT6) Drive and overall dimensions • Main motor power: 22 kW / 29.5 HP Bdodpfx Aijy Sf Azsqoh • Total machine length: approx. 5500 mm / 216.5" • Total machine width: approx. 1750 mm / 68.9" • Total machine height: approx. 1500 mm / 59.0" • Total machine weight: approx. 8000 kg / 17,630 lbs

Stanje: rabljeno, Leto izdelave: 1976, Funkcionalnost: nepreverjeno, skupna dolžina: 4.100 mm, skupna širina: 1.900 mm, skupna višina: 1.900 mm, širina postelje: 550 mm, največja hitrost vrtenja: 1.800 obr/min, Na prodaju je Boehringer DM550 tokarski stroj s vodilnim/vlečnim vretenom iz leta 1976 (18,5 kW). DM 550 omogoča premer vrtenja približno 550 mm (preko ležišča) in ponuja visoko stabilnost za zahtevna in natančna stružna opravila. Stroj je v stanju, primernem za svojo starost, ni bil testiran in se prodaja v trenutnem stanju. Bodpfx Aiexyxu Doqodh

Stanje: rabljeno, Leto izdelave: 1998, Tehnične podrobnosti: Bedpju Ngrqofx Aiqjdh Višina profila: 180 mm Največji premer brusilnega diska: 200 mm / premer krožnega brusilnega diska Premer luknje brusilnega diska: ni podatka Število vrtljajev brusilnega vretena: 2800 vrt/min Velikost mize: D x Š: 500 x 160 mm Napetost: 220 / 380 V Skupna poraba moči: 3,0 kW Približna teža stroja: 0,57 t Približne dimenzije stroja (D x Š x V): 1,28 x 1,0 x 1,75 m Uporaba za ploščno brušenje (stroja za brušenje s krožnimi diski) Magnetni nosilec: D x Š = 680 x 200 mm; nagib približno 15°; vrtenje 360° po radialni skali Magnet: tip S2D; permanentni magnet, površina pritrditve 300 x 150 mm Nosilec brusilnega diska: - Vertikalna nastavitev = dolžina 180 mm, ročna; nagib = približno 45° desno/levo, ročno Upravljanje prek upravljalne plošče na stroju. Rezervoar za hladilno tekočino s črpalko in dovodo.

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 1998, Graver Brusilni stroj Znamka: Deckel Model: S0 Leto izdelave: 1998 – obnovljen, na novo prebarvan RAL7035 svetlo siva / RAL7012 bazalt siva Bedpfx Aoy Drkcjiqsdh Št. stroja: 26230 Garancija: 12 mesecev za enosmensko obratovanje od dneva dobave. Pri strojih zunaj našega severnobavarskega distributivnega območja stroške poti krije kupec. Dodatna oprema: - Brusilni kamen s prirobnico - Navodila za uporabo Vključno z novo elektriko Vklopni/izklopni stikalo v novem ohišju s tuljavo za podpovratno napetost za izvedbo zaščite pred ponovnim zagonem npr. ob izpadu elektrike ali izvleku omrežnega vtikača Rabljeno kot vidno Stroj ustreza tehničnemu stanju iz časa leta izdelave.

Stanje: rabljeno, WEBSTER & BENNETT EV 36” VISOKOHITROSTNI VERTIKALNI STRUŽNIK IZDELOVALEC: WEBSTER & BENNETT, IZ ANGLIJE MODEL: EV 36” PREMER MIZE: 915 mm ZAMAH: 1168 mm VIŠINA POD NOSILCEM: 533 - 1016 mm HITROST: 13,5 - 300 rpm PODAJANJE: 0,005-0,250 palca/min GLAVNA MOČ: 40 KM DODATNO: - VISOKOHITROSTNA MIZA - STROJ IZ SERIJE EV Bdjdpsxp Na Nefx Aiqsh - DVIGLJIV NOSILEC - VARNOSTNI ZAŠČITNI ELEMENTI - KOMPLET ČELJUSTI - POPOLNOMA FUNKCIONALEN - DOBRO OHRANJENA VODILA
