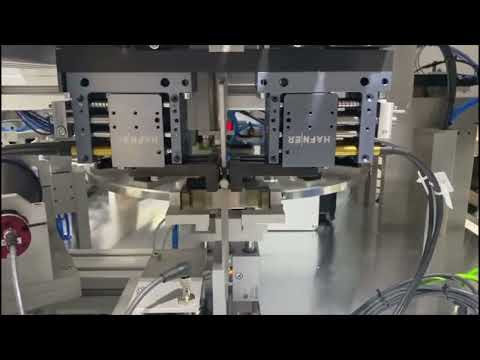

Samodejni merilni sistem (kot Vester)

IMTS Messanlage, Rissprüfung

Stanje: pripravljen za uporabo (rabljen), Two identical Keyence measuring devices are available. Image sensor: 1-inch 6.6 megapixel CMOS Lens: Double telecentric lens Wide field diameter/length: 100 mm / 200 mm High precision diameter/length: 25 mm / 125 mm Repeatability: - Without stage movement: ±1 µm (wide field), ±0.5 µm (high precision) - With stage movement: ±2 µm (wide field), ±1.5 µm (high precision) Measurement accuracy (±2 sigma): - Without tracking: ±5 µm (wide field), ±2 µm (high precision) Nsdpsthmffefx Ag Eedd - With tracking: ±(7 + 0.02L) µm (wide field), ±(4 + 0.02L) µm (high precision)

Stanje: rabljeno, TECHNICAL DATA SPINDLES - Number of spindles: 6 - Bar passage: 40 mm - Rotational speed: 7,000 rpm - Spindle power: 13 / 24 kW CONTROLLED AXES: 27 - Slide unit 1.1: X and Z axes, NC-controlled - Slide unit 1.2: X and Z axes, NC-controlled - Slide unit 2.1: X and Z axes, NC-controlled - Slide unit 2.2: X and Z axes, NC-controlled - Slide unit 3.1: X and Z axes, NC-controlled - Slide unit 3.2: Z axis, NC-controlled - Slide unit 4.1: X and Z axes, NC-controlled - Slide unit 4.2: Z axis, NC-controlled Ndsdpfx Aeuhanteg Eod - Slide unit 5.1: X and Z axes, NC-controlled - Slide unit 5.2: Z axis, NC-controlled - Slide unit 6.1: Z axis, NC-controlled + SCARA axis - Slide unit 6.2: X and Z axes, NC-controlled - Slide unit 6.3: X axis, NC-controlled ELECTRICAL SUPPLY - Voltage: 400 V - Frequency: 50 Hz - Installed power: 65 kW DIMENSIONS AND WEIGHT - Footprint: 3,329 x 2,032 mm - Height: 2,654 mm - Weight: 7,100 kg OPERATING HOURS - Power-on hours: 45,965 h - Production hours: 19,065 h ACCESSORIES - Siemens 840D CNC (PL) with dual NCU - 2 CNC operating panels - 6 TOPLUS collet receivers with integrated stop - 1 counter-spindle in position 6.1 - Clamping device on counter-spindle: Röhm chuck KFD-HS 110/3 - Counter-spindle internal coolant supply - CNC options for counter-spindle / polygon turning attachment - Rear machining system on slide 6.2: 3x fixed - Preparation for 2 additional operations with electronic shaft, positions 1.2.3 - Preparation for 2 additional operations with electronic shaft, positions 4.5.6 - STAUBLI robot, type TX60 (6 axes) - Robot gripper, external double clamping type PZN50 - Swiveling plate (4 positions) - KNOLL coolant tank with articulated chip conveyor, 2 HP pumps at 40 bar - Büschel oil mist extraction system - RIEDEL cooling system - ARTIS preparation

Leto izdelave: 2002, Stanje: skoraj kot novo (rabljeno), številka stroja/vozila: 16.34.02, 6-matrični, 6-udarecni vijacni stroj (Header) MULTIPRESS MP610LS Maks. premer odreza (500 N/mm²): 12 mm Maks. dolžina odreza: 105 mm Maks. dolžina izmeta (na strani matrice): 80 mm Ndsdpeh Tkrajfx Ag Esd Maks. dolžina predizmeta: 23 mm Maks. hitrost: 180 kosov na minuto

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 7 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 20 [mm] - Max. machinable length: 200 [mm] - Spindle speed: 10,000 [rpm] - Spindle drive power: 3.7 [kW] - Minimum C-axis resolution: 0.001 [degrees] SUB SPINDLE - Max. bar diameter: 20 [mm] - Spindle speed: 8,000 [rpm] - Spindle drive power: 1.5 [kW] - Minimum C-axis resolution: 0.001 [degrees] TOOL HOLDER 1 - Number of positions: 7 - Number of driven positions: 3 - Driven tool speed: 5,000 [rpm] FRONT TOOL POST - Number of positions: 4 BACKWORKING - Number of positions: 3 ELECTRICAL SUPPLY - Supply voltage: 400 [V] WEIGHT AND DIMENSIONS - Footprint: 2,110 x 1,085 [mm] Nedpfx Agjuhazme Esdd - Machine height: 1,832 [mm] - Machine weight: 2,200 [kg] MACHINE HOURS - Operating hours: 44,325 [h] ACCESSORIES - Control: Meldas - Driven guide bushing - Parts catcher - Parts conveyor belt - Parts ejector - Coolant tank: CoolBlaster * with high-pressure pump: 138 [bar] - Bar feeder: LNS Alpha ST320 - Fire suppression system * * Please note: Functionality not guaranteed. Must be checked by a qualified company on behalf of the buyer. - Electrical transformer

Leto izdelave: 2019, Stanje: pripravljen za uporabo (rabljen), Connected load: 84 kVA, Length: 5065 mm, Width: 1100 mm, Height: 1530 mm. Ndjdpfxjg A Trgj Ag Esd

Stanje: dober (rabljeno), Leto izdelave: 1992, 1 used surface grinding machine Manufacturer: ELB Model: SUPER - RUBIN 024 CNC Ndsdpfoi Ra Tyjx Ag Eed Year of manufacture: 1992 Travel paths: Grinding length: 600 mm Grinding width: 275 mm Grinding height: 375 mm Table clamping surface: 900 x 300 mm Table load capacity: 300 kg Vertical feed: max. 300 mm/min Cross feed: max. 2,000 mm/min Control system: UNICON Grinding wheels are included in the scope of delivery, see photos.

Stanje: dober (rabljeno), STAR SV-32 CNC Sliding Headstock Lathe Ndodeu Uicyjpfx Ag Esd TECHNICAL DATA Main Spindle, Bar Capacity: 32 mm Travel: 310 mm Spindle Speed: 7,000 rpm Spindle Drive Power: 7.5 kW Minimum Increment, C-Axis: 0.01° Sub Spindle, Bar Capacity: 32 mm Spindle Speed: 7,000 rpm Spindle Drive Power: 7.5 kW C-Axis Resolution: 0.01° Turret: Number of Tool Stations: 10 of which driven: 10 Speed of Driven Tools: 5,700 rpm Driven Tools, Power: 2.8 kW Tool Holder: Number of Tools: 4 of which driven: 3 Speed of Driven Tools: 6,000 rpm Weight and Dimensions: Weight: 3,800 kg Dimensions: 2,700 x 1,400 x 2,400 mm SCOPE OF SUPPLY Includes (not limited to): CNC Control: Fanuc Fire Suppression System: Siemens Oil Mist Separator: Donaldson Transformer High-Pressure Pump Parts Conveyor Chip Conveyor Precise scope of delivery as per photo documentation. No guarantee is given for the correctness, completeness, or currentness of the information provided.

Leto izdelave: 1996, Stanje: rabljeno, Schütte SF 26S DNT Year of manufacture: 1996 Control: Siemens 840C Number of spindles: 6 Max. bar diameter [mm]: 26 Ndedpfx Asi Hb Szog Eod Bar loader magazine: Cucchi BLT Multi-6 (year 2015) Positions I + III + IV + VI: Longitudinal and cross slides Positions II + V: CNC slides Feed in position VI Pick-off device in position VI Coolant system Ruez hinge belt conveyor integrated in machine bed Knoll hinge belt conveyor 280 S-1/40 ID 26565 (external) Electrostatic separator ISI RON/A 2500A, ID 26295

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 9 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 32 mm - Travel: 310 mm - Spindle speed: 280 – 7,000 rpm - Spindle drive power: 7.5 kW - Minimum C-axis resolution: 0.01° SUB SPINDLE - Max. bar diameter: 32 mm - Z-axis travel: 150 mm - Spindle speed: 280 – 7,000 rpm - Spindle drive power: 3.7 kW - Minimum C-axis resolution: 0.01° - Number of turret heads: 1 UPPER TURRET - Number of positions: 10 - Number of driven positions: 10 - Driven tool speed: 5,700 rpm - Driven tool power: 2.8 kW BUSHING HOLDER 1 - Number of positions: 4 - Number of driven positions: 3 - Driven tool speed: 6,000 rpm ELECTRICAL SPECIFICATIONS Ndedpfx Ajuha Eleg Eed - Supply voltage: 200 V - Total drive: 8 kVA WEIGHT AND DIMENSIONS - Footprint: 2,645 x 1,403 mm - Machine height: 1,680 mm - Machine weight: 3,880 kg EQUIPMENT - Control: Fanuc 16 iTB - 3-color status lamp - Parts removal - Parts conveyor belt - Chip conveyor - Coolant tank - Bar feeder: IEMCA BOSS 432/32LL - Electrical transformer

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 1991, Funkcionalnost: popolnoma funkcionalen, skupna masa: 35.000 kg, stiskalna sila: 250 t, vrsta vhodnega toka: trifazni, moč: 30 kW (40,79 KM), prebijalna sila: 250 t, vhodna napetost: 200 V, Oprema: varnostna svetlobna zapora, AIDA NC2-250(1) 250t Eccentric Press in Excellent Condition /ctA2/ Manufacturer: AIDA Model: NC2-250(1) Press Force: 160t Year of Manufacture: approx. 1991 Stroke Length: 170 mm Clearance Over Table: (adjustable) 280–400 mm Table Dimensions: 2700 x 760 mm Ram Dimensions: 2100 x 700 mm Electrical Supply: 3x200V (!!), 30kW – Japanese standard Net Weight: 35,000 kg Dimensions: 2760 x 2800 x 3980 mm Ndsdpsu Dxb Tjfx Ag Esd Automatic lubrication system. Automatic cutting oil dosing – RAZIOL EST-02 Optional with Decoiler and Straightener.
