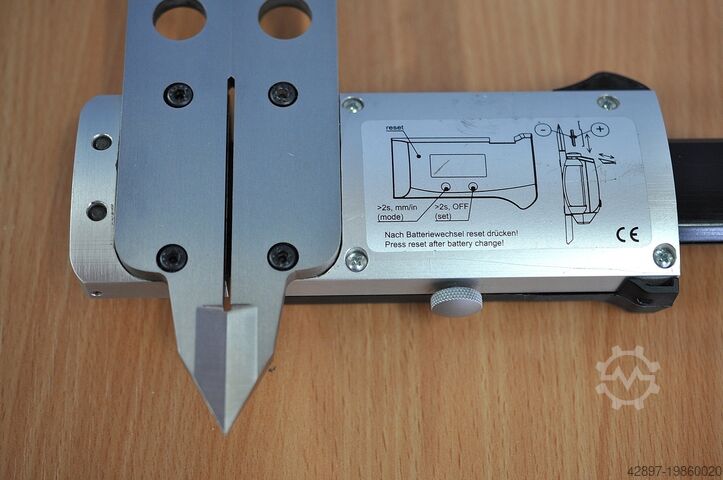

Digitalni delavniški pomični merilnik

Garant - Mahr MarCal 18 ESA 800mm

Stanje: rabljeno, Leto izdelave: 2013, Technical Specifications: X-axis travel: 760 mm y-axis travel: 460 mm z-axis travel: 460 mm Control: Heidenhain TNC 620 Power-on hours: 20,246 h Spindle operating hours: 7,724 h Spindle speed: 12,000 rpm Spindle torque: 75 - 95 Nm Spindle taper: SK40 Tool magazine with: 24 positions Table size: 900 x 410 mm Max. table load: 350 kg Feed range: n/a Rapid traverse: 36 m/min Interface: RS232 Control voltage: 24 V DC Compressed air connection: 6 / 8 bar Total power requirement: 20 kVA Machine weight approx.: 6.0 t Dimensions of coolant system: 1.7 x 0.7 x 1.35 m Approx. machine dimensions (LxWxH): 1.9 x 2.3 x 2.45 m TNC 620 (Contour control with up to 5 controlled axes, especially suitable for universal milling), can be integrated into network Safety doors with shatterproof plastic windows Chip conveyor Blodpfevhbpdsx Afnsd Hydraulic unit Coolant filtration unit Rittal chiller on control cabinet Work area interior lighting Handheld control unit

Stanje: dober (rabljeno), Leto izdelave: 1979, Model building milling machine, universal model milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine, model making mill -Manufacturer: Zimmermann, Universal Milling Machine Type FZ 1 with extensive accessories -Rotatable cross table: 490 x 400 mm -Traverse paths: X/Y/Z 320/385/430 mm -Spindle taper: SK30 -Drive power: 1.1 kW -Speeds: 560 to 14,000 rpm, 8 steps Bledpfxenzpx Rs Afnjd -Accessories: included, see photos -Dimensions: 1000/680/H1970 mm -Weight: 477 kg

Leto izdelave: 2009, Stanje: rabljeno, Technical details: Blsdpfxewp I S Ho Afnsd Tool holder: Ø 54 mm Voltage: 3-phase AC 400 V / 50–60 Hz Compressed air connection: 6 bar Total power requirement: 11 kW Total weight approx.: 120 kg Dimensions (L x W x H): 0.7 x 0.65 x 1.7 m Induction shrink fit machine with water cooling (30-liter tank, integrated in housing) Application: For ultra-fast tool changes via targeted inductive heating Cooling medium: Emulsion Suitable for Ø 3–50 mm carbide (HM) and Ø 6–50 mm HSS tools Tool holder Ø 54 mm Runout accuracy < 0.003 mm ThermoGrip shrink chuck ISGS 3200-1, Ø 3–32 mm Operation via control panel

Stanje: zelo dobro (rabljeno), Knuth UFM 2 univerzalna rezkalna naprava Tehnične specifikacije Potovalna razdalja X-os (ročno) 800 mm Potovalna razdalja X-os 750 mm Potovalna razdalja Y-os 300 mm Potovalna razdalja Z-os 400 mm Velikost mize 1320x320 mm T-utori 5x14x63 mm Podajalne hitrosti Podajalna razdalja Y-os (8) 20 - 360 mm/min Podajalna razdalja Z-os 600 mm/min Hitrost vretena (12) 58 - 1800 min-1 Stožec navpičnega vretena SK 40 Razdalja med konico vretena in mizo 0 - 400 mm Zasuk glave 45° Stožec vodoravnega vretena SK 50 Pogon Glavna moč motorja 4 kW Moč motorja na osi Z 0,75 kW Moč napajalnega motorja 0,55 kW Moč motorja hladilne črpalke 0,09 kW Zmogljivost hladilne črpalke 25 l/min Dimenzije in teža Dimenzije 1900x1720x1750 mm Teža 2100 kg Financiranje preko naše banke je prav tako mogoče. komplett-konzept.leasingo.de Blodpenfu Riofx Afnsd Druge nove in rabljene artikle najdete v naši spletni trgovini! Mednarodni stroški poštnine na zahtevo!

Stanje: novo, TC 165 x 750V Image shows MIOTAL® TC 180 x 1000 Centre distance: 750 mm Centre height: 165 mm Swing over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle mount: DIN 55029 (Camlock) D1-4 Spindle bore: Ø 40 mm Max. chuck diameter: Ø 200 mm Spindle speed, stepless: 30 - 2,000 rpm Mechanical gearbox stages: 3 Motor power: 2.2 kW Longitudinal feed Z: (40) 0.044 - 1.96 mm/rev Cross feed X: (40) 0.022 - 0.98 mm/rev Metric threads: (32) 0.4 - 7.0 mm Inch threads: (32) 4 - 56 TPI Module threads: (32) 0.4 - 7.0 Diametral threads: (32) 7.5 - 112 Tailstock quill diameter: Ø 40 mm Tailstock quill taper: MT 3 Quill stroke: 100 mm Lateral offset: ± 10 mm Weight, approx.: 650 kg Features: - Inspection certificate to DIN standards - Precise, hardened and ground guideways - Robust headstock with oil circulation lubrication, precision spindle bearings, gears hardened and ground for long-lasting quality Bsdjir Igwspfx Afnjld - Electromagnetic spindle brake (TC), frequency inverter with electric braking system (V models) - Torsion-resistant Meehanite cast iron beds, stress-relieved and extensively ribbed for maximum smoothness - Electrical equipment by SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse pushbutton for main spindle - CE / IEC as well as German documentation and German service Standard equipment (included accessories): - Machine stand with splash guard back panel - 3-jaw chuck - 4-way toolpost - Foot pedal with mechanical brake - Coolant system - Chuck guard and spindle guard in compliance with European CE safety standards - 1 fixed centre for main spindle - 1 fixed centre MT3 - 1 test report - Safety guards and electrical equipment according to CE - Reducing sleeve for main spindle operating tool Available options for this lathe: - 3-axis digital display - Multifix quick-change toolpost system Also available as a geared head variant.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2015, Heidenhain TNC 620 V2 control Travel X/Y/Z: 760/480/480 mm Spindle speed: 12,000 rpm Tool magazine for 24 tools, SK40 Table size: 900 x 410 mm Chip conveyor Bledpfev Rr Hxex Afned Automation / robot

Stanje: rabljeno, Paleta s T-utoroma, primerna za DMG DMC 100 H in DMG DMC 100 U. Na voljo je še več palet. Bedpfx Aeqx Uh Njfnsld

Stanje: zelo dobro (rabljeno), Henri Hauser M5 DR koordinatni vrtalni stroj Premer vretena: 90 mm X-pomik: 700 mm Y-pomik: 500 mm Zmogljivost vrtanja v jeklu: 40 mm Vpenjanje vretena MK: 4 Hod vrtalne vretene: 170 mm Število vrtljajev vretena: 2 Brezstopenjsko: 10-2000 obr/min Maksimalen premer izvlake: 230 mm Mere mize - vzdolžno: 900 mm Mere mize - prečno: 770 mm Vertikalni hod prečne grede: 630 mm Vrtalnih vreten: 6 kos Od/do: 0,02-0,20 obr/min Prehod med stojali: 900 mm Prehod med vretenom in mizo: 815 mm Motor vretena: 4,0 KM Skupna priključna moč: 380 V Teža stroja cca: 3,9 t Popolna zaprtje tovarne, velika izbira skladiščnih podestov, paletnih regalov, policnih regalov, karuselnih regalov. Kakovostni industrijski stroji, stružnice, brusilni stroji, ročna orodja. Možnost financiranja preko naše banke. komplett-konzept.leasingo.de Več novih in rabljenih artiklov najdete v naši spletni trgovini! Blsdpfeg Ibuxsx Afnjd Mednarodni stroški pošiljanja na zahtevo!

Stanje: novo, WMD45 - ROGI Drilling and Milling Machine Drilling capacity ----- 45 mm Face milling capacity ----- 80 mm End milling capacity ----- 32 mm Worktable dimensions ----- 800 x 240 mm T-slot size ----- 14 mm Spindle taper ----- ISO30 Maximum distance spindle - table ----- 460 mm Spindle travel ----- 120 mm Bedega T Anopfx Afnsld Head tiltable ----- Left / Right 90 Degrees Table longitudinal travel ----- 560 mm Table cross travel ----- 230 mm Speed range ----- 75 - 3200 rpm Weight ----- 350 KG Motor ----- 1.1 KW Voltage ----- 400V-3Ph INCLUDES * Drill chuck with shank ISO30 - B16 * Forward/Reverse switch * Spindle guard * Fine adjustment * 2-speed motor * Drift key * Tapping function * Digital depth stop * CE plug OPTIONS * Base cabinet * Milling vice * ISO30 tool holder + 12 collets in case * Milling cutter set

Stanje: dober (rabljeno), Leto izdelave: 2008, stružna dolžina: 2.000 mm, hitrost pomika os X: 3.000 m/min, hitrost podajanja os Z: 3.000 m/min, HeidenHain ND780 3-osni sistem za merjenje hitrosti vretena Variomatic razpon obratov Luneta Multifix sistem za vpenjanje orodja Dolžina struženja: 2000 mm Premer struženja nad ležiščem Ø: 830 mm Premer struženja nad suportom: 420 mm Premer struženja nad izrekom Ø: 1000 mm Dolžina izreka: 295 mm Premer vretenine: 110 mm Širina ležišča: 560 mm Pinola: Ø 105 mm Hod pinole: 225 mm Vpenjalna glava vretena: 6Mk Moč: 15 kW Obrati: 2000 obr/min Pomik X-os: 3000 mm/min Blsdpfjxf Ey Rox Afnjd Pomik Z-os: 3000 mm/min Teža obdelovanca: 2400 kg Dolžina: 3700 mm Širina: 1900 mm Višina: 1900 mm Teža: 5500 kg Prosimo, upoštevajte: Informacije na tej strani so bile sestavljene po naših najboljših močeh in, kadar je bilo mogoče, pridobljene od proizvajalca. Podatki so predstavljeni v dobri veri, vendar točnosti ni mogoče zagotoviti. Zato ne predstavljajo pravne zastopanosti ali pogodbenih pogojev. Priporočamo, da vse bistvene podatke preverite sami.
