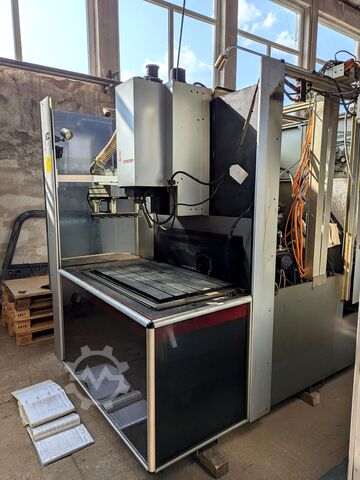

Stroj za elektroerozijsko globljenjeEXERON
S 313 MF
Podatki o stroju
- Opis stroja:
- Stroj za elektroerozijsko globljenje
- Proizvajalec:
- EXERON
- Model:
- S 313 MF
- Leto izdelave:
- 2001
- Stanje:
- nepreverjeno (rabljeno)
- funkcionalnost:
- nepreverjeno
Tehnične podrobnosti
- Potovalna razdalja osi X:
- 620 mm
- Pomik osi Y:
- 420 mm
- Pomik po osi Z:
- 400 mm
- Obremenitev mize:
- 1.500 kg
- Največja hitrost vožnje:
- 5.000 mm/min
zagotovitev
- Lokacija:
- Baden-Württemberg, Nemčija
– Razdalja: pribl. 545 km
- Razpoložljivost:
- takoj po zaključku dražbe
- Dobavni pogoji:
- FCA
50,00 € (zavezujoče)
brezplačno
Opis
No reserve price – guaranteed sale to the highest bidder!
The payment deadline for the machine is 20/11/2025! Placing a bid obliges you to collect the machine on time between 01/12/2025 and 05/12/2025!
TECHNICAL DETAILS
Travel distances
Travel – X: 620 mm
Travel – Y: 420 mm
Travel – Z: 400 mm
Traverse speed: 5,000 mm/min
Display accuracy: < 1 µm
Positioning accuracy X-axis: < 10 µm
Positioning accuracy Y-axis: < 10 µm
Positioning accuracy Z-axis: < 10 µm
Working area and load capacity
Permissible workpiece dimension: 950 × 550 × 360 mm
Max. permissible table load: 1,500 kg
Max. permissible electrode weight with pneumatic clamp – static: 50 kg
Max. permissible electrode weight directly on quill: 250 kg
Min. distance between table and electrode holder: 150 mm
Max. distance between table and electrode holder: 450 mm
Max. permissible electrode weight for concentric fixture: 800 kg
Static: 50 kg
Rotating: 35 kg
Positioning/eroding: 25 kg
Max. mass moment of inertia: 800 kg/cm²
Clamping plate
Length: 600 mm
Width: 1,000 mm
T-slots (according to DIN 650) – width: 12 H8 mm
T-slot pitch: 100 mm
Compressed air and dielectric
Compressed air supply – with cartridge filter: 500 l/h
Compressed air consumption – intermittently (gap filter and clamping device): approx. 20 l/min
Maximum dielectric tank capacity: approx. 900 l
Gap filter system – backflushable
Filter unit: 1
Filtration precision: 1 µm
Filter capacity: 60–0 l/min
Pump power consumption: 0.55 kW
Cartridge filter system
Number of cartridge filters: 3
Filtration precision: 5 µm
Filter capacity: 50–0 l/min
Pump power consumption: 0.55 kW
MACHINE DETAILS
Dimensions & weight
Dimensions (L x W x H): 2,600 x 2,500 x 2,500 mm
Machine weight (with control cabinet, without dielectric): < 4,500 kg
System footprint: 6.5 m²
Work tank
Liquid level from table (fluid height): 300 mm
Height – internal: 350 mm
Width – internal: 850 mm
Length – internal: 450 mm
Electrical data
Generator connected load 60 A: 12 kVA
Supply voltage: 400 V
Connection current: 32 A
Protection – 60 A generator fuse or circuit breaker: with K characteristic
Working current according to the generator – min./max.: 60/100 A
EQUIPMENT

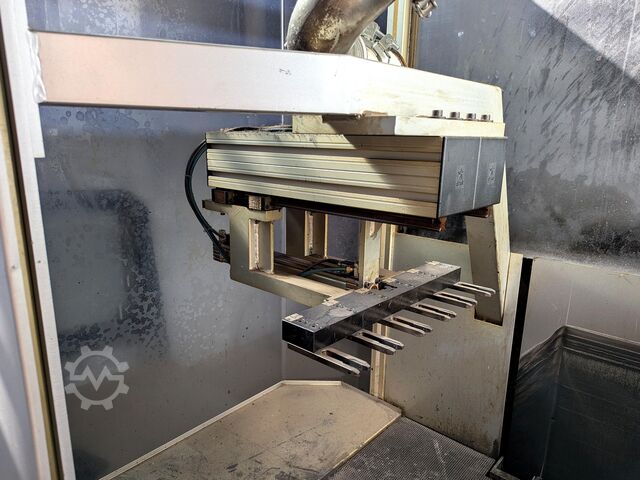

C-axis
Pneumatic clamping system
Backflushable gap filter system
Cartridge filter system
Dielectric tank
Clamping p
