Stroj za brušenje steklenih robov

Enkong ZM9

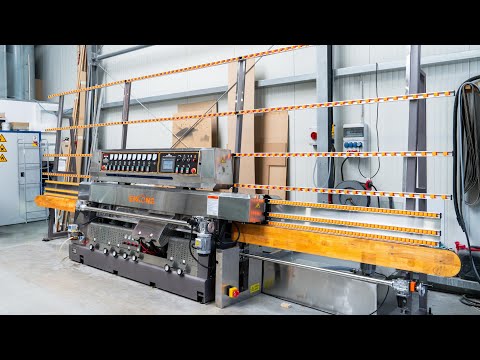

The Enkong ZM9 is a high-performance straight-line glass edging machine with 9 spindles, designed for precise grinding and polishing of straight edges and 45° arrises on glass panels. With its robust construction and modern control technology, the machine stands out for its high precision, durability, and user-friendliness.
Dsdpfoyzfimox Ah Iecf

Whether in architectural, furniture, or industrial glass production – the ZM9 offers a reliable solution for efficient glass processing and meets all European safety and quality standards (CE-compliant).

Features:

- 9 spindles for grinding and polishing straight edges and 45° arrises

- PLC control with touchscreen display: Simple adjustment of glass thickness, targeted control of individual motors, pneumatic raising and lowering of polishing motors

- Infeed and outfeed conveyor with toothed belt for maximum transport accuracy and smooth operation

- Stable machine frame made of solid cast iron – low vibration and long service life

- Operation and documentation entirely in German

- Central, oil-based lubrication system for low maintenance

- Electrical components according to ISO/DIN standard – European standard quality

- Glass thickness sensor with automatic safety shutdown for incorrect glass thickness

- Automatic mode with individual on/off switching of polishing wheels

- Stainless steel water tank with integrated pump

- Feed direction from right to left

- CE compliance ensures maximum safety and standard conformity

Technical Data:
Number of spindles 9 pcs
Min. glass size 80 × 80 mm
Processable glass thickness 3–25 mm
Processing speed 1.26–6.0 m/min
Weight 2800 kg
Installed power 19.08 kW
Dimensions (L × W × H) 6500 × 1400 × 2500 mm
Arris (bevel) 45°
