Stroj za brizganje

Engel Victory 330H/200V/140 combi Ecodrive

Engel Victory 330H/200V/140 Combi Ecodrive / Production line with Sepro Multi Inject 20 robot / Operating hours: approx. 8,000 h in automatic mode
Year of manufacture: 2018

Injection unit:
Screw diameter: 30 mm
Shot weight: approx. 100 g
Injection pressure: 2400 bar
Plasticizing volume: 113 ccm

Clamping unit:
Clamping force: 140 t
Tie bar spacing: 0x0 mm
Lhsdsxqym Nopfx Ah Dsn
Platen dimensions: 750x750 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: CC 300 - Touchscreen

Additional equipment:
2K injection moulding machine with rotary table and robot
Tie-bar-less hybrid machine: energy-saving, high speed, very quiet
Very good technical condition, machine operated in a certified cleanroom
Operating hours: approx. 8,000 in automatic mode
Total operating hours: 12,005 h
Euromap 67
Robot interface
Air valves x 6
Hydraulic core pull x 5
Control system with 16 hot runner zones
Reinforced bimetallic injection units
Main drives - 2x inverter-controlled servomotors
Proportional valves on injection units – highly precise dosing
Integrated system for pressure quality monitoring (Sensor Kistler) – mould cavity pressure measurement
Screw diameter of vertical injection unit: ⌀25 mm – approx. 58 g / PS
Optional: original Foboha rotary table available for additional price
Rotary table diameter: 740 mm
Both injection units can be retrofitted with alternative screw diameters (smaller/larger)

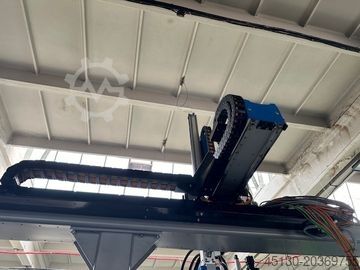

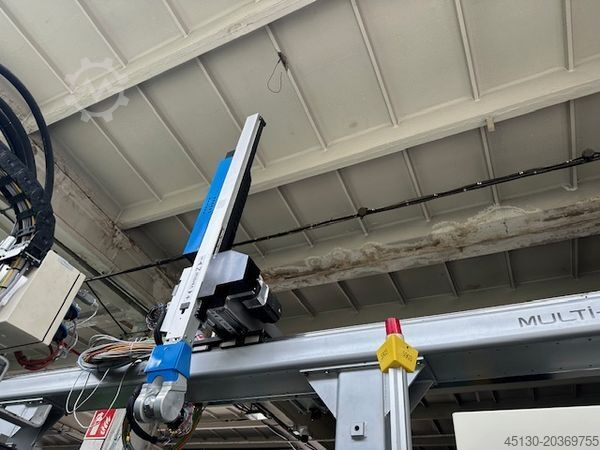

Sepro Multi Inject 20 robot
Year of manufacture: 2018
4-axis robot: 4 axes driven by servomotors (electric): X, Y, Z, B (rotation)
Axis travels approx.: X-4000, Y-1200, Z-1500
Automatic axis lubrication
Touch-screen pendant control
Robot safety package
Robot with adapter and protective housing
Robot can be bought for extra charge

Dimensions:
Weight: 10,300 kg
L x W x H: 5.56 x 1.76 x 3.46 m

All offered machines are started up and tested by our service technicians prior to sale.
You can request a video showing technical testing of the selected machine, or participate in a live technical demonstration at our facility in Łódź.

Price: On request
