Dvojna poševna žaga

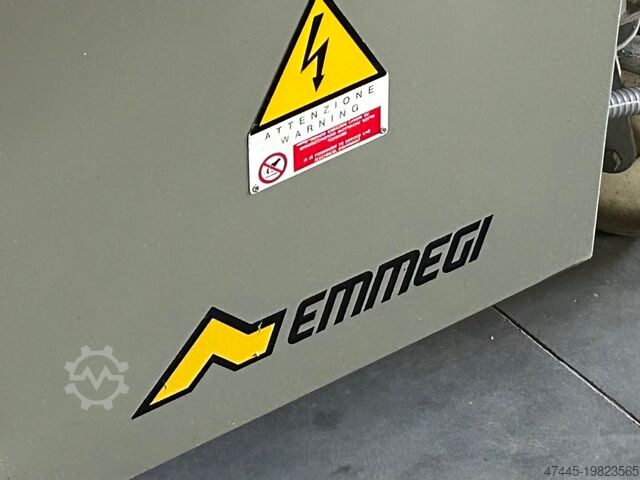

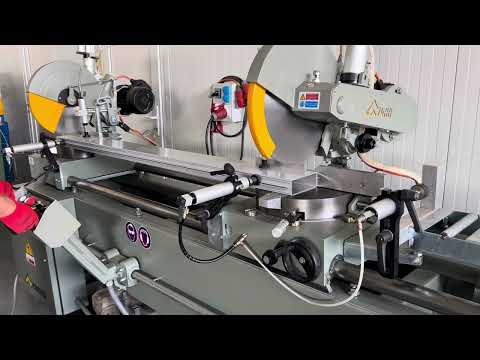

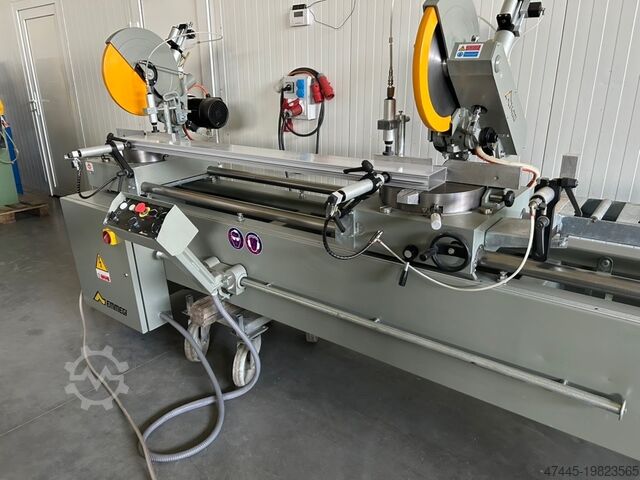

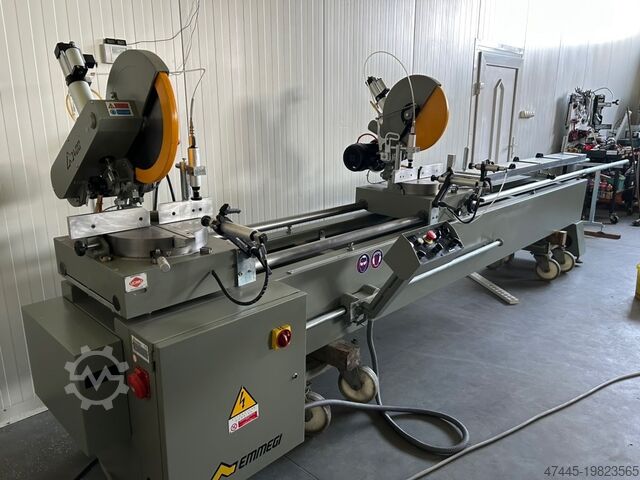

Emmegi Norma 400 TU/4

Stanje: rabljeno, Leto izdelave: 1994, skupna širina: 1.200 mm, skupna dolžina: 4.700 mm, skupna višina: 1.600 mm, Poids : 672 kg - Année de fabrication : 1994 - Documentation disponible : Non - Marquage CE présent : Oui - Certificat CE disponible : Non - Numéro de série : 228822 - Puissance moteur principal [kW] : 4,5 - Longueur de coupe max. [mm] : 4040 - Hauteur de coupe max. [mm] : 150 - Diamètre max. de la lame [mm] : 400 - Diamètre d'alésage de la lame [mm] : 32 Giodsxbf E Sjpfx Afqol - Tension [V] : 380 - Puissance [kW] : 11,2 - Dimensions de transport : 4700mm x 1200mm x 1600mm (L x l x h) - Poids de transport [kg] : 672kg - Nombre de colis de transport : 1 Informations financières TVA : Le prix indiqué s'entend hors TVA TVA/régime de la marge : TVA déductible pour les entreprises Livraison et reprise possibles à tout moment pour tout équipement industriel Yorick Diebels

Stanje: dober (rabljeno), Leto izdelave: 2005, Funkcionalnost: popolnoma funkcionalen, teža obdelovanca (maks.): 1.230 kg, AUTOMATIC DOUBLE-HEAD SAW STB / FIMTEC SD 500 S6 YEAR 2005 Gisdpjr E Alqefx Afqel

Leto izdelave: 2020, Stanje: pripravljen za uporabo (rabljen), Saw blade diameter: 2x400mm, max. cutting length: 4000mm, cutting angle: +/-45°. Documentation available. On-site inspection possible. Giodpjwfg Hbjfx Afqel

Stanje: dober (rabljeno), Leto izdelave: 2009, Comparable to Elumatec, Mecal, Fom, Pertici, etc. Ideal for processing insect screen systems! For saw blade diameter 500mm, cutting length 5000mm Double mitre saw with pneumatically outward swivelling heads, designed for cutting aluminium and PVC profiles. The right, movable saw unit automatically positions itself to the profile length entered in the control system. In addition to the necessary safety equipment, vertical and horizontal clamping devices are included in the scope of delivery. Swivelling the heads The aggregates are swivelled via pneumatic cylinders. Cuts in the mitre range from 90° to 22.5° outward are possible. Intermediate angles can be set manually using a corresponding stop. The cutting area features automatically opening and closing protective hoods. Profile support roller conveyor at the movable unit with clamping device Spray misting system with macro function Gijdoxgpvrjpfx Afqel A suitable extraction system is currently also available as an option!

Stanje: zelo dobro (rabljeno), Leto izdelave: 2007, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 302827, Federhenn profilové obráběcí centrum (vrtání a frézování) SBZ 100G – PRODÁVÁ SE VE SPOJENÍ SE SCHIRMER NC PILOU 1000-G4 ROK 2014 (KOMPLETNÍ LINKA), VIZ INZERÁT SCHIRMER...!! NC-podavač s chapadlem, max. rychlost 200 m/min, maximální délka profilů 3500 mm. Chapadlo je možné pneumaticky nastavit ve 2 osách pro přizpůsobení různým geometriím profilů. Obráběcí stanice koncipována jako G-modul se 2 servopohony v ose Y a Z. Připraveno pro až 14 obráběcích jednotek pro kompletní zpracování PVC, rámových, sloupkových a rámových profilů – vykladač se stolem 2500 x 1500 mm. PC-řízení C 6140, displej, software SBZ 100G, PLC+NC. Modem pro vzdálenou diagnostiku. Nakládací magazín s 9 pozicemi (9 profilů, délka 3500 mm), určený pro rámové profily max. šířky 127 mm. Čtečka čárových kódů. Horizontální pásový dopravník s 9 transportními nosníky s plynulým nastavením. Výkon 18 m/min, rozměry 3000 x 2400 mm. Jednotky: šroubovací jednotka, 2x vrtací jednotka pro hmoždinky nebo sloupkové otvory, 2x vrtací jednotka pro montážní otvory (16 750 ot./min), 2x speciální úpravy (značení uzavírací části), vrtací jednotka pro kování vchodových dveří (otvíravé dovnitř), vrtací jednotka pro olive (3 stupně), frézovací jednotka pro zámkovou skříň. 2 ks frézovacích jednotek pro frézování a vrtání drenážních štěrbin a větracích otvorů, 1 ks pod úhlem. Otočné zařízení (MD a AD okenní systémy). Frézovací jednotka pro frézování PZ a otvorů pro kliku. Gsdownpa Nepfx Afqoil

Leto izdelave: 2021, Stanje: novo, Enoglavni rezalni stroj OMC GIOBI 600, nov Gisdpfx Afehrumasqjl Stroj na zalogi - Žagin list premera 600 mm - Hidro-pnevmatski pomik - Nagib pnevmatski na obe strani, z vnaprej določenimi koti 22,5° – 45° – 90°. Za vmesne kote mehanska ročna zaustavitev - 2 navpična in 2 vodoravna prijemala - Sistem mazanja žaginega lista z razprševanjem meglice - Popolna pnevmatska zaščita

Stanje: rabljeno, Leto izdelave: 2000, Kabel krmilne omarice je bil odrezan, zato znižanje cene. Giedpfx Aex N R U Defqel

Stanje: novo, 40 MP je enoglavna žaga, ki reže od zgoraj, s premerom žaginega lista 400 mm. Primerljiva z Emmegi, Elumatec, Pressta-Eisele, Mecal, Fom ipd. Žagarsko mizo se lahko ročno nastavi pod kotom +/- 45°. Gjdpjrfapajfx Afqoil Nagib žagine glave se lahko ročno nastavi od 0° do 45° navzven. Enoglavna žaga 40MP je opremljena z vodoravnimi vpenjalnimi cilindri za pravilno vpenjanje profila, minimalnim mazalnim sistemom in mehansko zaščito žaginega področja. Oglejte si tudi naše rabljene skladiščne stroje znamk Emmegi, Elumatec, Pressta Eisele ipd.

Stanje: novo, Leto izdelave: 2025, The Automatic Basket Cleaning System XTON Smart Cleaner SC1000™ is constructed from stainless steel AISI 304 and acid-resistant stainless steel AISI 316. It is designed for use in various industrial sectors and the automotive industry. The cleaning system is intended for degreasing and cleaning parts contaminated with oil or grease, without damaging the surface of the cleaned components. Cleaning efficiency is enhanced by our proprietary XPOWER Active Cleaner BA fluid, which, in combination with optimal temperature and pressure, effortlessly removes all types of contamination. The system operates in a closed loop at temperatures of up to 80°C. Standard equipment includes a rotating basket with a diameter of 100 cm and a 300-liter tank, which can be optionally thermally insulated to prevent rapid cooling of the cleaning fluid. The Smart Cleaner SC1000™ delivers high cleaning quality, time and energy savings, and safe, user-friendly operation. The cleaning system is designed for the automatic removal of contaminants from surfaces made of cast iron, aluminum, and steel. The design and construction of the Smart Cleaner SC1000™ meet the highest quality standards ISO 9001 and environmental standards ISO 14001. FEATURES: - Rotating basket with a diameter of 100 cm - Heated tank with a capacity of 300 liters - Dual liquid filtration system Gsdpfxou R Urhj Afqsil - Sensors for liquid level and temperature - Oil separator - Height-adjustable feet (up to 100 mm) - XTON Active Cleaner BA (5-liter starter pack) TECHNICAL DATA: - Weight: 200 kg - External dimensions – open chamber (W x D x H): 150 x 120 x 250 cm - External dimensions – closed chamber (W x D x H): 150 x 120 x 140 cm - Diameter of rotating basket: 100 cm - Load capacity of rotating basket: 300 kg - Adjustable working time: 0 – 99 min - Washing/fluid temperature: up to 80°C - Heating power: 9 kW - Tank volume: 300 L - Tank volume up to oil separator: 200 L - Pump capacity: 250 L/min - Spray pressure: 4.5 – 6 bar - Power supply: 3 x 400 V - Safety features: temperature sensor, emergency stop switch, limit switch - Protection rating: IP 54 - Declaration of conformity: CE

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 2024, Completely overhauled: 2024 Control system: Siemens S7 PLC Saw blade max.: 500 mm Motor power: 4.0 kW Saw blade feed: 0–40 mm/s, infinitely adjustable Electronic saw height control Working range, square at 90° max.: 130 x 130 mm Working range, flat at 90° max.: 190 x 130 mm Working range, round at 90° max.: 170 mm Giedouiy Ngjpfx Afqsl The machine has been completely overhauled in-house and is in as-new condition. Among other improvements, the following upgrades have been performed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI operator interface - Conversion to pusher with servo control - New electrical components - New pneumatic hoses - New pneumatic components - Conversion to valve manifold - Enhanced extraction performance - New minimum quantity lubrication system - Replacement of general wear parts - Refurbishment of the enclosure The machine is further equipped with: - Minimum quantity lubrication - Chip separator extension (for high-quality cut surfaces without return marks) - Preload magazine for careful handling of painted/anodized surfaces - Scrap piece ejection via pusher - Hinged scrap piece tray Optional features: - Magazine width: 3000 mm - Pusher length: 6000 mm - Pusher length: 8000 mm - Motor upgrade: 5.5 kW - Bar clamping device for parallel cutting of multiple workpieces - Online support connection - Delivery and commissioning at your facility - Operator training
