Dvojni brusilni stroj z dvojnim diskom - vertikalni.

DISKUS DDS 750 IV CRVA

Stanje: rabljeno, Leto izdelave: 1998, Tehnični podatki: Notranji premer: 63 mm Iaodpju Ngciefx Aa Uer Obodni premer: 320 - 800 mm Globina brušenja: 380 mm Skupna potrebna moč: ca. 1,1 kW Pomik: 0,05 - 0,40 mm/ob / 8 stopenj U/min Teža pribl.: 1060 kg Dimenzije stroja (D x Š x V): 1,1 x 1,1 x 1,4 m Stružnica za zavorne bobne in kolute - Največji/najmanjši premer struženja: 800 / 320 mm - Nosilec zavornega bobna: 63 mm, hod pinole 120 mm - Premik prečnega sanika: vzdolžni hod 380 mm; prečni hod 200 mm - Nosilec orodja: 180 x 140 mm, nosilec orodja 58 mm, stružni nož za držalo izmenljivih ploščic 20 x 20 mm - Upravljanje preko nadzorne plošče

Stanje: dober (rabljeno), Leto izdelave: 2003, Funkcionalnost: popolnoma funkcionalen, teža obdelovanca (maks.): 12.000 kg, dolžina pomika po osi Y: 300 mm, dolžina podajanja os Z: 1.080 mm, premer mize: 1.200 mm, hitrost pomika os X: 3 m/min, hitrost podajanja osi Y: 500 m/min, hitrost podajanja os Z: 3 m/min, vhodni tok: 195 A, premer obdelovanca (maks.): 1.600 mm, dolžina vretena za rezkanje: 450 mm, namizna vrtalna stiskalnica: 400 mm, hitrost vretena (min.): 250 obr/min, skupna masa: 51.000 kg, moč: 115 kW (156,36 KM), Oprema: dokumentacija / priročnik, Liebherr high-performance gear hobbing machine LC1502 in good condition Control: Liebherr LH90 V4, drives by Bosch Rexroth Comprehensive accessories included such as BHG, coolant unit for lubrication and coolant, fume extraction, cutter arbors, various software packages/limit extensions, and complete documentation. Ijdpfxswqm A Te Aa Uear We can also assist with installation and commissioning right up to production, according to your needs!

Stanje: rabljeno, Leto izdelave: 1969, Grinding height: 60 mm Grinding width: 120 mm Isdpfot Hw N Hex Aa Usar Grinding wheel diameter: 600 mm Grinding length: [mm not specified] Workpiece height: 60 mm Total power requirement: 50 kW Machine weight: approx. 7,000 kg Space requirement: [not specified] DISKUS vertical double-sided surface grinding machine in C-frame design with rotary table workpiece feed Model: DDS 600 CRA Year of manufacture: 1969 S/N: 6672 Grinding wheels – diameter x bore each: 600 x 150 mm Grinding wheel height approx.: 60 mm Workpiece transport disc external diameter: 810 mm Workpiece: Max. grinding height x grinding width: approx. 60 x 120 mm Spindle adjustment vertically, each approx.: 150 mm Hydraulic infeed impulses for depth feed: 0.0025 – 0.05 mm Outer diameter of transport disc: approx. 810 mm Rotary table feed rate steplessly adjustable: 14 – 145 mm/s Grinding wheel speed each approx. (24 m/s)/765 rpm Grinding spindle drive each: 22 kW Total drive approx.: 50 kW / 380 V / 50 Hz Machine weight: approx. 7,000 kg Accessories / Special features • Workpiece rotary table device for round transport discs with corresponding cut-outs for inserting components and with automatic discharge of finished parts onto a chute into a transport box. • IONIC measuring control No. 9 So with probe for measuring ground workpiece height and, if required, with automatic hydraulic grinding wheel infeed. • Stepless speed adjustment of the rotary device depending on the grinding dimension and workpiece. • Manual grinding wheel adjustment via corresponding buttons • Hydraulically pivoting dressing unit (RA) between both grinding wheels for simultaneous dressing of both grinding wheels with appropriate compensation and automatic return to the effective workpiece thickness after dressing = high time savings, can be triggered manually as well as via timer • Ampere counters for both grinding spindle drives * Central lubrication system, • Mechanical height check of parts with automatic machine shutdown in case of overheight • Separate control cabinet, separate hydraulic unit, separate large belt filter system, various grinding wheels, various transport discs, etc. This machine is particularly suitable for the simultaneous plane-parallel grinding of workpieces in high-volume production. For example: shims, piston rings, hydraulic components, watch parts, stamped parts, etc. Condition: good – soon ready for demonstration Delivery: ex stock – as inspected Payment: net – upon receipt of invoice

Leto izdelave: 1992, stanje: rabljeno, Grinding height 50 mm Grinding width 120 mm Grinding wheel diameter 600 mm Total power requirement 85 kW Machine weight approx. 9500 kg D I S K U S CNC-controlled, vertical double-sided surface grinding machine with rotating workpiece infeed and IONIC measurement control. Iodpfjt Hw Najx Aa Ujar Type: DDS 600 III PRM - CNC Year of manufacture: 1992, No. 7924 --- Grinding wheel dimensions (each): 600 x 150 x 75 mm (H) Workpiece data: Grinding height approx. 1.5 – 50 mm Grinding width approx. 20 – 120 mm Vertical quill adjustment, each approx. 150 mm Infeed increment of grinding wheels via CNC: 0.0001 mm Workpiece transport device, continuously adjustable feed: 40 – 235 mm/sec Grinding wheel speed (each, 30 m/s): 191–955 rpm Grinding spindle drive, infinitely variable (each): 37 kW Total drive power approx. 85 kW / 380 V / 50 Hz Weight approx. 9,500 kg Accessories / Special Features • SIEMENS CNC control SINUMERIK 810 G with display for 4 axes (top and bottom infeed, dresser, and workpiece rotation), direct input of all grinding parameters, and • IONIC measurement control no. 17 A with 2 measuring probes for scanning the workpieces after the grinding cycle, triggers automatic infeed corrections for the grinding wheels; real-time measurement data on monitor for statistics, workpiece counting, etc. • Digital display of current (amperage) of the drive motors and grinding wheel speed • Gantry construction for increased stability and improved grinding accuracy • Rotary workpiece transport with continuously variable speed control as 4th axis • Position control system for monitoring the height position of the lower grinding wheel • 2 adjustable workpiece hold-downs each at the infeed and outfeed, with height monitoring, simple raw part stacking mechanism, finished parts removal via conveyor belt • Half-inclined, side-mounted grinding wheel dressing device with preprogrammable dressing cycles, integrated as CNC axis in the control system with safety shut-off • Large separate electrical cabinet, automatic central lubrication, high-performance pneumatic system • Large PROMATEC (F) coolant system with filtration unit and magnetic separator • Various grinding wheels, flanges, various table segments, transport discs, large dust extraction system, etc. This machine is particularly suitable for simultaneous, parallel surface grinding of workpieces in large series, such as punched parts, piston rings, hydraulic components, etc. Condition: good to very good – soon available for demonstration Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice This offers a very rare opportunity in terms of both condition and price. If you require another grinding machine, especially from the manufacturer DISKUS, please send us your inquiry.

Stanje: dober (rabljeno), Leto izdelave: 1970, For sale: Hilgeland forging machine, model CH5AL The machine is in perfect technical condition. Machine weight: approx. 20 tons. The forging machine comes with extensive tooling. Loading provided. Max diameter of normalized bolt: 16 mm. Max length: 200 mm. Isdpfxju Szucj Aa Usar

Leto izdelave: 1983, stanje: pripravljen za uporabo (rabljen), Was used for reworking profile rolls for a hot rolling mill, was regularly maintained, includes accessories, without spare parts, on-site inspection is possible, no videos available. Iaedpfx Aaeriwfie Usr

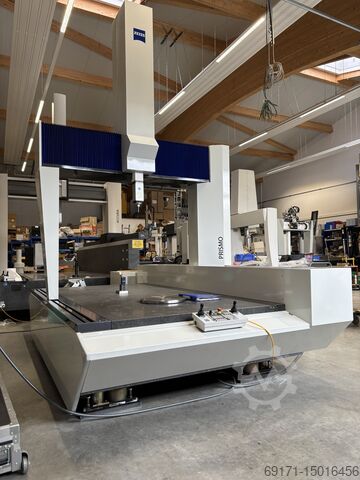

Stanje: rabljeno, Leto izdelave: 1992, Measuring range X-axis: 2400 mm Measuring range Y-axis: 1200 mm Measuring range Z-axis: 1500 mm Iajdsg Er Nlopfx Aa Ujr Machine weight approx. 9.00 t

Stanje: dober (rabljeno), Leto izdelave: 2014, višina središča: 180 mm, širina na sredini: 600 mm, premer brušenja: 260 mm,

Stanje: rabljeno, Brand: GEMINIS Model: CNC 4 PLUS 620 x 2000 Control: FAGOR Distance between centers: 2000 mm Center height: 315 mm Maximum turning diameter: 620 mm Swing over cross slide: 370 mm Bar capacity: 80 mm Precision swiveling turret: 1st speed range: 0 to 355 rpm 2nd speed range: 0 to 1800 rpm Tailstock: Morse taper 6 Main motor: 15 kW Maximum workpiece weight between centers: 2,560 kg Machine dimensions (L x W x H): 4300 x 1900 x 1800 mm Iaedpfx Aaowznp Ne Usr

Stanje: zelo dobro (rabljeno), Leto izdelave: 2008, Funkcionalnost: popolnoma funkcionalen, CNC Fanuc 18i - MB TRAVELS: X-axis: 850 mm Y-axis: 700 mm Z-axis: 750 mm Distance from spindle nose to table surface: 50 - 750 mm Distance from spindle nose to table center: 150 - 900 mm TABLE: Pallet size: 500 x 500 mm Table load capacity: 500 kg Pallet surface: 24 – M16 x Pitch 2.0 Table indexing angle: 1° SPINDLE: Spindle speed: 14,000 rpm Spindle taper: ISO 40 Max spindle torque (25% duty cycle): 220.5 Nm FEEDS: Rapid traverse (X, Y, Z): 60 m/min Cutting feed rate: 30,000 mm/min TOOL CHANGER: Tool holder type: MAS403 BT40 Magazine capacity: 120 tools Max tool length: 400 mm Max tool weight: 10 kg Tool change time (tool-to-tool): 1 sec Tool change time (chip-to-chip): 3.5 sec AUTOMATIC PALLET CHANGER: Number of pallets: 7 Type: Rotary shuttle Pallet change time: 7.5 sec Pallet rotation at loading station: 90° MOTORS: Spindle motor (30 min): 18.5 / 22 kW Axis motors (X, Y, Z, B): 7.0/7.0/7.0/2.7 kW Iajdjvw Uyujpfx Aa Ujr MACHINE DIMENSIONS: Height: 3,000 mm Floor space: 5,600 x 2,700 mm Machine weight: 15,000 kg Equipped with: • High-pressure through-spindle coolant system 35 bar • Chip conveyor • Instruction manuals and CE declaration
