CORMAK BS712R 230V

PROMOTIONAL PRICE!
Ksdpfxsxqd T Ts Ah Dsnc

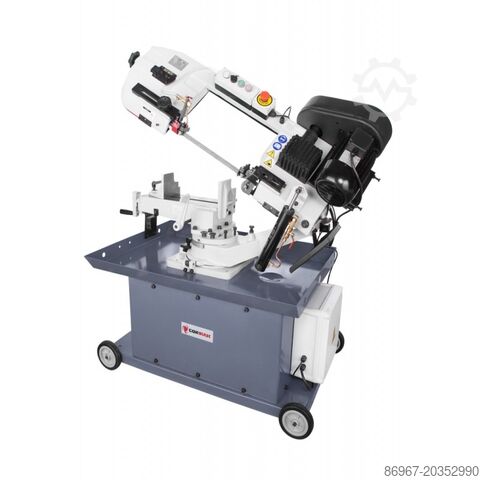

Professional, heavy-duty and efficient metal band saw with a 45° swivel arm. Perfect solution for locksmith, production, and craft workshops. A time-tested design and robust construction make it unrivaled in its class.

Product features:

The universal CORMAK BS 712 R metal band saw allows cutting both in the vertical plane as well as perpendicular to the axis of the material or at any angle between 45° and 90°. Cutting feed is gravity-assisted, based on oil flow in a double-chamber hydraulic cylinder. The descent speed of the arm is regulated by a valve controlling oil flow between chambers. The desired blade linear speed is obtained by changing the pulley ratio between the worm gear and the drive motor. The descent speed of the arm is equally regulated via the oil flow control valve.

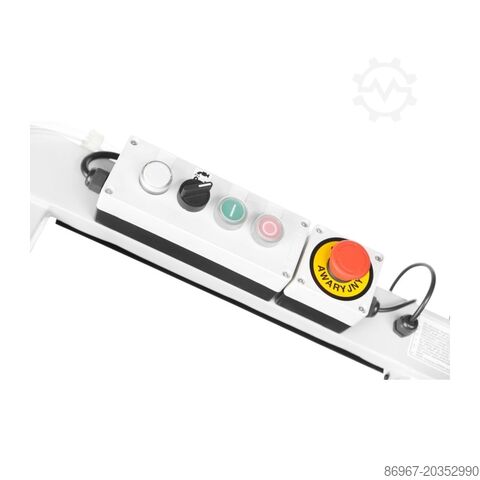

The arm is made of profiled nodular cast iron, ensuring rigidity during operation and absorbing all types of vibrations. The control panel is mounted on the saw arm. The blade drive system consists of two cast iron wheels: a tensioning wheel (adjustable by lever) and a drive wheel. The drive wheel receives torque directly from the worm gearbox, which is powered by the electric motor. The right blade tilt is achieved via a set of bearing rollers.

The machine base is a rigid cuboid made of steel sheets, housing the coolant reservoir and coolant pump. The top part of the base is equipped with a tray for coolant drainage and a swarf bin for cut material debris. Mounted on the tray is a cast iron worktable featuring a vise for material clamping and to which the saw arm is attached. The vise features a quick-release clamping mechanism. At the bottom of the pedestal, there are mountings for wheel axles.

Safety during cutting is ensured by an electrical system complying with all CE standards. The machine features a limit switch stopping the saw at the end of the cut, an emergency stop (E-stop/Mushroom button), and a number of microswitches disabling the machine if, for example, the belt drive cover or band saw blade cover is opened. Additionally, unlike the competition, our model features a wire brush for cleaning swarf from the cutting blade, which prevents blade clogging and ensures more efficient cutting.

NEW
The arm design has been modified so that the horizontal saw can be quickly transformed into a vertical band saw with a worktable.

Technical data:
Blade size [mm]: 2360 x 20 x 0.9
Blade tension: mechanical (manual)
Blade speeds [m/min]: 34, 41, 59, 98
Feed speed [m/min]: 0–50 (stepless feed)
Arm descent adjustment: stepless – hydraulic cylinder
Vise base height [mm]: 600
Power supply: 230V
Main motor power [kW]: S1 100%: 0.75; S6 40%: 1.1 kW
Weight [kg]: 190
Machine dimensions: 1250x700x1000 mm
Warranty [months]: 12/24
Manual (DTR): included
CE Declaration: Yes

Mitre cutting capacity:
0° – Round: 180 mm | Flat: 210 x 180 mm | Square: 180 x 180 mm
45° – Round: 130 mm | Flat: 140 x 90 mm | Square: 130 x 130 mm

ATTENTION! RETURNED, SERVICED MACHINE, NO ORIGINAL PACKAGING.
