Orodja za stiskalnico Dies

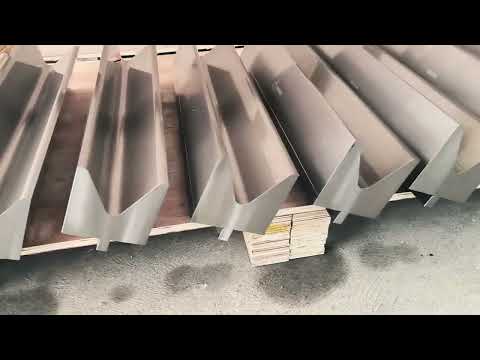

Cnstamp V65/V80mm for Trumpf/Bystronic

Stanje: novo, Leto izdelave: 2024, Bending force: 320 t Year of manufacture: New (delivery time 6-8 weeks) Control: DT 15 Bending length: 3050 mm Distance between uprights: 2600 mm Y rapid traverse speed: 160 mm / s Y working speed: 10 mm / s Y return speed: 140 mm / s Motorized crowning Table length: 630 mm Table width: 154 mm Table height: 900 mm Stroke: 365 mm Throat depth: 410 mm 2 support arms 2 rear stop fingers Travel speed X-axis: 250 mm / s R-axis working speed (max.): 140 mm / s R-axis travel range: 250 mm Standard equipment: Y1, Y2, X (3-axis) Y1, Y2, X = 650 mm (dual guideway, aluminium) D-BEND software for 3D bending simulation and alignment Manual crowning R-axis, manual Backgauge with motorized adjustment, linear guide and ball screw Backgauge finger with height adjustment (R-axis, manual) CE die holder system (upper dies) Front sheet support arms, sliding (with T-slot and stops) Hydraulic blocks and valves in special design according to internationally recognized standards Electrical equipment according to internationally recognized standards Dodpfxofifg Hj Adieck Options: CE standard with manual Fiessler AKAS II M -FPSC-B-C (SAFETY PLC) CNC motorized crowning Y1, Y2, X, R (4 axes) CNC motorized crowning Motor power: 37 kW Oil tank capacity: 250 l Length: 4300 mm Width: 1820 mm Height: 3230 mm Weight: approx. 17,250 kg

Stanje: novo, Leto izdelave: 2025, Pipe diameter: 48.3 mm Wall thickness: 3.25 mm Bending radius min. / max.: 180 mm Bending speed: 20°/sec Total power requirement: 2.4 kW Machine weight: approx. 700 kg Space requirement: approx. 3880 x 800 x 1250 mm TUBOMAT complete system - length: 3000 mm Standard equipment for bending: • Electronic Siemens SIMATIC control • Function selection and operation via 4.3 inch touch panel • Familiar 4-position bending angle preselection or program mode • 80 memory slots, up to 10 sets • Actual/target value display for bending angle • Compact, forward-mounted bending head • Optimized tooling concept • Hydraulic bending drive, operated via proven hand lever • Hydraulic pipe clamping • Hydraulic pressure die positioning • Hydraulic mandrel retraction • Mobile machine design Saw unit for optimal right-angled cuts: • Visualization of saw position by line laser • Foldable saw guard • Adjustable saw feed Deburring unit for internal and external deburring Universal base mount as drive unit for assembly attachments • With swivel device for optimal accessibility Including optional equipment: - Includes 6 each of length and angle stops - length 3000 mm - 2-axis positioning display for length and rotation (displayed on touch panel) - length 3000 mm - Early mandrel retraction for optimum bend quality • For the use of ball mandrels • Mandrel is automatically retracted during the bending process • Adjustment programmable stepless up to 10° - Automatic mandrel lubrication as minimum quantity oil lubrication - TUBOLUB Z-M (5 litres / container) for minimum quantity lubrication Dcodpfxoxcuicj Adiek - Interface for network connection and data import from PIPEFAB - Assembly attachment for cutting ring assembly with measuring system (automatic pressure adjustment) - Software - PIPEFAB 4.0 BE basic tube bending software package • Oracle Express database for single-user application • Creation of isometric drawings (single tube) • ConCSVImp - CSV import interface • Calculation of bending data considering springback, elongation and rebound • Checking of clamping lengths, start and end lengths • Output of bending data (printout) • BendSim - bending simulation and graphical display via parametric tooling layout • BendCon - generation and transfer of NC bending data for TUBOMAT - IsoTools – 3D display, labeling tools - ConSTEP - STEP file import interface - Tool holders - Bending tools consisting of bending die, clamping piece and fixed glide shoe - Bending mandrels 3000 mm for steel tubes, version with lubrication channel for minimum quantity oil lubrication - Pre-assembly studs - Counterhold plates for cutting ring pre-assembly with automatic pressure adjustment for steel and stainless steel tubes - Commissioning - Packaging costs

Stanje: novo, Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2024, laserska moč: 30 W, najv. debelina jeklene pločevine: 80 mm, maks. debelina aluminijaste pločevine: 50 mm, The Durma HD-F 3015 Fiber Laser Cutting System with 30 kW, presented by Durma Maschinen GmbH, is a top-class fiber laser cutting machine designed for maximum precision and efficiency in metal processing. As a direct manufacturer with locations in Münster and Staufenberg, Durma Maschinen GmbH stands for quality, reliability, and outstanding customer service. Features: 30 kW / 80 mm mild steel, 50 mm stainless steel Automatic nozzle centering Automatic nozzle changer with 26 stations Servo shuttle table Focal length F300 mm Dcedpfxjq Nl T Te Adisk Conveyor system Technical Data: Power output: 30 kW Maximum sheet size: 3,048 mm x 1,524 mm Maximum sheet weight: 200 kg/m² Z-axis travel: 160 mm Maximum simultaneous speed: 170 m/min Maximum simultaneous acceleration: 2.8 G Positioning accuracy: +/- 0.02 mm Repeatability: +/- 0.02 mm Product Description of the Durma HD-F 3015 30 kW: Powerful and Efficient: Equipped with a 30 kW fiber laser, the Durma HD-F 3015 delivers outstanding cutting performance and precision for a variety of materials, including steel, aluminum, and copper. Generous Working Area: With a working area of 3,000 x 1,500 mm, this machine is ideal for processing both large and small workpieces. Advanced CNC Control: The user-friendly and precise control system allows for easy operation and optimizes cutting paths to minimize material waste. Automatic Nozzle Changer System: This feature increases productivity and reduces downtime during nozzle changes. Energy Efficient: The laser boasts high energy efficiency, resulting in lower operating costs. Robust Construction: The machine is designed for durability and reliability, even under demanding working conditions. Safety: Comprehensive safety features ensure secure operation. Versatility: Compatible with various laser cutting software solutions, making it suitable for multiple industries. Durma Maschinen GmbH – Your Reliable Partner: As the manufacturer of the Durma HD-F 3015, we at Durma Maschinen GmbH are proud of our rapid and efficient service as well as our extensive spare parts supply. With locations in Münster and Staufenberg, we guarantee 100% availability and fast response times to ensure our customers always receive the support they need. Our commitment to quality and customer satisfaction makes us the ideal partner for all your fiber laser cutting requirements. Interested in the Durma HD-F 3015 30 kW? Contact us for a non-binding consultation or a customized offer. At Durma Maschinen GmbH, we are happy to assist you with any questions and to find the best solution for your needs. We look forward to your inquiry!

Stanje: novo, Leto izdelave: 2026, skupna dolžina: 1.450 mm, skupna širina: 800 mm, skupna višina: 1.800 mm, skupna masa: 500 kg, moč: 4,75 kW (6,46 KM), FC 120 ZK Working capacity: Ø 120x120 mm, Number of belt stations (Z): 1, Number of brush stations (K): 1, Abrasive belt dimensions: 120x1850 mm, Brush belt dimensions: 120xØ200 mm, Abrasive belt speed: 20 m/s, Brush belt speed: 15 m/s, Feed speed: 12 m/s, Abrasive belt motor per head (x1): 3 kW, Brush motor per head (x1): 1.5 kW, Feed motor: 0.25 kW, Total power: 4.75 kW, Current consumption: 12A, Dcedpfx Adot D D Nzsiek Dust extraction port per head Ø (2x): 80 mm, Dimensions: 1450x800x1800 mm, Weight: 500 kg

Stanje: novo, Sheet thickness 1.2 mm Roller diameter 62 mm Throat depth 100 mm Total power requirement 0.75 kW Machine weight approx. 130 kg Space requirement approx. 1.1 x 0.5 x 1.3 m Machine is equipped with: - Emergency stop switch Dodpfx Aofv H Ededisck - Foot pedal - 7 sets of rollers

Stanje: zelo dobro (rabljeno), Leto izdelave: 2011, *Video je samo primer, kako se lahko pripravi to celico Celica z brusilnim robotom Kuka KR 180 Brusilna celica Berger 2012 (zunanje brušenje A1) - Skupna masa cca 6300 kg - Dimenzije celice: cca 4650 x 2400 x 3100 mm 6-osni robot Kuka KR 180 R2500 Extra - Leto izdelave 2011 - Krmiljenje KRC 4 - Dodatna os (7. os) Trakasta brusilna postaja BSS10 - max. dimenzije traku 3500 x 30 mm - max. premer kontaktnega kolesa 200 mm - Moč motorja 4 kW 2 x polirni postaji, - Premer polirnega koluta 350 - 600 mm - Moč 5,5 kW Omarica za menjavo prijemal Dedpfxsg Saqvj Adieck Trakasti transporter Interoll Automation GmbH - Skupna dolžina cca 2000 mm - Širina traku cca 440 mm Imamo 4 takšne celice.

Stanje: rabljeno, Length: 1800 mm Width: 1200 mm Machine weight approx.: 1.6 t Space requirement approx.: 1.8 x 1.2 x 0.4 m - Measuring plate with 5 special feet Dcedpfx Ascxxu Dodijk - Good condition

Stanje: novo, Press brake tools/punches for Trumpf press brake H 256 mm, L 500 mm, L 550 mm, in segments Djdpfxsiimz Ro Adiock

Stanje: novo, Leto izdelave: 2025, Enostavno vzdrževalna naprava za odstranjevanje prahu, posebej razvita za agresiven peskalni prah z predsobo s prizmatičnim ločevalnikom, v osnovi sestavljena iz: a) 1 kos kartušnega suhega filtra, tip PF 2.16.B250 za 30.000 m³/h (na voljo tudi druge velikosti) Sestavljen iz stabilnega, vakuumsko neprepustnega 3 mm jeklenega ohišja, razdeljenega na surovi plinski prostor s filtrskimi kartušami, filtrsko predsobo s prizmatičnim ločevalnikom in čistim plinskim prostorom s čiščenjem filtra z uporabo stisnjenega zraka, vsak z ločenimi servisnimi vrati Easy Open. Lijak za zbiranje prahu z režnim ventilom ali zvezdastim dozatorjem za odstranjevanje prahu z Big Bag vrečami. Krmiljenje magnetnega ventila z indikatorjem diferenčnega tlaka za optimalno nastavitev čiščenja filtrov. Servisna vrata kot nihajna vrata – enostavno vzdrževanje. Dedpfxedrtalj Adiock

Stanje: zelo dobro (rabljeno), For sale: Hypertherm Powermax 800 plasma cutter in very good condition. /////Price listed per unit///// Hypertherm Powermax 800 Plasma Cutter Plasma Cutter Description: Dsdpfeulc Ixex Adieck The Powermax800 plasma cutting system uses an inverter power source to deliver a smooth DC output voltage, ensuring excellent cutting and gouging quality on mild steel, stainless steel, aluminum, and other metals. The Powermax800 power supply provides a consistent output current, adjustable from 20 to 50 amps, allowing for optimal performance across all metal thicknesses up to 1/2 inch (12 mm). At 50 amps, the Powermax800 can cut metals up to 3/4 inch (20 mm) thick and sever metals up to 1 inch (25 mm) thick.
