Upogibni stroj

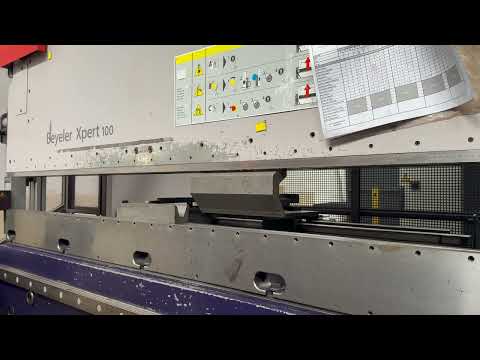

Bystronic Xpert 100/2050 CNC

Stanje: zelo dobro (rabljeno), Leto izdelave: 2009, Tlak: 100 t Dolžina upogiba: 2050 mm Hod: 215 mm Višina odprtine: 500 mm Grlo: 400 mm Razdalja med stebri: 1700 mm Zadnji omejevalnik: X-R-Z Moč motorja: 7,5 kW Ljdezclczjpfx Aamerp Teža: 7400 kg Leto izdelave: 2009

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 1996, številka stroja/vozila: 02/510/004, Funkcionalnost: popolnoma funkcionalen, moč: 18,5 kW (25,15 KM), vhodna napetost: 400 V, vhodni tok: 63 A, vhodna frekvenca: 60 Hz, hod: 265 mm, višina mize: 800 mm, skupna dolžina: 2.670 mm, skupna širina: 4.100 mm, skupna višina: 2.800 mm, skupna masa: 22.000 kg, potovalna razdalja osi X: 500 mm, proizvajalec krmilnikov: Cybelec, model krmilnika: Visitouch 19" 2D, delovna širina: 4.100 mm, upogibna sila (maks.): 225 t, hitrost zadnjega prislona os R: 100 mm/s, vrsta upravljanja: CNC krmiljenje, stopnja avtomatizacije: samodejen, nastavitev zadnjega prislona: CNC krmiljen, število osi: 4, vrsta aktuacije: hidravlični, Oprema: CE označba, centralizirani mazalni sistem, dokumentacija / priročnik, nožno daljinsko upravljanje, nujno zaustavitev, Preša za upogibanje popolnoma nadgrajena z novim 2D numeričnim krmilnikom podjetja Cybelec Švica. Lrodpow I A Ncsfx Aamop

Stanje: zelo dobro (rabljeno), Leto izdelave: 2001, Sheet width 3100 mm Sheet thickness 6.0 mm (steel) Pre-bending 4.0 mm (steel) Upper roller diameter 200 mm Side roller diameter 165 mm Lower roller diameter 190 mm Bending speed approx. 5.0 m/min Control system DIGI Oil capacity 80.0 liters Voltage 380 V Total power requirement 6.0 kW Weight 6000 kg Dimensions (L-W-H) 5250 x 1500 x 1400 mm Very good condition (!!) Current new price approx. €85,000 Special price on request Features: - Robust electro-hydraulic 4-roll plate bending machine * 4-roll design offers a wide range of bending and rolling options Lredpfjx Sr Dfsx Aamjp - MG swiveling control panel * Operation – control of all rollers / machine axes * Digital position display * Manual operation via joysticks - Two central rollers driven directly by hydromotors - Conical rolling possible by tilting the rollers - Side roller parallelism by torsion shafts - Pre-bending on both sides - Diameters up to 1.1 times the upper roller diameter possible - Forged and hardened rollers with a hardness of 53-55 HRC - Low-maintenance, stable machine design - Continuous lubrication of all bearings - Sturdy steel welded frame - Electro-hydraulic drop end for easy removal of tubular workpieces - Pressure gauge for rollers - Safety device (safety cable with switch unit) - Operating manual (PDF)

Stanje: dober (rabljeno), Leto izdelave: 2022, obratovalne ure: 6.099 h, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 6500014216, Obseg rezanja okroglega jekla pri 90°: 240 mm, Razpon rezanja okroglega jekla pri 45°: 240 mm, razpon rezanja kotnega jekla pri 90° (os X): 180 mm, razpon rezanja kotnega jekla pri 90° (os Y): 180 mm, razpon reza kotnega jekla pri 45° (os X): 180 mm, razpon rezanja kotnega jekla pri 45° (os Y): 180 mm, vrsta vhodnega toka: trifazni, skupna dolžina: 14.000 mm, Območje rezanja kvadratnega jekla pri 90°: 180 mm, Obseg rezanja kvadratnega jekla pri 45°: 180 mm, dolžina pomika po osi Y: 7.500 mm, višina izdelka (maks.): 12 mm, Tube Laser Bodor T230-650CE 4kW Laser power: 4kW For tubes and profiles 7500 mm length × 20–240 mm round diameter 7500 mm length × 20–180 mm square Automatic loading: 3000–6200 mm 2½D laser head Being sold due to purchase of a 3D model Lredpfx Aasvvlbtemep You are welcome to inspect the machine in operation.

Stanje: novo, Leto izdelave: 2025, Laser-snijmachine CNC 3-assig Deze machine is ook geschikt voor profielen, buizen en verschillende vormen. Wij kunnen de machine tevens leveren met een automatisch magazijn voor onbemande productie. Effectieve snijdiameter ronde buizen: Ø10 mm – Ø225 mm Effectief snijformaat vierkante buizen: □10 mm – □225 mm X/Y/Z-as verplaatsing: 270 / 6.900 / 230 mm Lodpfektffzex Aamerp X/Y/Z-as motorvermogen: 0,75 / 2,9 / 0,75 kW Positioneernauwkeurigheid: ±0,1 mm Herhalingsnauwkeurigheid: ±0,1 mm Maximale verplaatsingssnelheid Y-as: 110 m/min Universele maximale rotatiesnelheid: 120 t/min Maximale versnelling: 1,5G Maximale aanvoerlengte buizen: 6.200 mm Maximaal belastbaar gewicht: 300 kg Totaal elektrisch vermogen van de machine: 22 kVA Machineafmetingen: 10.400 x 2.180 x 2.400 mm Machinegewicht: 3,5 ton

Stanje: novo, Leto izdelave: 2025, Laser power: 6000 watts Round tube: 20 - 350 mm Square tube: 20 x 20 - 350 x 350 mm Rectangular tube: 20 x 20 - 350 x 350 mm Max. positioning accuracy X, Y axis: 0.05/1000 mm Max. positioning accuracy U axis: 0.05/1000 mm Max. mild steel: 14 mm Max. stainless steel: 10 mm Max. aluminium: 10 mm Max. tube weight: 1200 kg Length: 17,296 mm Lredpfx Aaexgc Aremop Width: 4,271 mm Height: 2,933 mm Standard equipment Working range for tube diameter Round tube: 20 mm - 350 mm Square tube: 20 - 350 mm Rectangular tube: 20 x 20 mm - 350 x 350 mm Minimum clamping tube thickness: ≥1 mm Y-axis travel: 9100 mm Z-axis travel: 4000 mm X-axis travel: 400 mm Maximum loading length: 9200 mm Maximum unloading length: 6000 mm X,Y axis positioning accuracy: +/-0.05 mm/1000 mm X,Y axis repeat positioning accuracy: +/-0.05 mm/1000 mm Maximum rotational U-axis positioning speed: 100 RPM Maximum acceleration X/Y axis: 1.0 G X-axis rapid traverse speed: ≤50 m/min Maximum loading capacity per tube: ≤133 kg/m Machine operating temperature: 20℃–40℃

Leto izdelave: 2007, stanje: skoraj kot novo (rabljeno), Naprodaj rabljena popolnoma servisirana CNC upogibalka Bystronic AFM EP 100, dolžina 3 metre, pritisk 100 ton: Model: AFM Edwards Pearson 100 Proizvajalec: Bystronic Leto izdelave: 2007 Krmiljenje: Cybelec 880s Lrodpfx Aji Egmlsamop Delovna dolžina: 3100 mm (3 m) Maksimalna pritiskalna sila: 1000 kN (100 ton) 2-osni zadnji pomik – osi R in X Skupaj 4 osi S kompenzacijo izbočenja (crowning) Stroj se prodaja s kompletom zgornjih in spodnjih orodij

Stanje: novo, Funkcionalnost: popolnoma funkcionalen, The EVO represents the latest innovation in sheet metal processing. It is equipped with numerous innovative and patented features that increase your production capacity and productivity while maintaining the lowest total operating costs. Key highlights include the premium components used in this machine, as well as the latest version of the BENDtronic® control system, which comes as standard on all EVO machines. Available from stock: HAEUSLER EVO 31031 4-Roll Plate Bending Machine / Plate Roller Manufacturer: Haeusler Lrodpoxwmb Hjfx Aamep Model: EVO 31031 4-Roll Plate Bending Machine / Plate Roller Origin: Germany / Switzerland Year of manufacture: 2024 Condition: NEW, demonstration machine Availability: Immediate Specifications: Working width: 3100 mm Plate rolling capacity: 14 mm Pre-bending capacity: 12 mm Looking for a different machine? As an authorized Haeusler dealer, we can configure and offer the machine of your choice to meet your specific requirements. Do not hesitate to contact us.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2000, hod: 850 mm, obratovalna hitrost: 8 mm/s, skupna dolžina: 15.400 mm, skupna širina: 6.500 mm, skupna višina: 11.400 mm, skupna masa: 407.000 kg, proizvajalec krmilnikov: Cybelec DNC 1200, delovna širina: 15.400 mm, upogibna sila (maks.): 2.000 t, razdalja med stojali: 12.000 mm, število osi: 8, Press brake Beyeler Mammut - PR10 MACH-ID 9470 Manufacturer: Beyeler Mammut Model: PR10 Control: Cybelec DNC 1200 Year of manufacture: 2000 Extra heavy-duty press brake * 1 set of top tools 88° * 1 set of bottom tools * Cybelec DNC 106EC control * Y1, Y2, X, R1, R2, R3, R4, OWK * Dynamic crowning of the lower beam Suitable for the following applications: Shipbuilding & Marine: hull sections, deck plates, bulkheads, frames Defense & Military: armored vehicle structures, reinforced constructions (Hardox / Strenx) Mining & Heavy Engineering: dump truck bodies, crusher housings, excavator parts, wear liners Construction & Structural Steelwork: bridge girders, box columns, steel frames Onshore and Offshore: pylons, decks, crossbeams, crane components, offshore wind energy components Boiler & Vessel Construction: pressure vessels, power plant components, tower or mast sections Bending examples: Lodpfx Aoyvh Aroamsrp * 35 mm material thickness at 10 m length * 26 mm material thickness at 12 m length * 20 mm material thickness at 15 m length Maximum bending length: 15,400 mm Distance between uprights: 12,000 mm Maximum pressing force: 2,000 T Table gap: 1,500 mm Maximum stroke: 850 mm Throat depth: 1,250 mm Descent speed: 80 mm/min Working speed: 8 mm/min Return speed: 80 mm/min Number of controlled axes: 10 Crowning: Yes Hydraulic tool clamping: Yes Power: 132 kW Length: 15,400 mm Width: 6,500 mm Height: 11,400 mm Weight: 407,000 kg

Leto izdelave: 2007, stanje: pripravljen za uporabo (rabljen), Na voljo je upogibni stroj Beyeler, zdaj Bystronic. Delovna dolžina: 4100 mm, pritisna sila: 2250 kN, maks. hod: 400 mm, izrez: 250 mm, vgradna višina: 917 mm, hitri pomik dol/gor: 150 mm/s, delovni hod: 10 mm/s, hidravlični tlak: 315 bar, prostornina olja: 815 l, maks. temperatura olja: 65°C, moč: 30 kW, maks. masa zgornjega orodja: 400 kg, maks. masa kosa: 13 kg. Dimenzije stroja D/Š/V: cca 5500 mm/2300 mm/3350 mm, teža: cca 22000 kg, delovni čas: cca 35000 h. Vključno z različnimi zgornjimi orodji, rezili in spodnjimi orodji. Dokumentacija na voljo. Ogled na lokaciji možen. Lodpfxex U Dwps Aamorp
