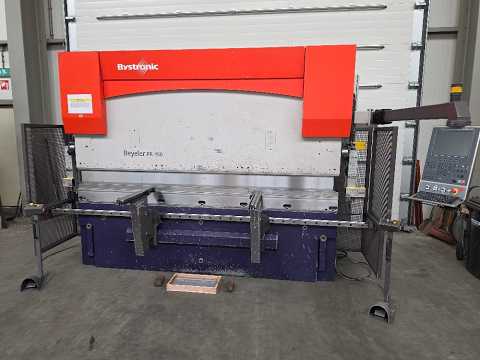

Upogibni stroj

Bystronic PR 150x3100

Stanje: dober (rabljeno), HYDRAULIC PRESS BRAKE BYSTRONIC, 3100X150 TON, MAX STROKE 315 mm, FAST DOWN STROKE 190 mm/s, WORKING CYCLE 10 mm/s, FAST RETURN STROKE 150 mm/s, DIMENSIONS: 415x200x290 cm (h), WEIGHT: 11,000 KG Y1 Y2: hydraulic cylinder axes. X axis: backgauge forward and backward movement. R axis: backgauge vertical movement (up and down). Bodpfx Aevxipgjqtjll Z1 and Z2 axes: backgauge stops movement to the right and left. X1 or relative X: single stop forward and backward movement. 7 axes total. The control unit also manages hydraulic crowning, which can be considered the eighth axis.

Stanje: rabljeno, Leto izdelave: 2005, - Fagor 8055 CNC control - Additional tank for spindle internal cooling (15 bar) 400 liters - Year of manufacture: 2005 Technical data: Bodpfx Aetvf Hteqtoll - Travel distance X/Y/Z: 610 / 455 / 520 mm - Rapid traverse: 24 m/min - Spindle speed: 8000 rpm - Tool holder: BT40 - Table size: 762 x 363 mm - Maximum table load: 350 kg - Motor power: 18 kW - Operating voltage: 400 V - Weight: 3140 kg

Stanje: zelo dobro (rabljeno), Leto izdelave: 2008, stiskalna sila: 150 t, skupna masa: 10.800 kg, proizvajalec krmilnikov: Cybelec, delovna dolžina: 3.100 mm, delovno območje: 3.100 mm, vrsta upravljanja: CNC krmiljenje, število osi: 7, tip kronanja: CNC krmiljen, vrsta aktuacije: hidravlični, Oprema: CE označba, spodnje orodje, varnostna svetlobna zapora, zgornje orodje, Zum Verkauf steht eine gebrauchte, hochwertige und sehr gut erhaltene Bystronic PR 150 3m x 150t CNC-Abkantpresse – Made in Germany. Ausgestattet mit 2 Jahre altem Schwanenhals-Oberwerkzeug. Bystronic Beyeler PR 150×3100 Hersteller: Bystronic Modell: PR 150 Baujahr: 2008 Achsen gesamt: 7 – Hinteranschlag mit 5 Achsen (X, R, Z1, Z2, X1) Freistehend, es wird keine Grube benötigt Presskraft / Tischlänge / Tonnage: 3 Meter x 3100 mm x 150 Tonnen CNC-Steuerung: Cybelec Modeva 10S Regelmäßig gewartet durch Bystronic UK – Wartungsnachweise siehe Fotos Allgemeine Daten: Bodpfx Aqoh Eyxkjtsll Modell: PR 150 x 3100 Baujahr: 2008 Technische Spezifikationen: Arbeitslänge: 3100 mm Presskraft: 1500 kN Hub: 315 mm Eilgang: 190 mm/s Arbeitsgeschwindigkeit: 10 mm/s Rücklaufgeschwindigkeit: 150 mm/s Eigengewicht: 10.800 kg Elektrische Werte: Motorleistung: 11 kW Gesamtanschlussleistung: 15 kW Betriebsspannung: 3Ph 400V AC Frequenz: 50 Hz Steuerspannung: 24V DC Absicherung: 35A Pneumatisch: Max. Betriebsdruck: 8 bar Hydraulisch: Max. Akkumulatordruck: 300 bar Inklusive gebrauchtem Werkzeugsatz – Angebot für neue Werkzeuge passend zur Maschine zur Stahlbearbeitung auf Anfrage möglich. Lieferung und betriebsfertige Montage inklusive Anwenderschulung bei Ihnen im Werk möglich.

Stanje: zelo dobro (rabljeno), stiskalna sila: 150 t, širina mize: 3.100 mm, Zum Verkauf steht: 1 gebrauchtes, hochwertiges und sehr gut erhaltenes Bystronic Xpert CNC-Abkantpresse 3 Meter x 150 Tonnen mit motorischer Blechauflage. Bystronic Beyeler Xpert 150×3100 Hersteller: Bystronic Modell: Xpert150 Baujahr: 2010 Achsen insgesamt: 9 – Hinteranschlag 6-achsig: X1, X2, R1, R2, Z1, Z2 – sowie motorische vordere Blechaufrichtehilfe Hydraulische Werkzeugklemmung Freistehend, keine Unterflur-Grube erforderlich Kapazität / Biegelänge / Presskraft: 3 Meter x 3100 mm x 150 Tonnen Komplett gewartet durch Bystronic UK Allgemeine Informationen: Modell: XPERT150x3100 Baujahr: 2010 Technische Daten: Bsdpfjttl D Njx Aqtjll Arbeitslänge: 3100 mm Presskraft: 1.500 kN Hub: 315 mm Eilgang: 190 mm/s Arbeitsvorschub: 10 mm/s Rücklaufgeschwindigkeit: 150 mm/s

Stanje: zelo dobro (rabljeno), Leto izdelave: 2007, TECHNICAL DETAILS CNC Control: FANUC 18i-TB X1/X2 Axis (mm): 555 / 185 Z1/Z2 Axis (mm): 1,095 / 1,140 Y Axis (mm): 160 (+/- 80) B Axis (mm): 240 (+/- 120) Maximum Turning Diameter (mm): 550 C-axis Increment (°): 0.001 Maximum Turning Length (mm): 1,020 Cutting Feed Rate (mm/min) X, Z, Y: 500 Rapid Traverse Speed (mm/min): X1, Z1: 24,000 Y: 16,000 Bsdpfx Aqjxxdmiotsll B: 27,000 C: 200 (Z2: 24,000) (X2: 24,000) Swing Over Bed (mm): Ø750 Swing Over Carriage (mm): Ø600 Bar Capacity (mm): Ø65 (main) / Ø– (sub) Max. Rapid Traverse (m/min) X, Z, B-Y: – Spindle / Sub-Spindle: – Spindle Speed (rpm): 5,000 Spindle Power (kW): 22 / 15 Torque (Nm): – Main Spindle Bore: – Main Spindle Nose: A2-6 Milling Head: – Milling Spindle Speed (rpm): 10,000 Milling Spindle Power (kW): 15 / 11 Milling Spindle Torque (Nm): – Taper Type: CAPTO C6 Number of Tools in Magazine: 40 Turret: – Turret Positions: – Number of Powered Tool Stations: – Powered Tool Speed (rpm): – Powered Tool Power: – EQUIPMENT Hinged Belt Chip Conveyor: Included Bar Feeder Interface Adjustment Control: Included MACHINE DIMENSIONS Length (mm): 6,070 Width (mm): 2,682 Height (mm): 3,011 Weight (kg): 15,500

Stanje: rabljeno, Leto izdelave: 2006, Technical details: x-axis travel: 1000 / 600 mm y-axis travel: 570 mm z-axis travel: 570 mm Control unit: Fagor 8055 MC Tool magazine with 24 stations Tool holder: SK 40 Spindle speed: 10,000 rpm Spindle taper: SK40 Infinitely variable feed rates X/Y/Z: 10 m/min Rapid traverse X/Y/Z: 24 m/min Operating hours / power-on hours: not available Table size: 1200 x 500 mm Table load capacity: 800 kg Distance spindle nose to table: min./max. 100/670 mm Interface: 232 Total power requirement: 15 kW Machine weight approx.: 5.0 t Blsdju Idfrjpfx Aqtsl Machine dimensions (LxWxH) approx.: 3.3 x 2.3 x 2.8 m Equipment: - Cooling unit with spindle feed (no ICS) - Control panel with hand-held controller - Chip conveyor - Electrical cabinet with cooling, Rittal SK 3305500 in good condition.

Stanje: novo, Leto izdelave: 2024, Funkcionalnost: popolnoma funkcionalen, Discover the powerful Durma press brake at our demonstration center in Saerbeck. As a manufacturer, we offer you the highest precision and efficiency with a capacity of 3050 mm bending length and 175 tons. Benefit from our comprehensive all-in-one service: we take care of transport, installation, commissioning, and offer you a one-year warranty as well as fast and reliable service. Visit us and see for yourself the quality and versatility of this high-class machine. Standard equipment Capacity (length - tonnage): 3050 mm – 175 t Installation height: 530 mm Throat depth: 450 mm Stroke: 265 mm Servo drive Y1, Y2, X – 3 axes Control unit – DT 15 Manual F. AKAS FPSC safety system CE-certified Fiessler Akas Servo-motorized back gauge & linear guide & ball screw system Bjdpfx Aetr Dk Eeqtell Manual crowning European-style tool clamping Adjustable front support arms Options - DELEM 69S control unit (3D controller) - Motorized crowning - 6-axis (X=650 mm, Y1, Y2, X, R, Z1, Z2 – 6-axis controlled press brake) - European lower tool M.460R.85 - European upper tool P135.75.R08

Stanje: rabljeno, Leto izdelave: 2019, Pressure: 100 t Bending length: 3050 mm Frame gap: 3250 mm Control: Delem DA 66T Y-axis stroke: 300 mm Installation height: 590 mm Blodpfx Aqev R Hvnjtol Approach speed: 75 mm/sec Bending speed: 20 mm/sec Return speed: 75 mm/sec Total power requirement: 11 kW Machine weight: approx. 6.5 t Space requirement: approx. 4.3 x 2.0 x 2.9 m Demonstration unit Y1 / Y2 axes servo-electric Punch clamping: hydraulic (WILA Premium) Die clamping: hydraulic (WILA Premium) incl. motorized crowning Back gauge system: "DENER" X-, R-, Z1-, Z2-axis FIESSLER AKAS LC II M Type 4 (manual) with box bending function Rolleri quick-change segmented tooling: Punch: TPR200.28.R1, Die: TMR100.12.30 over 3,050 mm length

Stanje: novo, Sheet length: 2050 mm Sheet thickness: 3 mm Total power requirement: 2.2 kW Weight approx.: 1,500 kg Dimensions (LxWxH): 3,200 x 750 x 1,000 mm Technical Data Roller diameter: 130 mm Equipment • 3 rollers • Asymmetric roller arrangement – with pre-bending • 2 driven rollers via brake motor • Upper roller can be swung out to the front • Forward/reverse operation • Conical rolling by tilting the rear roller • Movable control panel Operating instructions in GERMAN Catalogue available at the following link: Blsdsd Ab H Aopfx Aqtol

Stanje: zelo dobro (rabljeno), 4-osna hidravlična CNC-upogljalna stiskalnica z nadzorom HACO-Robosoft ATS 590 Graphic (modernizirana leta 2008) in v skladu z zahtevami CE. Delovna sila: 135 t Dolžina upogiba: 4000 mm Dimenzije D x Š x V: približno 4500 x 1600 x 2320 mm Teža: 10500 kg Dodatna oprema / Posebne lastnosti: • 4-osni CNC-nadzor HACO ATS 590 Graphic Y1 + Y2, X, R za globino potopa, zadnji oporni člen in oporni prst na vrhu/sredi/spodaj • Položaj opornih prstov (skupaj/ločeno) se nastavlja ročno • Grafično programiranje in prikaz • V skladu z zahtevami CE zaradi 1 delovne hitrosti • Hidravlični sistem za sinhronizirano gibanje • Ročno nastavljanje izbočenosti mize s pomočjo ročne ročice pod matrico s števcem SIKO • Razdeljeni zgornji orodji, skoraj nova • Neprekinjena univerzalna matrica s 4 različnimi V-razporeditvami do največ V = 40 mm, skoraj nova • Dodatni razdeljeni zgornji in spodnji orodji • Sbirna letev • Sistem za pritrditev orodja „PROMECAM“ • 2 kos. opornih rok Bledox Npiyspfx Aqtel • Hitro, natančno in enostavno nastavljivo • Nožni stikalo in gumb za izklop v sili • Električno varovane zaščitne vrata (desna, leva in zadnja) • 1 delovna hitrost, povratno gibanje hitro • V skladu z zahtevami CE Pregled stroja do 04/2027 Dobavni rok: takoj, iz skladišča v Dortmundu, brezplačno natovorjeno na tovornjak Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Nemčija
