GeneratorBredenoord genset
Yanmar stage-V 60kVA aggregat agrégat
Generator
Bredenoord genset
Yanmar stage-V 60kVA aggregat agrégat
Leto izdelave
2024
Stanje
Novo
Lokacija
Apeldoorn

Prikaži slike
Prikaži karto
Podatki o stroju
- Oznaka stroja:
- Generator
- Proizvajalec:
- Bredenoord genset
- Številka stroja:
- F34.TEVP02
- Leto izdelave:
- 2024
- Stanje:
- novo
- Funkcionalnost:
- popolnoma funkcionalen
Cena in lokacija
- Lokacija:
- Zutphensestraat 319, 7325 WT Apeldoorn, Nederland

Pokliči
Tehnične podrobnosti
- Skupna masa:
- 1.823 kg
- Vrsta goriva:
- dizel
- Kapaciteta rezervoarja:
- 450 l
- Barva:
- rdeča
- Moč:
- 48 kW (65,26 KM)
- Izhodna napetost:
- 400 V
- Izhodna frekvenca:
- 50 Hz
- Vrsta izhodnega toka:
- trifazni
- Nazivna moč:
- 48 kW (65,26 KM)
- Nazivna (navidezna) moč:
- 60 kVA
- Neprekinjena moč:
- 48 kW (65,26 KM)
- Neprekinjena (navidezna) moč:
- 60 kVA
- Skupna dolžina:
- 2.660 mm
- Skupna širina:
- 1.110 mm
- Skupna višina:
- 1.770 mm
- Največja hitrost vrtenja:
- 1.500 obr/min
- Proizvajalec motorjev:
- Yanmar
- Vrsta hlajenja:
- voda
- Poraba goriva (kombinirana):
- 13,9 l/100 km
- Poraba goriva (mestna vožnja):
- 7,2 l/100 km
- Poraba goriva (izven mesta):
- 9,8 l/100 km
- Gorivo:
- dizel
- Kapaciteta rezervoarja za gorivo:
- 450 l
- Kapaciteta baterije:
- 100 Ah
- Napetost baterije:
- 12 V
- Vhodna napetost:
- 12 V
- Vhodna frekvenca:
- 50 Hz
- Vhodni tok:
- 32 A
- Obratovalna temperatura:
- 25 °C
- Temperatura okolja (min.):
- −25 °C
- Okoljska temperatura (maks.):
- 45 °C
- Višina krmilne omare:
- 1.770 mm
- Dolžina elektro omare:
- 2.660 mm
- Širina krmilne omare:
- 1.110 mm
- Raven hrupa:
- 62 dB
- Vrsta zaščite (IP koda):
- IP65
- Vrtljajska hitrost (min.):
- 1.500 obr/min
- Temperatura:
- 25 °C
- Vrsta vhodnega toka:
- trifazni
- Trajanje garancije:
- 12 meseci
- Oprema:
- dokumentacija / priročnik, mobilni rezervoar za dizel
Podrobnosti ponudbe
- ID oglasa:
- A19002506
- Referenčna številka:
- 3
- Posodobitev:
- nazadnje dne 23.04.2025
Opis

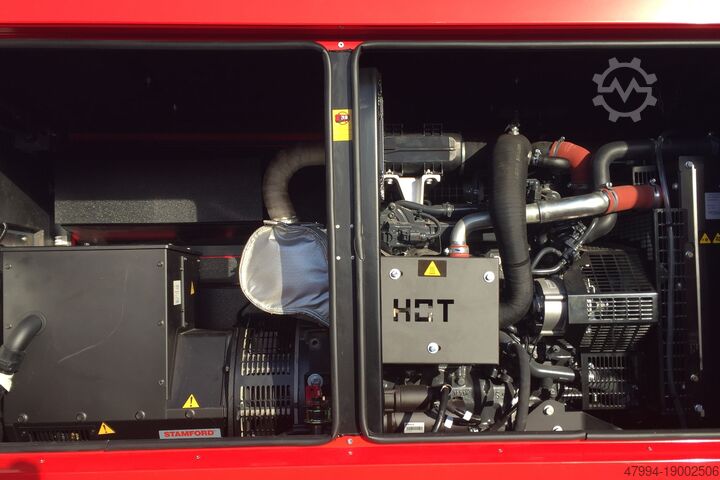

The Bredenoord 37 KVA generator is a reliable and versatile solution for both temporary and long-term power requirements across a range of environments. This genset is ideal for mobile use and meets Stage 3A emission standards. The efficient Yanmar engine, paired with a Stamford generator, delivers outstanding performance and low operating costs.
The generator is housed in a sound-insulated enclosure that ensures minimal noise emissions, making it ideal for use in noise-sensitive environments (super silent). The casing features thick, oil-resistant acoustic insulation and external sockets with circuit breakers for enhanced safety.
With a 100-liter fuel tank, the generator offers up to 48 hours of autonomy in continuous operation. The system runs on diesel, HVO, or GTL fuels, providing flexible fuel options.
Technical Specifications:
- Model: Bredenoord 37 KVA
- Nominal power: 37 KVA
- Maximum power: 37 KVA
- Engine: Yanmar 4TNV981IGEHR
- Generator: Stamford brushless alternator (AVR)
- Power output: 37 KVA
- Voltage: 230/400 V, 50 Hz
- Speed: 1500 rpm
- Noise level: 66 dB(A) at 7 meters
- Fuel tank: 100 liters
- Autonomy:
- 100% PRP: 40 hours
- 70% PRP: 56 hours
- Engine power: 27 KW
- Battery charger and engine pre-heater: Standard
- Control panel: Comap MRS16 (auto start/stop)
- Dimensions (L x W x H): 2.10 m x 0.98 m x 1.35 m
- Weight: 905 kg
- Emission class: Stage 3A
Fuel Consumption:
- 100% PRP: 7.6 L/h
- 70% PRP: 5.37 L/h
- 50% PRP: 4.05 L/h
Options:
- Engine pre-heater
- Battery charger
- 3-way fuel valve
- XXL fuel tank
Sound Attenuation:
The generator is designed with optimized air intakes and special insulating materials to minimize noise. The acoustic insulation is reinforced with wool of various thicknesses to reduce noise across a broad frequency spectrum, making it ideal for use in noise-sensitive areas.
Durability:
The enclosure is corrosion-resistant thanks to a coating tested for more than 2000 hours (C5I-H), ensuring long service life even in the most challenging conditions.
Cjdpfx Afowd Sfmsnopw
Safety:
The generator is equipped with reinforced locks and stainless-steel hinges. The doors are designed with a 20-degree beveled edge to prevent water accumulation and minimize oxidation.
Transport and Handling:
The generator is easy to move thanks to reinforced lifting eyes and steel beams, allowing for easy transport on construction sites. The design ensures stable and secure handling of the generator with no risk of damage.
Custom Configurations:
The Bredenoord 37 KVA generator is available in various configurations, from 20 KVA up to 600 KVA. Customer-specific modifications are possible, allowing the generator to be tailored to specific requirements and applications.
Certifications:
- CE certified
- European manufacture
Applications:
The generator is suitable for a range of industries, including construction, industrial, and other settings where reliable and efficient power supply is essential.
Oglas je bil avtomatsko preveden. Možne so napake pri prevodu.
The generator is housed in a sound-insulated enclosure that ensures minimal noise emissions, making it ideal for use in noise-sensitive environments (super silent). The casing features thick, oil-resistant acoustic insulation and external sockets with circuit breakers for enhanced safety.
With a 100-liter fuel tank, the generator offers up to 48 hours of autonomy in continuous operation. The system runs on diesel, HVO, or GTL fuels, providing flexible fuel options.
Technical Specifications:
- Model: Bredenoord 37 KVA
- Nominal power: 37 KVA
- Maximum power: 37 KVA
- Engine: Yanmar 4TNV981IGEHR
- Generator: Stamford brushless alternator (AVR)
- Power output: 37 KVA
- Voltage: 230/400 V, 50 Hz
- Speed: 1500 rpm
- Noise level: 66 dB(A) at 7 meters
- Fuel tank: 100 liters
- Autonomy:
- 100% PRP: 40 hours
- 70% PRP: 56 hours
- Engine power: 27 KW
- Battery charger and engine pre-heater: Standard
- Control panel: Comap MRS16 (auto start/stop)
- Dimensions (L x W x H): 2.10 m x 0.98 m x 1.35 m
- Weight: 905 kg
- Emission class: Stage 3A
Fuel Consumption:
- 100% PRP: 7.6 L/h
- 70% PRP: 5.37 L/h
- 50% PRP: 4.05 L/h
Options:
- Engine pre-heater
- Battery charger
- 3-way fuel valve
- XXL fuel tank
Sound Attenuation:
The generator is designed with optimized air intakes and special insulating materials to minimize noise. The acoustic insulation is reinforced with wool of various thicknesses to reduce noise across a broad frequency spectrum, making it ideal for use in noise-sensitive areas.
Durability:
The enclosure is corrosion-resistant thanks to a coating tested for more than 2000 hours (C5I-H), ensuring long service life even in the most challenging conditions.
Cjdpfx Afowd Sfmsnopw
Safety:
The generator is equipped with reinforced locks and stainless-steel hinges. The doors are designed with a 20-degree beveled edge to prevent water accumulation and minimize oxidation.
Transport and Handling:
The generator is easy to move thanks to reinforced lifting eyes and steel beams, allowing for easy transport on construction sites. The design ensures stable and secure handling of the generator with no risk of damage.
Custom Configurations:
The Bredenoord 37 KVA generator is available in various configurations, from 20 KVA up to 600 KVA. Customer-specific modifications are possible, allowing the generator to be tailored to specific requirements and applications.
Certifications:
- CE certified
- European manufacture
Applications:
The generator is suitable for a range of industries, including construction, industrial, and other settings where reliable and efficient power supply is essential.
Oglas je bil avtomatsko preveden. Možne so napake pri prevodu.
