Generator

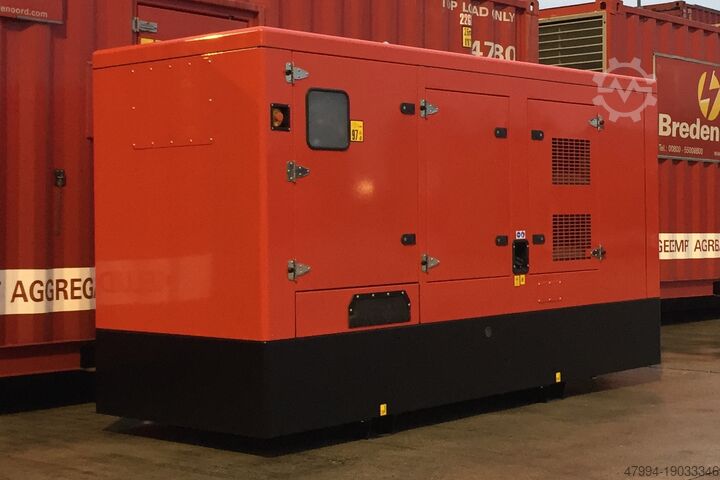

Bredenoord genset FPT/Iveco NEF67TM7 200/200 KVA aggr

The Bredenoord 200 KVA generator is a reliable and versatile solution for temporary and long-term power requirements in a wide range of environments. This genset is ideal for mobile use and complies with Stage V emission standards. The efficient FPT/Iveco engine, combined with a Stamford generator, delivers outstanding performance with low operating costs.

The generator is housed in a sound-insulated enclosure that ensures minimal noise emissions, making it perfect for use in noise-sensitive environments (super silent). The enclosure features thick, oil-resistant sound insulation and external sockets with circuit breakers for added safety.

With a 600-litre fuel tank, the generator offers an autonomy of up to 14 hours under continuous load. The system operates on diesel, HVO or GTL fuel, providing flexible fuel options.

Technical Specifications:
Lodpfxowf Nkcs Al Njhf
- Model: Bredenoord 200 KVA
- Nominal Power: 220 KVA
- Maximum Power: 220 KVA
- Engine: FPT/Iveco NEF67TM7
- Generator: Stamford brushless alternator (AVR)
- Output: 220 KVA
- Voltage: 230/400 V, 50 Hz
- Speed: 1500 rpm
- Noise level: 68 dB(A) at 7 metres
- Fuel tank: 600 litres
- Autonomy:
- 100% PRP: 14 hours
- 70% PRP: 18 hours
- Engine power: 160 KW
- Battery charger and engine pre-heater: Standard
- Control panel: Comap MRS16 (auto start/stop)
- Dimensions (L x W x H): 3.30 m x 1.20 m x 1.97 m
- Weight: 2409 kg
- Emission class: Stage V

Fuel consumption:
- 100% PRP: 42.1 L/h
- 70% PRP: 32.87 L/h
- 50% PRP: 24 L/h

Options:
- Engine pre-heater
- Battery charger
- 3-way fuel valve
- XXL fuel tank

Sound attenuation:
The generator is designed with optimised air intakes and special insulation materials to minimise noise. The sound insulation is reinforced with wool of varying thickness to dampen sound across a wide frequency spectrum, making it ideal for use in noise-sensitive areas.

Durability:
The enclosure is corrosion-resistant thanks to a coating tested for more than 2000 hours (C5I-H), guaranteeing a long service life even in the most challenging conditions.

Safety:
The generator is equipped with reinforced locks and stainless steel hinges. The doors are designed with a 20-degree bevel to prevent water accumulation and minimise oxidation.

Transport and Handling:
The generator is easy to move thanks to reinforced lifting eyes and steel beams, ensuring straightforward transport on construction sites. The design provides a stable and secure relocation without risk of damage.

Customisation:
The Bredenoord 200 KVA generator is available in various outputs from 20 KVA to 600 KVA. Customer-specific adaptations are possible, allowing the generator to be tailored to specific requirements and applications.

Certifications:
- CE certified
- Made in Europe

Fields of Application:
The generator is suitable for various sectors, including construction, industry and other areas where reliable and efficient power supply is required.
