Stroj za brizganje

Arburg 270C 400-70 e²

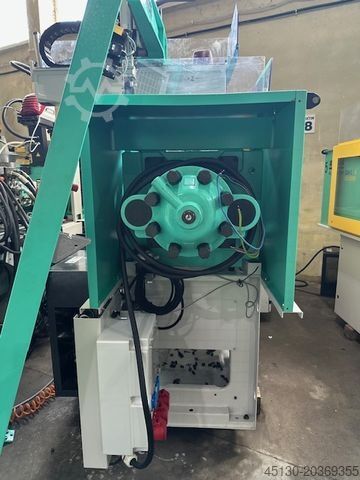

Arburg 270C 400-70 e² with Arburg Multilift Robot / Hybrid Machine
Year of manufacture: 2016

Injection Unit:
Screw diameter: 22 mm
Shot weight: 31 g
Injection pressure: 2000 bar
Metering volume: 34 ccm

Lhsdpfx Ahjxqx Tnj Djn
Clamping Unit:
Clamping force: 40 t
Tie bar spacing: 270x270 mm
Platen size: 446x446 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: SELOGICA – touchscreen

Additional equipment:
Hybrid machine: energy-efficient and very quiet
Euromap 67 interface
Robot interface
2 x air valves
1 x hydraulic core pull
Injection unit hardened – bimetallic
Main drive motor – servo motor with inverter control – energy saving
Proportional valve on injection unit – precise injection
Self-closing nozzle

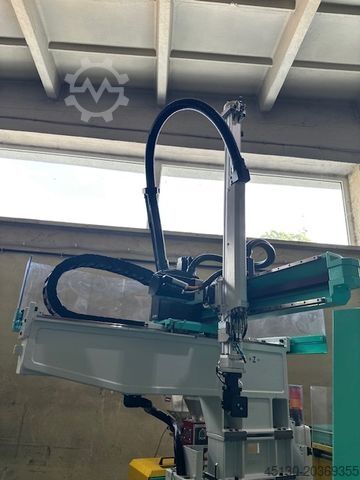

Arburg Multilift Select robot, 6 kg traverse
Year of manufacture: 05.2016
5-axis robot: 3 axes powered by electric servomotors; axes B and C
Travel distances (axes): X-600, Y-800, Z-1000
Robot supplied with adapter, conveyor, and safety enclosure
Purchase of robot and conveyor subject to surcharge

Dimensions:
Weight: 2210 kg
Length/Width/Height: 3.18 x 1.43 x 1.98 m

All machines offered are commissioned by our service technicians before sale.
It is possible to obtain a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
