Obrat za mešanje asfalta

Ammann UNIGLOBE 200

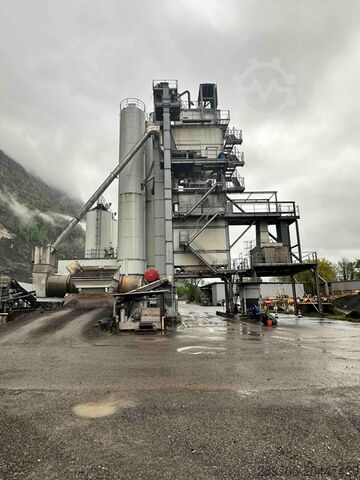

Asphalt Plant AMMANN UNIGLOBE 200

Year of manufacture: 2004
Capacity: 200 t/h (batch)
Total amount of produced asphalt mix: 725,000 t

- Mobile steel foundations -

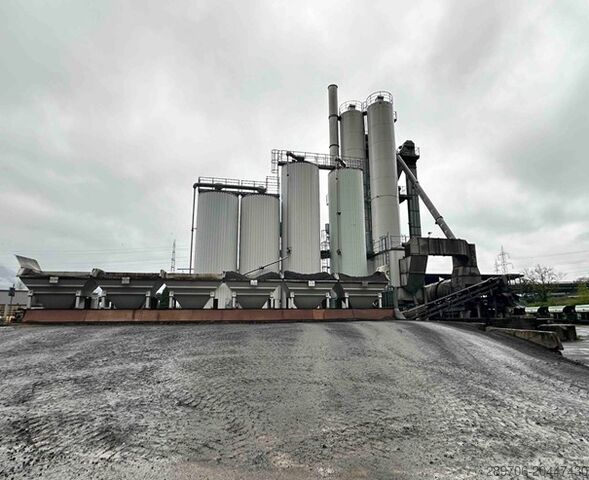

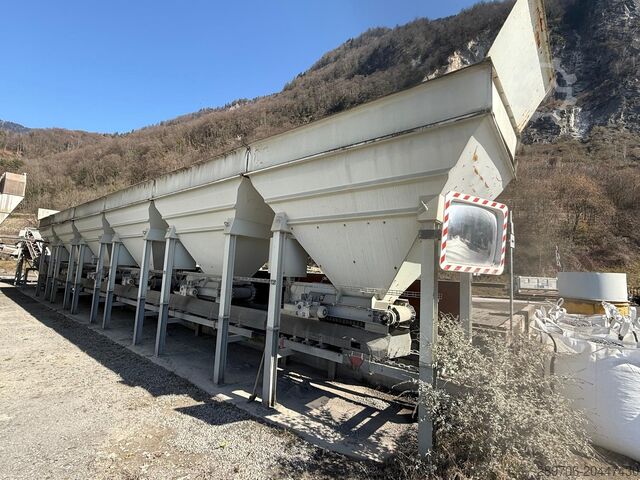

Pre-dosing Unit – Ammann 2004:
+ 6x bins (10 m³ each)
+ 6x extraction belts incl. drive units
+ Collecting/discharge conveyor incl. drive
+ Vibrator
+ Feeder belt

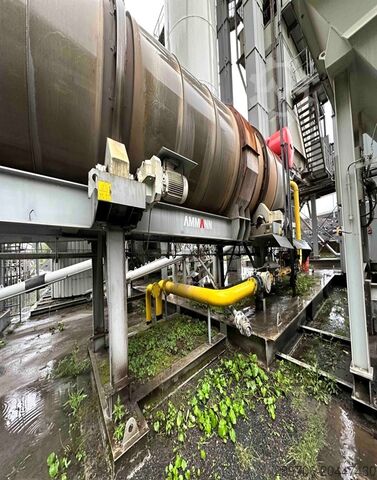

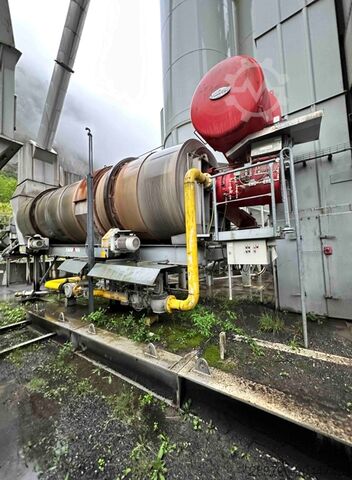

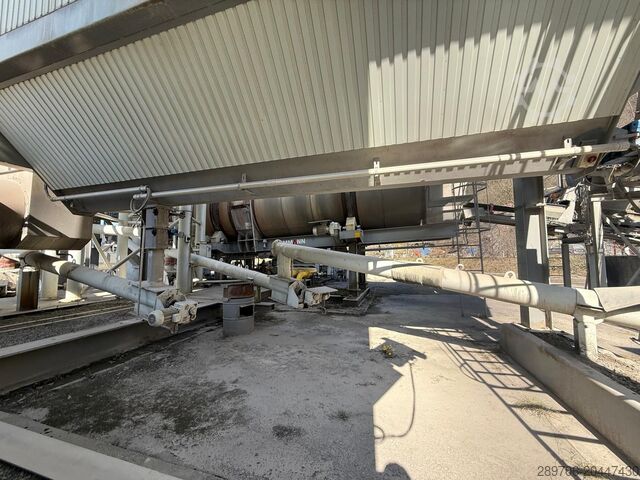

Dryer Drum – Ammann 2004:

Type: MT 2290 B3
Diameter: 2.2 m, Length: 9.0 m

Burner: Oertli Induflame AG
Burner for natural gas/light oil
Year: 2004
Type: AMB-SM-503-R-NEL-VL 870
Max. output: 18,600 MW

Dedusting Plant – Ammann AFA 2004:

AFA Filter System Ameco
Type: AFA RS 3 x 87.5/440-2.5 DuO, 48,000 Nm³/h
Exhaust gas volume: 48,000 Nm³/h

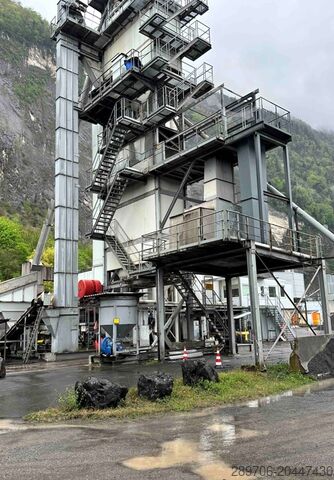

Mix Tower Ammann UNIGLOBE 200:

Hot Elevator
Type: KE II
Capacity: 170 t/h

Screen
Vibrating screen
Type: VA 1840-6
No. of fractions/screens: 6
Total screening area: 33.7 m²
Sand deck area: 5.6 m²
Drive: 2 x 4 kW

Hot mineral silo 56 t
Bypass compartment: 10 t
Fraction 1 (sand): 17 t
Fraction 2: 7 t
Fraction 3: 7 t
Fraction 4: 5 t
Fraction 5: 5 t
Fraction 6: 5 t

Continuous max. level sensors

Weighing Group

Mineral scale
Max. capacity: 3,000 kg
Bledpfxexuahho Abxsp

Filler scale
Max. capacity: 300 kg

Bitumen scale
Bitumen scale with bottom discharge
Max. capacity: 250 kg

Manual feed chute for additives

Viatop: Dosing for special additives

Dosing system for special additives in big-bags
Storage hopper for unloading big-bags
Useful capacity: 3 m³

Adhesion promoter addition

Mixer Group

Mixer, cold feed chute
Mixer MA 2-3.00 A incl. drive

Skip conveyor

Discharge silo integrated with mix tower
Mix material discharge silo INIGLOBAL 100 t
with direct truck loading nearby
Total capacity 100 t, including
Compartment 1: 45 t
Compartment 2: 45 t
Direct loading: 10 t
Oversize/overflow: 3 t

Compressed Air Supply
Screw compressor with air receiver
Capacity: 2.2 m³/min
Pressure: 10 bar
Tank volume: 1,000 l
Power: 15 kW

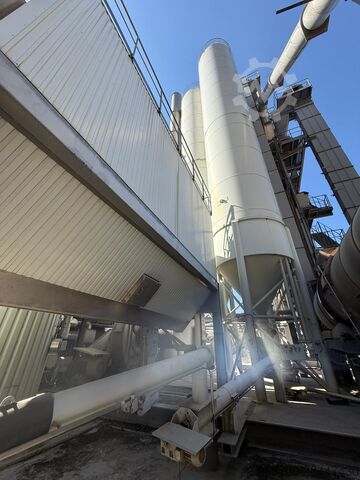

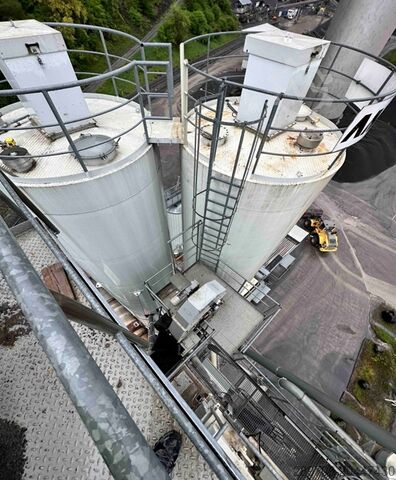

Filler Supply
External filler silo
Capacity: 2 x 80 m³ (filler tower)
Internal filler silo
Capacity: 2 x 60 m³ (filler tower)

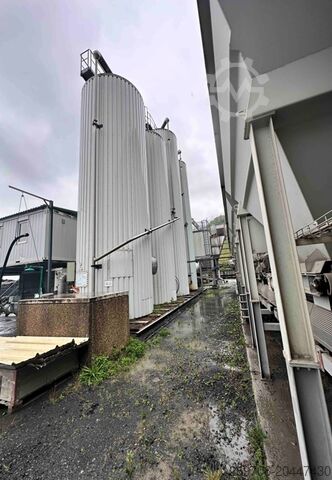

Bitumen Tanks
Capacity: 2 x 60 m³ (2004)
Bitumen tanks 1 x 70 m³ (2 x 35 m³) (2004)
Capacity: 2 x 70 m³ (2 x 35 m³) (2012)

Bitumen Pump Station

Control System
Microprocessor control AS 1

Control container

Welfare container

RC-COLD System to mixer
RC-doser m³
Chamber vibrator
Conveyor belt
Elevator for RC material

Details to follow!
